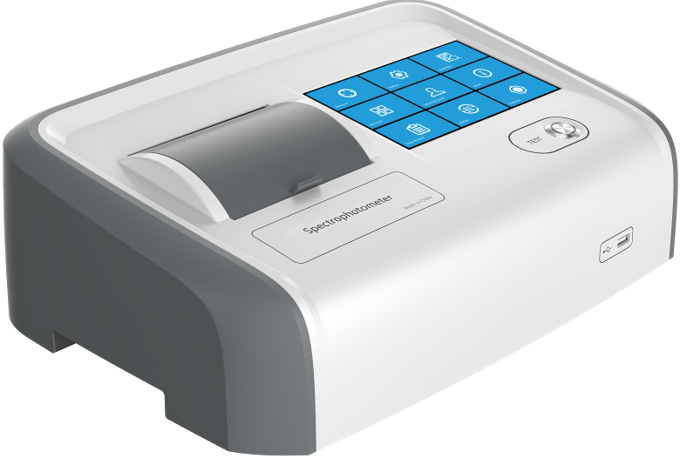

Benchtop liquid Spectrophotometer DS-816N

WeChat

copy Link

Facebook

CHNSpec Technology's DS-816N is a high-precision desktop liquid colorimeter with a spectral range of 360-780nm and a repeatability of ΔE*ab≤0.015. It features an intelligent calibration system, with a minimum sample volume of 1ml and a single measurement time of 1.2 seconds. Equipped with a 7-inch touchscreen for easy operation, it has over 30 built-in chromaticity indices and can store 100,000+ data entries, suitable for liquid detection in chemical, pharmaceutical and other fields.

DetailSupports

一、Product characteristics Ultra-widewavelength range 360-780nm

The wavelengthrange of the instrument is 360-780nm, which is higher than the spectral rangeof the human eye, extending the measurement range.


Morethan 30 chroma indicators

Instrumentbuilt-in platinum cobalt, Gardner, Saybolt, Chinese Pharmacopoeia, USpharmacopoeia, European pharmacopoeia chroma and other latest indicators,products are suitable for liquid chemicals, coatings, pharmaceuticals,cosmetics, petroleum, industrial oiland other fields.


Intelligentzero calibration technology is used to ensure data stability of 0.01

Withintelligent zero calibration technology, the measurement results are stable to0.01 repeatability even in the case of environmental changes.


Minimum sample request reduced to 1ml

With a moresophisticated optical design and precise control of the direction of lighttransmission, the minimum liquid request is reduced to 1ml, 34% less than theprevious generation, saving customers expensive samples. Compatiblespectrophotometer cutlery, no additional purchase or custom cutlery required.


he PTCheating module produces a constant temperature of up to 90°C

Suitable formeasuring easily solidified samples such as fat and wax, it can be heated up to90°C and maintained at temperature, sothat the sample can be tested in a liquid state.


The PTCheating module produces a constant temperature of up to 90°C

Suitable formeasuring easily solidified samples such as fat and wax, it can be heated up to90°C and maintained at temperature, sothat the sample can be tested in a liquid state.


7 inchtouch screen operation, clear display of measurement data

The instrumentadopts 7 inch touch screen, supports single machine and computer operation, andcan store more than 100,000 pieces of data.


Technical parameter

Product model	DS-816N
Measurement condition	d/0 (diffuse light source, 0 degree observation angle) (Compliant with standards: CIE No.15, ISO 7724/1, ASTM E1164, DIN 5033 Teil7, JIS Z8722 Condition c, GB/T 3555, ASTM D156, GB/T 6540, ASTM D1500, ASTM D1209, ASTM D5386, ASTM D6045, ASTM D6166, ASTM D1502)
Stand-alone operation	Support
Integrating sphere	Φ40mm，Avian-D Fully diffuse surface coating
Lighting source	CLEDs(Full band balanced Led light source）
Inductor	Dual optical sensor array sensor
Wavelength range	360-780nm
Wavelength interval	10nm
Half-band width	5nm
Measuring range	0~200%
Resolution	0.0001
Observer Angle	2°/10°
Observation light source	A,B,C,D50,D55,D65,D75,F1,F2,F3,F4,F5,F6,F7,F8,F9,F10,F11,F12,CWF,U30,U35,DLF,NBF,TL83,TL84,ID50,ID65,LED-B1,LED-B2,LED-B3,LED-B4,LED-B5,LED-BH1,LED-RGB1,LED-V1,LED-V4
Display	Pharmacopoeia color number, transmission map/data, sample chromaticity value, color difference value/map, pass/fail result, color deviation, color simulation, historical data color simulation, manual input of standard sample, test report
Measuring time	≤1.5s
Measuring optical path	Standard: 10mm glass cuvette, 50mm glass cuvette (optional 33mm and 100mm glass cuvette)
Color space	CIE Lab,LCh,CIE Luv,XYZ,Yxy,Transmissivity, Hunter Lab Munsell，MI,CMYK
Color difference formula	ΔEab,ΔECH,ΔEuv,ΔEcmc(2:1),ΔEcmc(1:1),ΔE94,ΔE*00
Other indicators	Pharmacopoeia (Chinese Pharmacopoeia, European Pharmacopoeia, American Pharmacopoeia)，WI(ASTM E313-20，ASTM E313-73，CIE,ISO2470/R457，Hunter，Taube Berger Stensby)，YI(ASTM D1925，ASTM E313-20，ASTM E313-73)，Tint(ASTM E313-20)，Allochromic index Milm，APHA，Hazen,Pt-Co（Platinum-cobalt index），Gardner（Gardner index），Iron cobalt index，Saybolt（Seibert index），ASTM Color，EBC（Beer color），ICUMSA Color(Sugar chroma)
Repeatability*	Transmittance: standard deviation ≤0.08% Chroma value: ΔE*ab≤0.01 standard deviation, maximum ≤0.03
Inter instrument agreement	ΔE*ab ＜ 0.2
Heating function	Yes
Heating temperature range	From ambient temperature to 90℃
Audit trail	Yes (as required by FDA and CFDA)
Special function	Intelligent zero calibration
Screen size	7 inch touch screen
Store data	Over 100,000 pieces of data
Software support	ColorExpert，Color QC2
