DH-13 Series Portable Hazemeter
    • 1/5

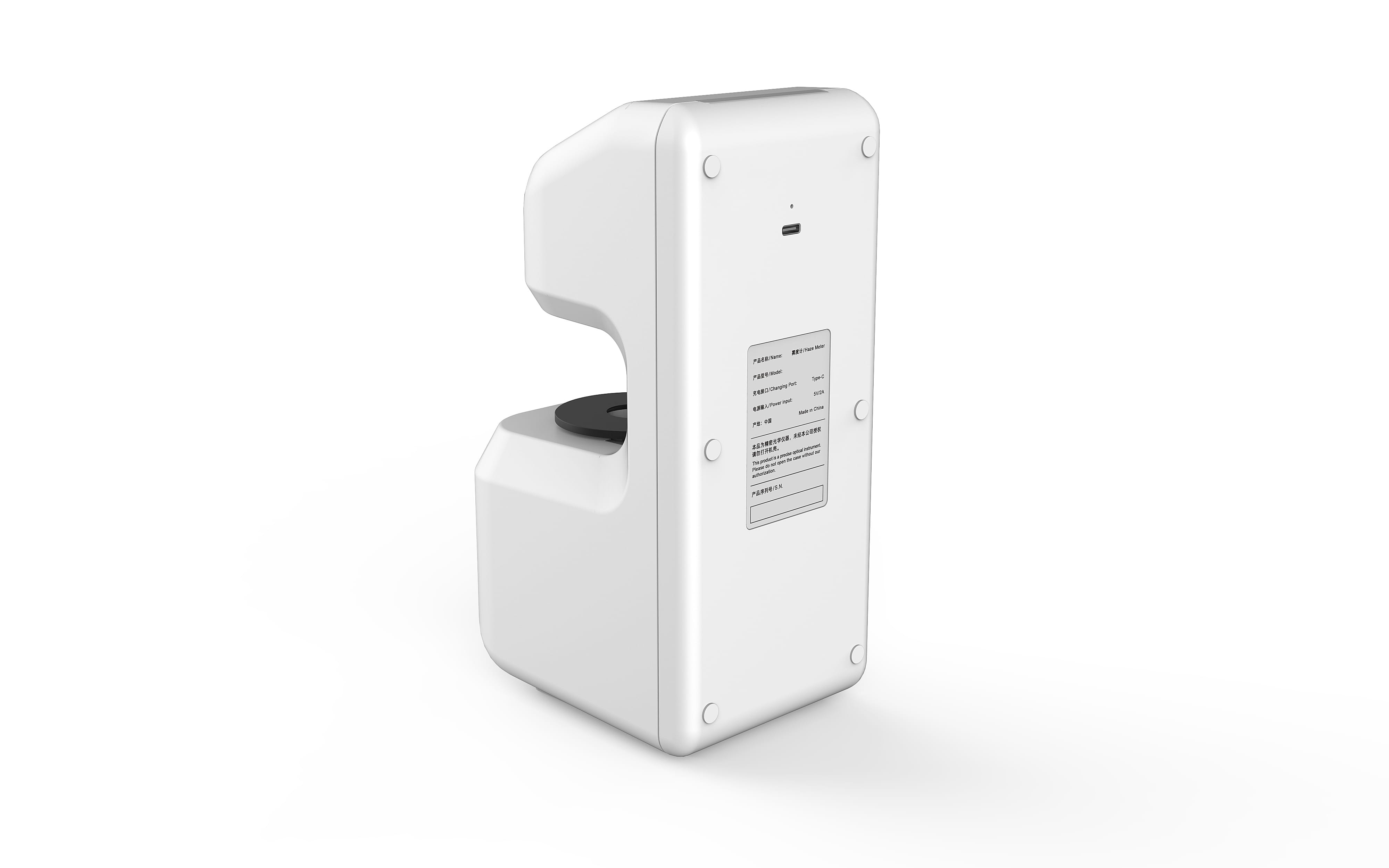

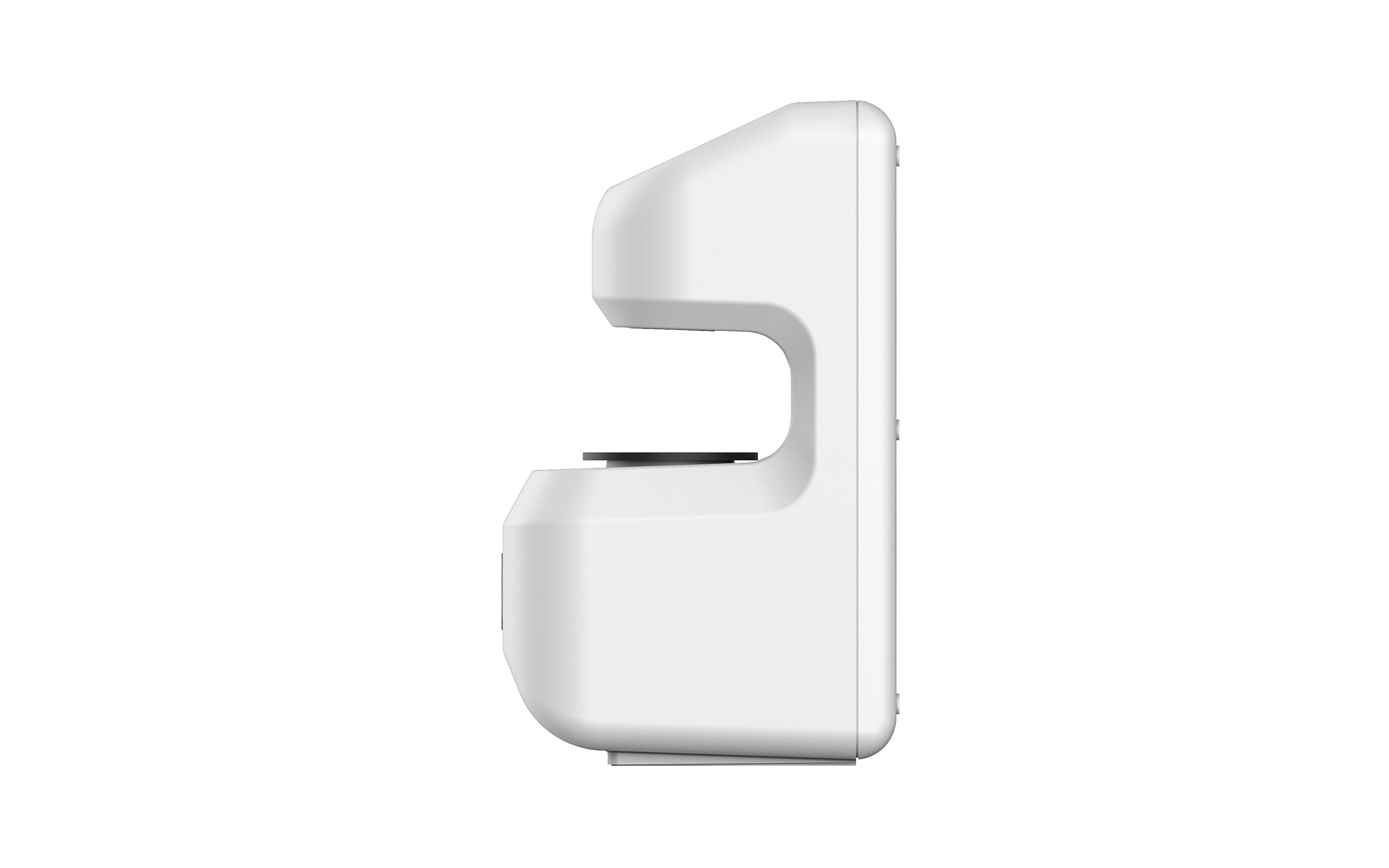

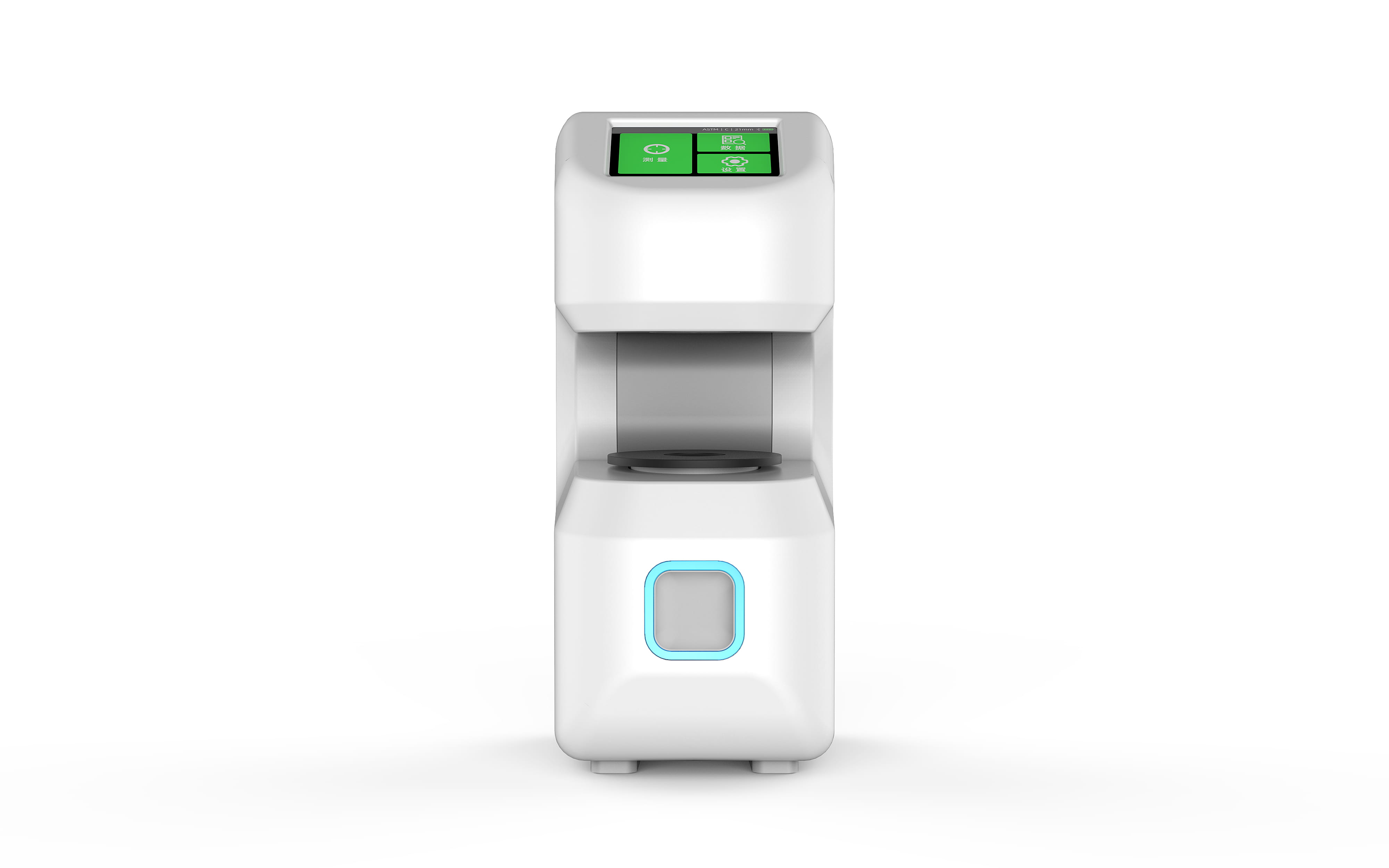

DH-13 Series Portable Hazemeter

WeChat
copy Link
Facebook
X
LinkedIn
Pinterest
The design concept of Color Spectrum Handheld Haze Meter DH series is to be compact and portable, which is convenient for users to measure the haze and transmittance anytime and anywhere.DH-12/13 supports lithium battery power supply, which realizes the haze measurement from the era of landline to the leap of mobile era. Cell phone applet connected to the instrument operation, wireless control, in addition to ensure the stability of the sample measurement process, but also to enable the measurement data to achieve cloud storage, follow the account, not lost. Caliber switching method has also been upgraded, magnetic switching, convenient and simple. Although the instrument is made small, but still does not reduce the functions and characteristics of the desktop, handheld haze meter still retains the desktop to follow the standards, measurement of light sources.

Compact size, handheld measurement is more convenient
Excellent stability, repeatability of ≤ 0.02
DH-12/13 support lithium b
DetailSupports

Model

DH-10

DH-12

DH-13

Light Source

CIE-A,CIE-C,CIE-D65

Standards

ASTM D1003/D1044,ISO 13468/ISO14782,JIS K 7105,JIS K   7361,JIS K 7136,GB/T 2410-08

Parameter

ASTM-haze/transmittance,

Optical density value

ASTM & ISO -haze/transmittance,Optical density value

Spectral Response

CIE The spectrum function Y/V(λ)

Geometry

0/d

Test Aperture

21mm

21mm, 15mm

21mm, 15mm, 12mm

Test Range

0-100%

Resolution

0.1%

0.01%

Repeatability

0.1

0.05

0.02

Sample Size

Thickness ≤40mm

Display

2.8 inches touch screen

Data Storage

Mass Storage

Interface

USB

Power

DC 5V/2A

Rechargeable Lithium Battery

Working Temperature

5~40℃, Relative humidity   80% or below (at 35 ° C), no condensation

Storage Temperature

-20 ℃ ~ 45 ℃, relative humidity 80% or below (at 35 ℃),   no condensation

Size

133mm x 99mm x 224mm

(length X width X height)

Weight

1.13 kg

Optional

Test Aperture with custom made size

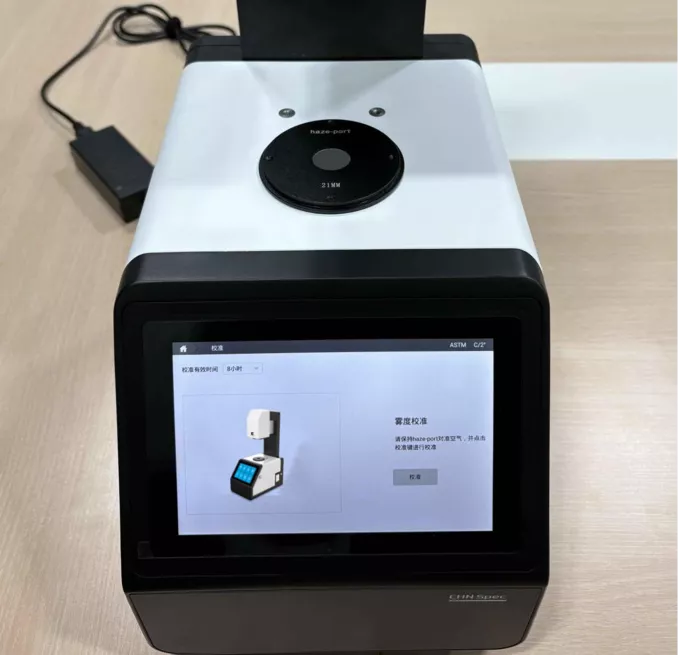

CHNSpec THC Series Haze Meters: Precision Optical Detection Empowering Material Quality Upgrades
