DS-700C Series 45/0 Professional Benchtop Spectrophotometer
Repeatability accuracy up to: dE*ab≤0.02
Inter-stage difference: dE*ab≤0.2
Provide 30+ kinds of measurement parameters, 40 kinds of evaluation light source
Provide 12 kinds of caliber to adapt to different applications
Provide camera framing positioning, UV UV measurement, connecting cell phone measurement, color matching software and other functions
Name | Spectrophotometer DS-700C-1 | Spectrophotometer DS-700C-2 | Spectrophotometer DS-700C-3 |
Geometry* | 45/0 | ||
Repeatability** | dE*ab≤0.025 | dE*ab≤0.02 | |
Inter-Instrument Agreement*** | dE*ab≤0.25 | dE*ab≤0.2 | |
Display Resolution | 0.01 | ||
Measuring aperture | 4 stable and smart： Φ11mm，Φ6mm ▽11mm，▽6mm | 8 stable and smart： Φ11mm，Φ6mm，Φ3mm，1*3mm ▽11mm，▽6mm，▽3mm，▽1*3mm | 12 stable and smart： Φ11mm，Φ10mm，Φ6mm，Φ5mm，Φ3mm，1*3mm ▽11mm，▽10mm，▽6mm，▽5mm，▽3mm，▽1*3mm |
Measurement index | Spectral reflectance,CIE-Lab,CIE-LCh,HunterLab,CIE-Luv,XYZ,Yxy,RGB, chromatic aberration(ΔE*ab,ΔE*cmc,ΔE*94,ΔE*00),whiteness(ASTM E313-00,ASTM E313-73,CIE,ISO2470/R457,AATCC,Hunter,Taube Berger Stensby),Yellowness(ASTM D1925,ASTM E313-00,ASTM E313-73),Blackness(My,dM),Color fastness,Staining fastness,Tint(ASTM E313-00),Color densityCMYK(A,T,E,M),Metamerism indexMilm,Munsell,covering power,Force share(Color Strength) | ||
| Printing quality index | Color Density CMYK(A,T,E,M) | Color Density CMYK(A,T,E,M), Dot Area, Dot Area Increase, Overprint Rate, Printing Contrast, Gray Scale, Tone Error | |
Illuminants | A,B,C,D50,D55,D65,D75,F1,F2,F3,F4,F5,F6,F7,F8,F9,F10,F11,F12,CWF,U30,U35,DLF,NBF,TL83,TL84,ID50,ID65,LED-B1,LED-B2,LED-B3,LED-B4,LED-B5,LED-BH1,LED-RGB1,LED-V1,LED-V2 | ||
Light Source | Full-band balanced LED light source | Full-band balanced LED light source+UV | |
Measurement and observation mode | Camera | ||
Calibration | Intelligent automatic calibration | ||
Software support | Andriod,iOS,Windows,WeChat,App | ||
Accuracy | Metrology Level I | ||
Observer Angles | 2°，10° | ||
Sphere Size | 40mm | ||
Standards | CIE No.15,GB/T 3978,GB 2893,GB/T 18833,ISO7724-1,ASTM E1164,DIN5033Teil7 | ||
Spectroscopic method | Raster | ||
Sensor | Array sensor | Dual row high precision CMOS array sensor | |
Wavelength interval | 10nm | ||
Wavelength range | 400-700nm | ||
Reflectance Range | 0-200% | ||
Reflectivity resolution | 0.01% | ||
Measurement time | About 2 seconds | About 1 seconds | |
Interface | USB，Bluetooth | ||
Screen | Full color screen，3.5 inches | ||
Battery capacity | Rechargeable, 8000 times continuous tests,7.2V/3000mAh | ||
Light source Lifetime | 10 years, 1 million tests | ||
Language | Chinese, English | ||
Storage | Instrument: 100 standard samples and 10000 samples; APP: mass storage | ||
*Diffuse lighting/8 ° reception, includingspecular light/removing specular light
**When a white tile is measured 30 times at 5-secondsinterval with MAV
***BCRA Series II, averagemeasurement of 12 tiles
Measurement scenario examples
|
|

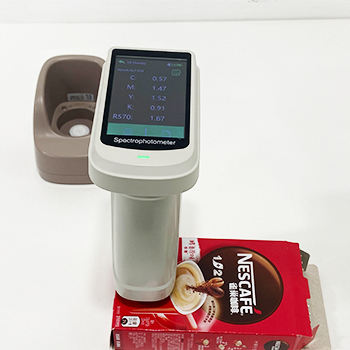

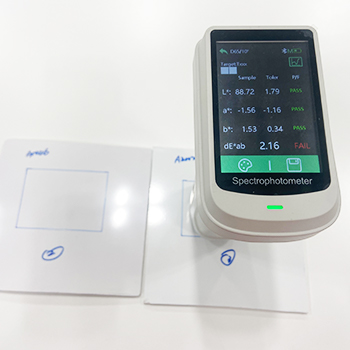

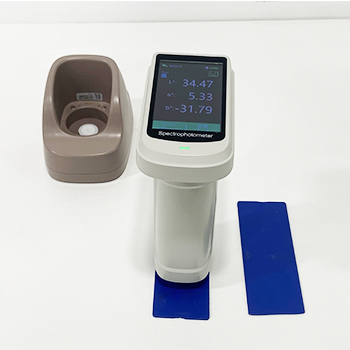

| Spectrophotometer DS-700C-2 measures the color difference of plastic plates | Spectrophotometer DS-700C-2 measures color density of food packaging |
|
|

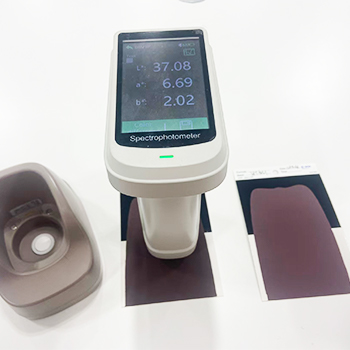

| Spectrophotometer DS-700C-3 measures the color difference of coatings |
