FS-50 Series Multispectral Camera
    • 1/1

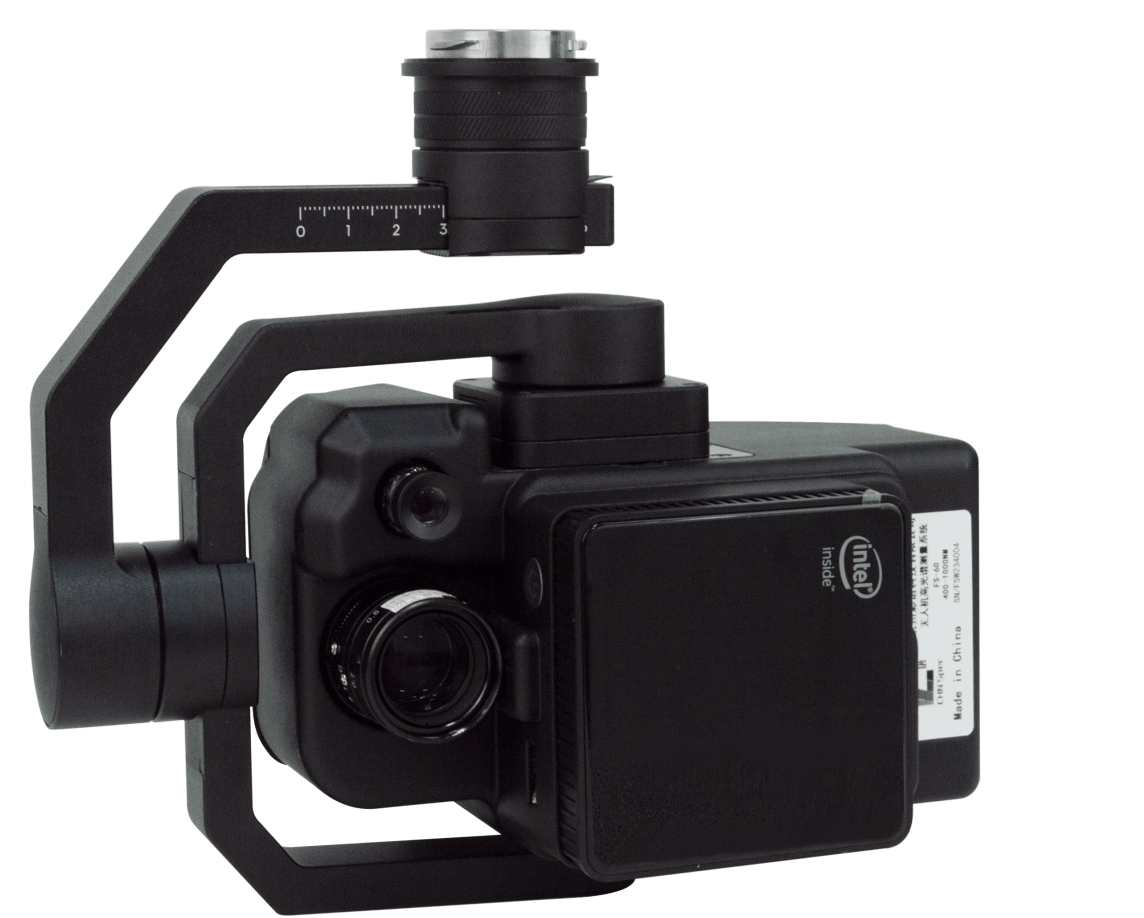

FS-50 Series Multispectral Camera

WeChat
copy Link
Facebook
X
LinkedIn
Pinterest
FigSpec FS-50 Family is a new-generation UAV-based multispectral camera from Color Spectrum Technology for DJI M350/M300RTK flight platform with 30-480 spectral channels and 2K resolution.

It meets the needs of applications in industries such as precision agriculture, military defence and homeland security, disaster prevention and forestry monitoring, river and lake ecology, and target identification.

Translated with www.DeepL.com/Translator (free version)
DetailSupports
model
FS-50/30FS-50/60FS-50/90FS-50/120FS-50/150FS-50/180
Number of spectral channels306090120150180
Spectral channel wavelength

400-1000nm

output one wavelength

every 20nm

400-1000nm

output one wavelength

every 10nm

400-1000nm

output one wavelength

every 6.66nm

400-1000nm

output one wavelength

per 5nm

400-1000nm

output one wavelength

per 4nm

400-1000nm

output one wavelength

per 3.33nm

spectrum resolution ratio /Half-wave width3.5nm3.5nm3.5nm2.5nm2.5nm2.5nm
Space resolution1920
sampling rate128 line/S
imaging sensor1/1.1 inch CMOS
effective pixels1920
Shutter typeglobal shutter
digitalizing bit12bit
Visualfield25.36°
ground resolution2.8cm@h120m
Covering width54m@h120m
optical windowHigh transmittance optical glass window
Main engine size≤155*95*119mm
Main engine weight≤840g
Installation/power supply portX-Port
Workloss45w
picture format12bit.SPE.spe(compatible withenvithird party analysis software such as envi）
Data storage space512SSD
application softwareFIGSPEC UAV,FIGSPEC Merage puzzle software，FIGSPEC Studion image analysis software
photography methodreal-time collection
