FS1A Series-Hyperspectral Camera (Line Scan)
    • 1/2

FS1A Series-Hyperspectral Camera (Line Scan)

WeChat
copy Link
Facebook
X
LinkedIn
Pinterest
The FS1A hyperspectral camera of CHNSpec Technology covers the visible light to short-wave infrared spectral region. With 300 to 1200 spectral channels and a 2.5nm high resolution, it combines push-scan imaging and ROI functions to achieve a frame rate of 128Hz across the entire spectral band. Precisely adapted to the detection of printing color differences, the identification of textile defects, and hyperspectral analysis in the microscopic field, it provides efficient data support for industrial quality control and scientific research exploration.
DetailSupports

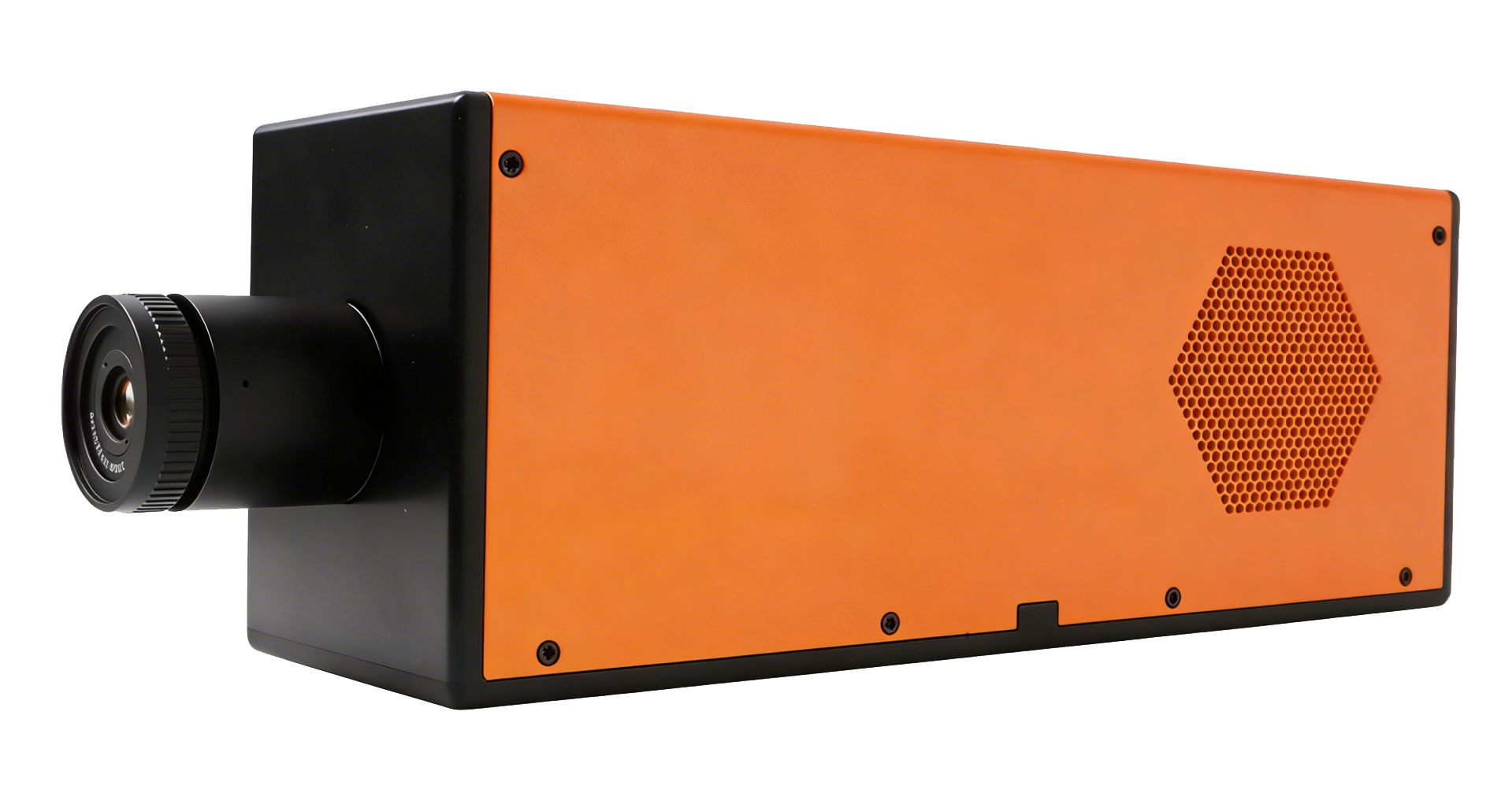

Hyperspectral camera FS1A


Short-wave Near-Infrared (SWIR):

  • Spectral Range: 900-2500 nm, with a wavelength resolution better than 10 nm, supporting up to 250 spectral channels

  • Applications: Widely used in composition analysis, material identification, machine vision, and agricultural product quality assessment

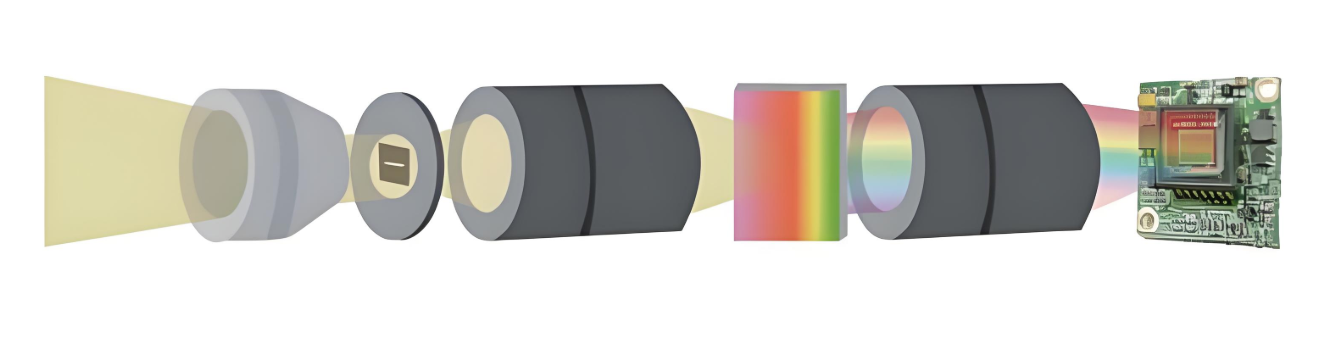

Measurement Principle

1A 4.png


Typical Application

1A 5.png


Technical Parameters

Spectral

Range

900-2500nm

Dispersion Device

Tranmission

Transmission Grating

Number of

Spectral Channels

≥250

Number of

Spatial Channels

≥640

Spectral Sampling

Interval

≤6.5nm

Spectral Resolution

（FWHM）

≤10nm
F-Number F/2.5

Detector

Type

MCT

Detector

Size

≥9.6×7.68mm

Pixel

Size

≥15um×15um

Effective

Bit Depth

≥14bits

Lens Focal

Length

25mm

Field of

View

21.7°@f=25mm

Instantaneous

Field of View

0.59mrad@f=25mm

Cooling

Method

Stirling Cooling

Effective

Slit Length

≥9.6mm

Slit

Width

≤25um

Frame

Rate

200fps

Operating

Temperature

0-40°C

Storage

Temperature

0-50°C

Camera

Interface

USB 3.0 or Gigabit Ethernet

Application

Software

FIGSPEC SCAN2.0，FIGSPEC Studio Imaging Analysis Software

Data

Format

Compatible with spe, hdr, scp formats
