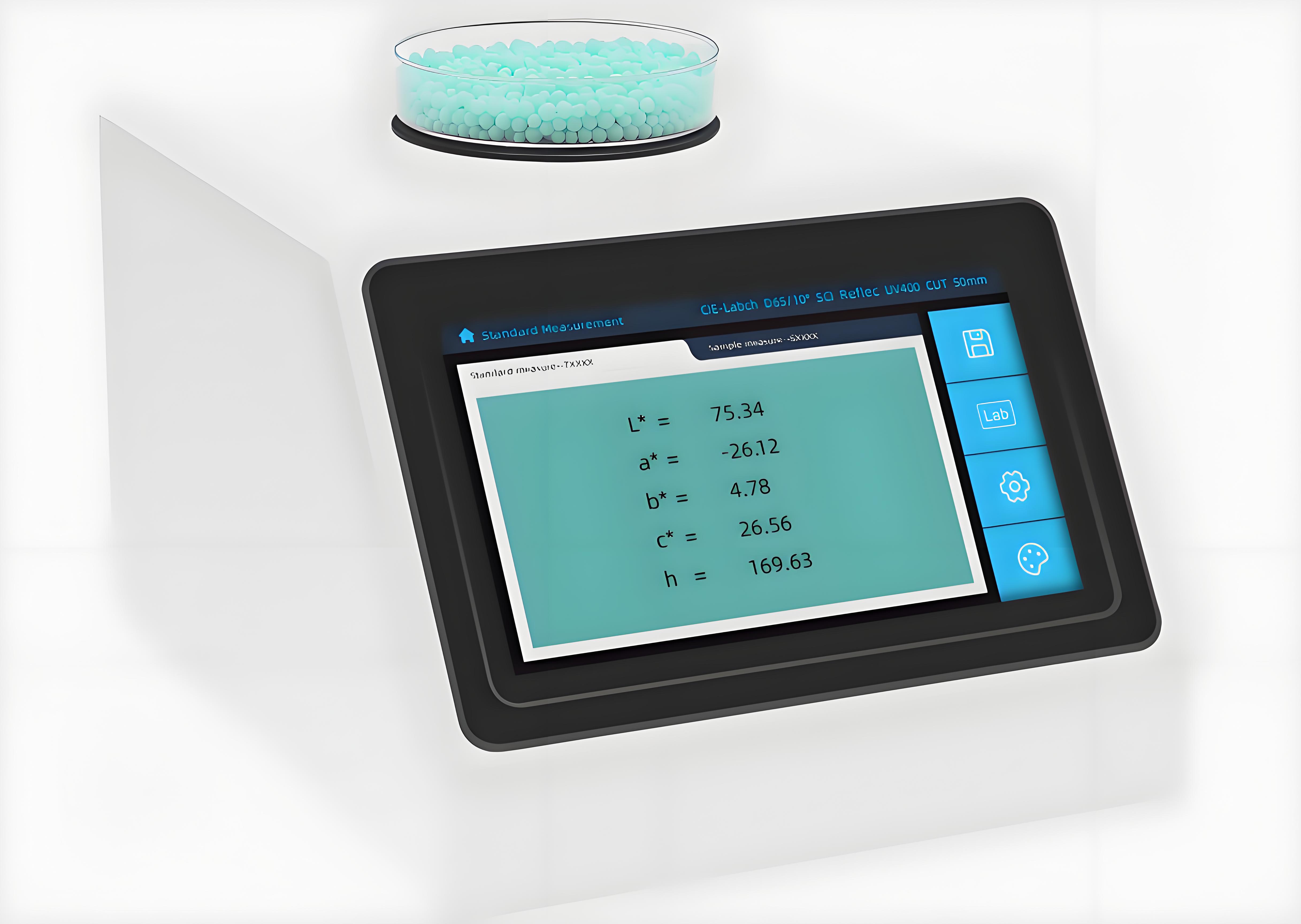

50mm Large-Aperture Spectrophotometer DS-807

WeChat

copy Link

Facebook

CHNSpec DB-807 spectrophotometer is specially designed for uneven samples such as powder and color masterbatches. With a 50mm large measurement aperture and a fully sealed test port as its core advantages, it addresses the industry pain points of large measurement deviations and easy dust intrusion in small-aperture instruments. The instrument supports multi-color space parameter measurement such as CIE Lab and XYZ, accurately capturing the basic color values of samples and color difference data of different batches. It can quickly produce results in 1 second and store 10,000 pieces of data, meeting the needs of precise analysis in the laboratory and efficient quality inspection on the production line. Whether it is powder formula research and development, batch calibration of color masterbatches, or color control in downstream processing links such as injection molding and extrusion, it can provide stable and reliable color data support, helping enterpri

DetailSupports

1.Product Features

50mm ultra-large measurement aperture, better suited for testing uneven samples
Light source lifespan of 2 million measurements, no fear of light source damage
Data storage up to 10,000 records, store as much as you need

Fully sealed test port, prevents particles and dust from entering the instrument.

2.Technical Parameters

Model	DS-807
Illumination Method	D/8, including specular reflection (SCI)
Integrating Sphere Diameter	100mm
Light Source	Full-spectrum balanced LED
Wavelength Range	400-700nm
Reflectance Measurement Range	0–200%, resolution 0.01%
Wavelength Interval	10nm
Measurement Aperture	50mm
Observation Light Sources	A,B,C,D50,D55,D65,D75,F1,F2,F3,F4,F5,F6,F7,F8,F9,F10,F11,F12,CWF,U30,U35,DLF,NBF,TL83,TL84,ID50,ID65,LED-B1,LED-B2,LED-B3,LED-B4,LED-B5,LED-BH1,LED-RGB1,LED-V1,LED-V2,LED-8
Standard Observers	2° and 10° Standard Observers
Measurement Time	Approx. 1 second
Color Spaces	CIE LAB,CIE LUV,LCh,Hunter Lab,Yxy,XYZ,Musell,s-RGB,βxy
Chromaticity Indexes	WI (ASTM E313-20, ASTM E313-73, CIE, AATCC, Hunter, Taube, Berger Stensby), YI (ASTM D1925, ASTM E313-20, ASTM E313-73), Tint (ASTM E313-20), Metamerism Index (Milm), Color Fastness to Crocking, Color Fastness to Change, ISO Brightness, R457, A Density, T Density, E Density, M Density, Opacity, Tinting Strength, Intensity
Color Difference Formulas	ΔEab, ΔECH, ΔEuv, ΔEcmc, ΔE94, ΔE00, ΔEab (Hunter), 555 Shade Classification
Repeatability	Standard deviation ΔE*ab ≤ 0.03 (Condition: after warm-up calibration, measure the white tile 30 times at 3s intervals, average value)
Inter-instrument Error	ΔE*ab ≤ 0.4 (Based on average measurement of 12 BCRA II color tiles)
Maximum Data Storage	10,000 records
Dimensions	202 × 264 × 152mm
Weight	Approx. 3kg
Power Supply	100~240V 50/60HZ
Measurement Modes	Single measurement, average measurement
Light Source Lifetime	10 years / 2 million measurements
Display	7-inch IPS full-view LCD
System Languages	Simplified Chinese, English
Data Interface	USB
Operating Temperature Range	5–40°C, relative humidity ≤80% (at 35°C), non-condensing
Storage Temperature Range	-20–45°C, relative humidity ≤80% (at 35°C), non-condensing
Standard Accessories	Petri dish, black cavity, white calibration plate, data cable, power cable
