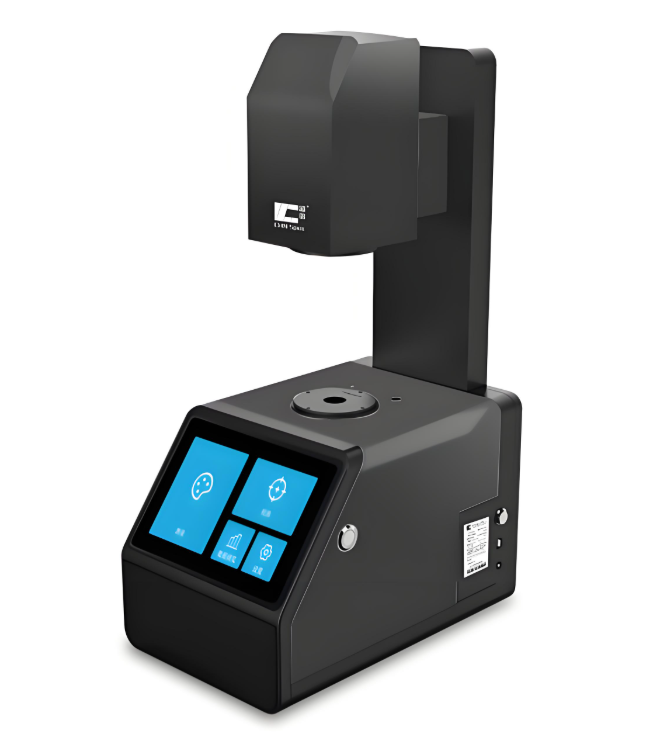

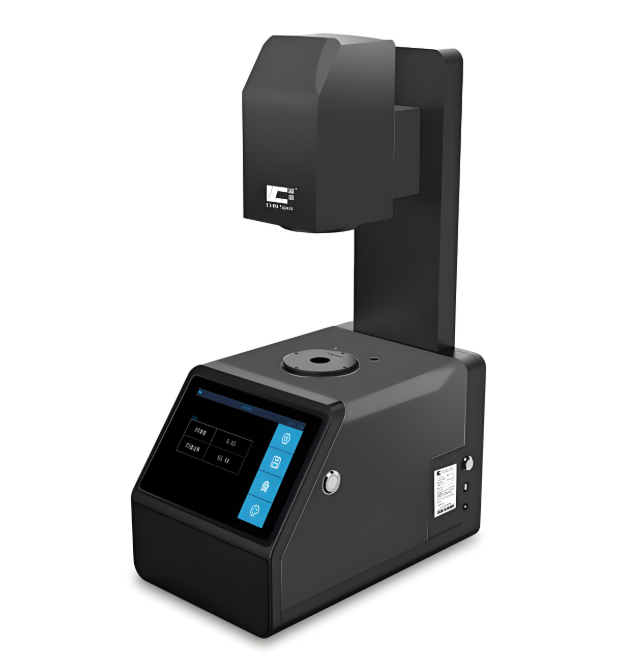

TH-07 series touch screen haze meter
I. Product Features
Standard 0/d optical structure: More accurate test data
Meet three haze standards: GB/T 2410, ASTM D 1003/1004, ISO13468/14782
Ultra-long lifespan: The lifespan of the light source is 5 years and 5 million times
Precise measurement: Resolution 0.01, repeatability 0.05
Massive storage: A single machine can store 20,000 sets of data
Touch operation: Capacitive touch screen, smoother operation
Clear display: 7-inch IPS full-view screen
Data Management: Standard PC software is provided, supporting data export and report printing
II. Technical Parameters
Product model | TH-05 | TH-06 | TH-07 |
Light source | CIE-A、CIE-C | CIE-A、CIE-C、CIE-D65 | |
Follow the standards | ASTM D1003/D1044，ISO13468/ISO14782，JIS K 7105，JIS K 7361，JIS K 7136，GB/T 2410-08 | ||
Measurement parameters | Haze and transmittance under ASTM standards | Haze and transmittance under both ASTM and ISO standards | |
Spectral response | CIE spectral function Y/V(λ) | ||
Optical path structure | 0/d | ||
Measurement diameter | 21mm | 21mm，7mm | |
| Range | 0-100% | ||
| Resolution | 0.1% | 0.01% | |
| Repeatability | 0.1 | 0.08 | 0.05 |
| Sample size | Thickness ≤145mm | ||
| Display | 7-inch IPS full-view LCD screen | ||
| Touch | Capacitive touch screen | ||
| Store data | 10,000 values | 20,000 values | |
Light source lifespan | Five million times in five years | ||
| Interface | USB interface | ||
Powe r supply | DC 12V/3A | ||
Working temperature | 5 to 40℃, relative humidity 80% or lower (at 35℃), no water vapor condensation | ||
Storage temperature | -20 to 45℃, relative humidity 80% or lower (at 35℃), no water vapor condensation | ||
| Volume | Length X width X height: 310mmX215mmX540mm | ||
| Weight | 6kg | ||
Standard configuration | PC management software(HAZE QC) | ||
| Optional | Measuring fixtures, haze standard plates, custom diameter plates | ||
III. Application Fields
Video Demonstration
TH- 07 Series Touch Screen Haze Meter Operation Video
