In modern fields like precision optical measurement, remote agricultural monitoring, material sorting, and cutting-edge scientific research, hyperspectral cameras have become a key tool bridging the gap between 'visual capture' and 'material composition analysis.' Unlike traditional RGB cameras that only capture three broad bands—red, green, and blue—hyperspectral imaging technology can collect continuous and highly detailed spectral data, giving each pixel in space a unique 'spectral fingerprint.'
This article will start from the core optical principles and dive into the main current hyperspectral imaging technology architectures, helping researchers and engineers make informed technical choices based on their application scenarios.
I. Core Optical Principles: From Photons to the 'Data Cube'
The core task of hyperspectral imaging is to construct a three-dimensional data cube (Hypercube). This cube has two spatial dimensions (X, Y coordinates) and one spectral dimension (λ wavelength).

When ambient light or artificial light sources shine on an object's surface, the object absorbs, reflects, or scatters light of different wavelengths. Inside a hyperspectral camera, dispersive elements like gratings or prisms, or tunable filter components, precisely separate the mixed light by wavelength and project it onto a high-sensitivity image sensor such as a CMOS or InGaAs chip. Finally, the system uses algorithms to combine spatial information with spectral information, making what you see equal what you measure.
II. Pros and Cons of Mainstream Hyperspectral Imaging Architectures

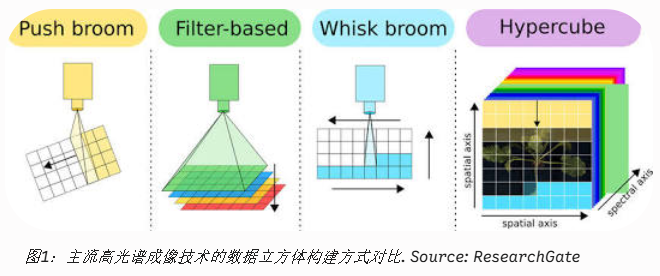

To capture a 3D data cube on a limited 2D sensor, optical engineers have developed different spectral division and scanning architectures. Among them, pushbroom and snapshot methods are the most representative.
1. Pushbroom / Line-scanning Imaging
Pushbroom technology is line imaging. The camera's light entrance is a very narrow slit, capturing only one line of the object at a time. After passing through the slit, the light is dispersed spectrally by an internal grating system in a direction perpendicular to the slit and projected onto a 2D detector. Thus, one dimension of the detector records spatial line information, while the other dimension records the wavelengths at each point along that line.
Advantages:
Extremely high spectral resolution: Using a grating for dispersion, the number of spectral channels can reach hundreds, with very fine wavelength resolution (usually a few nanometers).
High spatial resolution: Spatial pixels along the slit depend entirely on the sensor’s resolution, making it suitable for precise qualitative and quantitative analysis.
Disadvantages:
Requires motion scanning: Overall imaging relies on relative movement between the camera and the target (like conveyor belts, drone flights, or motorized stages). If the movement speed doesn't match, geometric distortion can easily occur.
2. Snapshot Imaging
Snapshot imaging aims to capture the complete 3D data cube in a single exposure. It usually uses pixel-level micro/nano-optical filter arrays (Fabry-Perot filters) integrated on the sensor surface, allowing different pixels to only receive specific wavelengths of light.
Advantages:
Ultra-high temporal resolution: No mechanical scanning or movement is needed. Like taking a regular photo, you get the result instantly.
Motion-blur resistant: Great for real-time monitoring of dynamic targets, like drones in flight or live biological imaging.
Disadvantages:
Trade-off between spatial and spectral accuracy: Since the total sensor pixels are fixed, there must be a compromise between spatial and spectral resolution. This usually results in fewer spectral channels and lower spatial clarity compared to pushbroom cameras.
III. Technology Selection Guide
| Dimension / Technical Architecture | Pushbroom Imaging | Snapshot Imaging |
| Spectral Resolution | Extremely high (more than 200 channels available) | Medium (usually a dozen to several dozens of channels) |
| Spatial Resolution | High (line-scan pixels are fully retained) | Relatively low (spatial pixels are shared across spectral bands) |
| Working Mode | Requires relative motion (conveyor belt / scanning stage) | Static exposure, no movement required |
| Application Scenarios | Fine laboratory research, industrial sorting, airborne remote sensing | Real-time dynamic monitoring, handheld portable detection, in-vivo field research |
IV. Cutting-Edge Applications and Industry Solutions
When it comes to real-world implementation, choosing equipment that combines high performance with stability is key for both research and industrial projects. In the field of color measurement and photoelectric detection, CHNSpec leverages its deep optical engineering expertise to offer hyperspectral imaging systems that cover multiple bands.

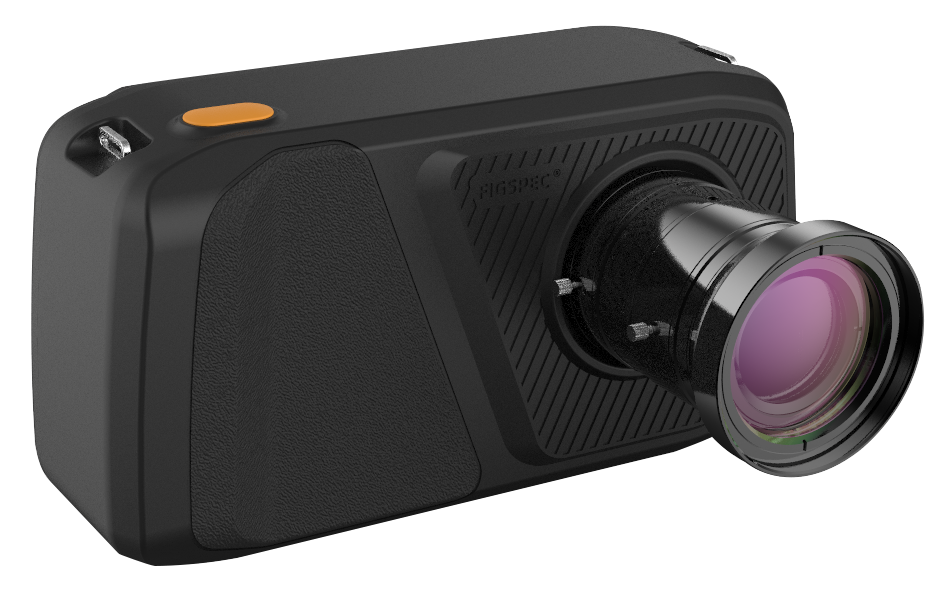

CHNSpec’s hyperspectral cameras have undergone extensive optimization in their core optical paths:
High dynamic range and low noise: Using advanced dispersive spectral configurations, they effectively boost light throughput, allowing the system to capture high signal-to-noise ratio spectra even in low-light or highly reflective complex industrial settings.
Full multi-band coverage: Their product line spans visible to near-infrared (VNIR) and short-wave infrared (SWIR), accurately capturing subtle feature signals—from changes in crop chlorophyll and chemical distribution to detecting foreign materials.
Integrated hardware and software ecosystem: Supported by a robust spectral analysis algorithm ecosystem, these systems integrate with machine vision, helping engineers quickly build classification and inversion models, thus shortening the R&D cycle from data collection to value realization.
Whether in research labs seeking ultimate spectral purity or smart manufacturing plants aiming for high throughput, a precisely adapted optical architecture is the cornerstone of any project. Understanding the physical nature of push-broom and snapshot methods, combined with mature industrial optical solutions like those from CHNSpec, can dramatically accelerate your hyperspectral application development.
