CR Series Pocket 45‑0 Spectral Colorimeter CR‑10 CR‑20 CR‑30 for Industrial Portable Color QC
1.Instrument Features
1．Automatic calibration, one-key measurement, get results in 1s
2．Adopt 45°/0 geometry that is more in line with the color evaluation
by the human eye
3．Can be used standalone or connect to App
4．Software supported: Android, iOS, Windows QC software
5．Magnetic calibration box
6．Lipstick-size, more convenient to carry
2.Technical parameter
Model | CR-10(No screen) | CR-20(With screen) | CR-30（with screen） | |
Geometry | 45/0 | |||
Measure index
| RGB,Hex,Lab,LCh,HSB,LRV,CMYK(A,T,E,M) ，XYZ,Yxy,ΔE*ab,ΔE*cmc,ΔE*94,ΔE*00 | RGB,Hex,Lab,LCh,HSB,LRV,Spectral reflectance,HunterLab,CIE-Luv, XYZ,Yxy,Color Difference (ΔE*ab,ΔE*cmc,ΔE*94,ΔE*00),Whiteness (ASTM E313-00,ASTM E313-73,CIE,ISO2470/R457,AATCC,Hunter,TaubeBerger Stensby),Yellowness(ASTM D1925,ASTM E313-00,ASTM E313-73), Blackness（My,dM）,Staining Fastness,Color Fastness, Tint(ASTM E313-00),Color Density CMYK(A,T,E,M),Metamerism Index Milm,Munsell,Opacity,Color Strength | ||
Light Source | LED (Full Wavelength Balanced LED Light Source) | |||
Measure Aperture | 4mm | |||
Wavelength Interval | 10nm | |||
Wavelength Range | 400-700nm | |||
Repeatability | ΔE≤0.1(Measure white tile 30 times with 5 seconds interval) | ΔE≤0.05(Measure white tile 30 times with 5 seconds interval) | ||
Measurement Accuracy | 0.1 | 0.01 | ||
Measure Time | 1.0s | |||
Interface | USB，Bluetooth | |||
Illuminants | A,B,C,D50,D55,D65,D75,F1,F2,F3,F4,F5,F6,F7,F8,F9,F10,F11,F12,CWF,U30,U35,DLF,NBF,TL83,TL84 | |||
Observer | 2°，10° | |||
Display Screen |
No screen
| IPS Full Color Screen（135*240,1.14inch） | ||
Battery | Rechargeable,5,000 continuous tests
| Rechargeable,10,000 continuous tests | ||
Language | Chinese ,English | |||
Calibration | Automatic Calibration | |||
Software supported | Andriod,IOS,Windows | |||
Weight | About 75g | |||
Size | Diameter：33mm，Height：84mm | |||
Storage | APP mass storage | |||

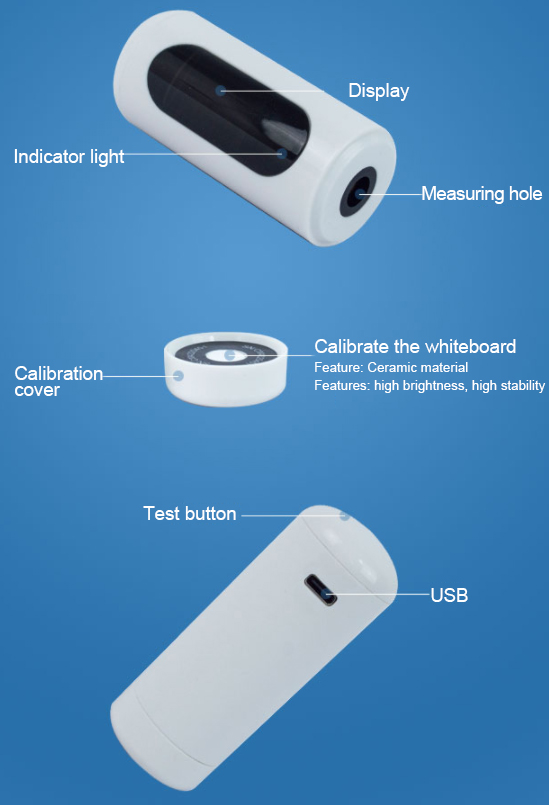

3. Appearance structure
4. Choose accessories
The item code | Name | Picture |
1.51.01.0076-0 | Powder measuring box |
|
3.07.04.7006-0 | Powder measuring box - clear glass slide |
|
1.51.01.0016-0 | Ceramic test plate |
|
3.07.04.2003-0 | 800 quartz cylindrical colorimetric dish (outer dimension φ32*41mm, wall thickness 1.5mm) |
|
