A Guide to Selecting Polarimeters for Universities and Research Institutes: Differentiating Choices for Teaching Experiments vs. Research Projects

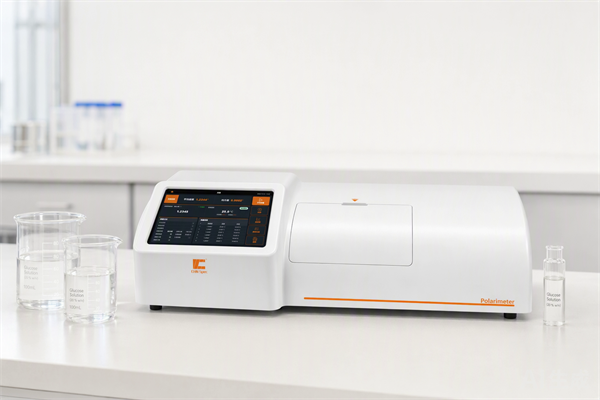

Universities and research institutes often handle both teaching experiments and scientific research projects, with sample conditions varying significantly across different laboratories. The CHNSpec DS-P900T series of fully automatic, high-speed polarimeters offers three distinct versions, tailored to meet the specific requirements of various research and educational settings.

For undergraduate teaching laboratories, polarimeters are primarily used in chemistry courses to measure the optical rotation and specific rotation of standard solutions, such as sucrose or amino acids. Since these samples are consistently clear and transparent, there is no need for temperature control or complex user account management. The core requirements here are ease of operation and stable, reliable results, helping students grasp the phenomenon of optical rotation. For this environment, the entry-level model is an ideal choice. It features a 10.1-inch touchscreen for intuitive operation, making it easy for students to use. It supports five measurement modes—optical rotation, specific rotation, concentration, sugar content (Brix), and custom calculations—covering the full spectrum of standard teaching experiments. It also includes multi-point automatic calibration for convenient periodic verification by instructors, and a USB port for exporting experimental data. As teaching laboratory samples are typically clear and highly transmissive, the specifications of the entry-level model are well-suited for such coursework.

For general research groups—such as those synthesizing chiral compounds—where product solutions are transparent and measurements are conducted at room temperature (e.g., for characterizing physical properties in research papers), the entry-level model may suffice, provided the laboratory maintains a stable ambient temperature. However, as research often involves unknown samples—which may occasionally be colored or opaque—it is advisable to opt for the mid-range model if the budget allows, as it provides greater performance headroom.

The mid-range model is recommended for research groups that frequently engage in the following types of work: first, studies on the optical properties of chiral substances that require temperature control (supported by a 10–60°C temperature control module); second, projects involving deeply colored products with low light transmission; and third, laboratories that implement a quality management system, requiring distinct user accounts and electronic signatures to maintain research records. The mid-range model offers a minimum resolution of 0.0001°, temperature control precision of ±0.1°C, and the ability to measure samples with a transmittance as low as 0.03%. It also supports custom calculation formulas for various scientific conversions and comes equipped with temperature-controlled sample tubes. When should you choose the high-end model? If your research group frequently prepares dark-colored extracts or colored chiral synthetic products—samples with very low light transmittance—the mid-range model (which has a lower limit of 0.03% transmittance) may prove insufficient. In such cases, the high-end model is the better choice; it offers a lower transmittance limit of 0.01% and superior zero-point repeatability, making it ideal for the precise analysis of dark-colored samples.

When selecting equipment for academic research, it is also essential to consider the necessary accessories. If you plan to conduct temperature-dependent experiments, ensure that the system includes a temperature-controlled polarimeter cell. Regardless of the model, you will also need a standard quartz calibration cell to perform regular, multi-point automatic calibrations, which ensures the reliability of your research data—a prerequisite for publishing physical property data in scientific papers.

In university procurement, two common issues often arise: teaching laboratories may purchase high-end models that exceed their actual requirements, leading to unnecessary expenditure; conversely, research groups might opt for entry-level models, only to find later that they cannot analyze the colored samples they have synthesized. The key to making the right choice lies in distinguishing between teaching and research needs, anticipating the types of samples you might encounter in the future, and ensuring the instrument has sufficient performance headroom.

For primarily teaching-oriented tasks involving transparent samples, an entry-level model is sufficient. For routine chiral synthesis research—which may require temperature control or the occasional analysis of colored samples—a mid-range model is appropriate. For research involving a large volume of dark-colored samples, a high-end model is required. Given that research projects often evolve, laboratories should—budget permitting—opt for a system with some performance headroom to accommodate future experimental samples.
