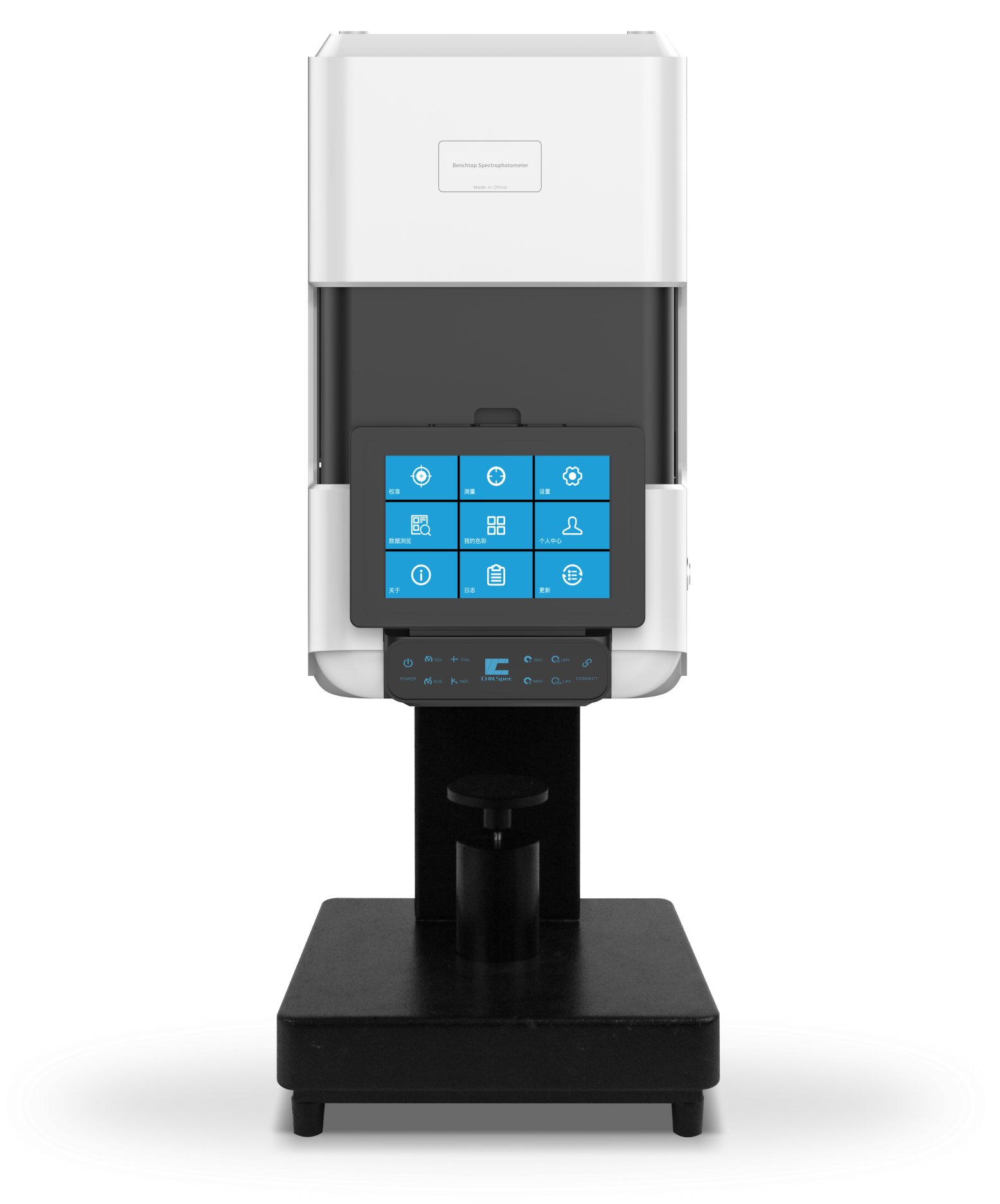

Benchtop spectrophotometer DS-36D
Design of dual optical path based on differential spectroscopy engine and 1nm grating
Automatic calibration technology to ensure long-term consistency of fluorescence measurements
Ultra-high accuracy and excellent inter-Instrument agreement guaranteed
Benchtopspectrophotometer DS-36D
DS-36D：Repeatability 0.01，Inter-InstrumentAgreement 0.15
Equippedwith two types of lighting sources: pulse xenon lamp and LED
37standard light sources, 40+measurement indicators
Automaticrecognition of four apertures switchin Temperatureand humidity calculation compensation function

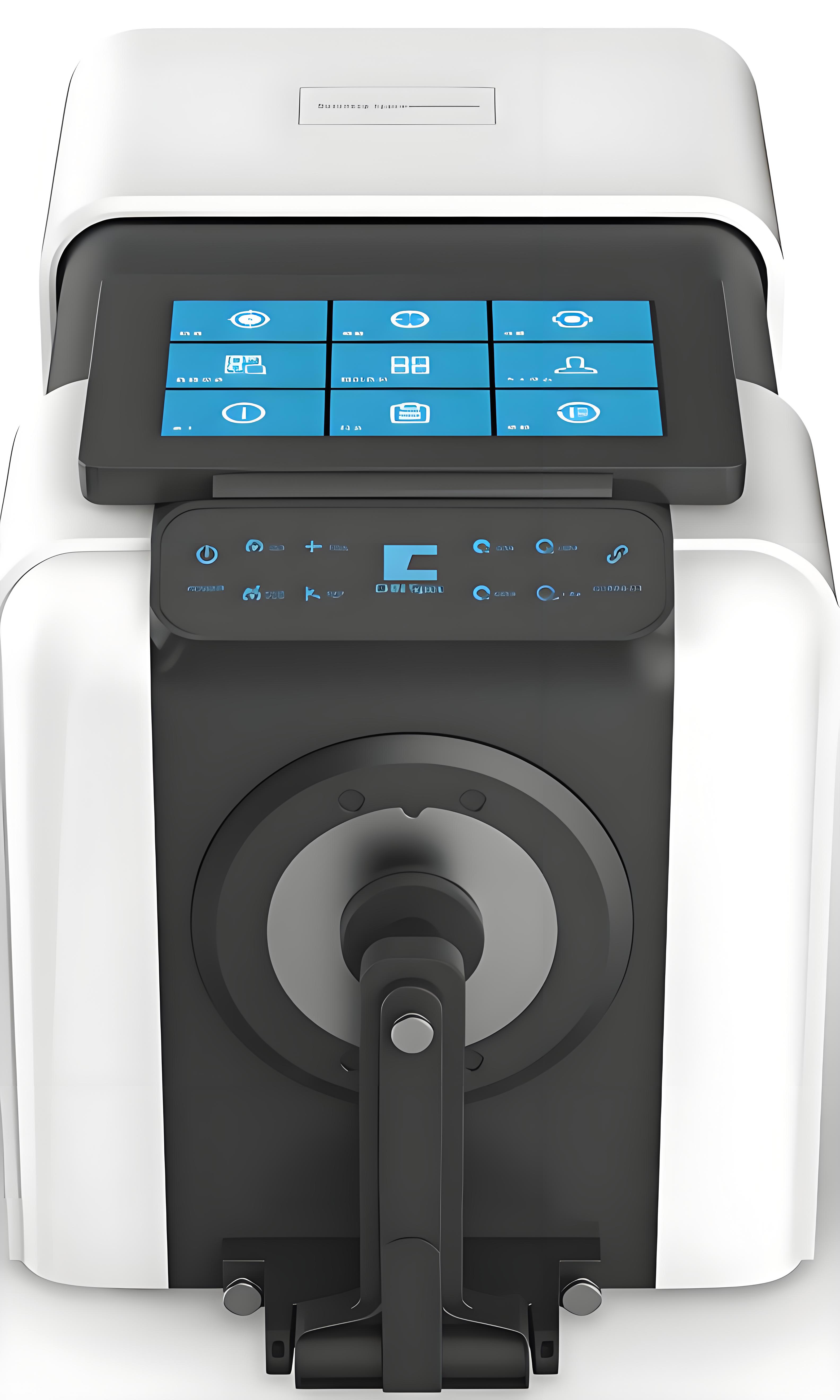

7-inchtouch screen, Android operating system
Providepowerful ColorExpert computer data management software
Cansave data to the cloud and follow the account to prevent loss
SupportPC end export or printing of data test reports Supportcolor matching software to provide more formula inspiration and improve colormatching efficiency
Differential spectrum engine improves overall measurement performance
The light input of the sensor is increased by 50%, the spectral resolution is increased by 30%, the signal-to-noise ratio is higher, the repeatability, the difference between the instrument, and the data is highly consistent with the data of the standard instrument, the inter-instrument agreement can reach to 0.08, and the repeatabili0ty can reach to 0.005. The relevant technologies are protected by
Double optical path design improves repeatability accuracy
repeatability accuracy dE*ab≤0.01
The dual optical path design monitors the energy fluctuation of the light source while measuring the sample signal, reduces interference during measurement, obtains higher measurement stability, and improves the measurement repeatability index of the instrument to dE*ab≤0.01. The high standard of measurement speed, accuracy, stability and inter-station difference is guaranteed. The relevant technologies are protected by Chinese invention patents and American invention patents.
Innovative 1nm resolution grating spectroscopy technology
Innovation is the soul of CHNSpec. After nearly 10 years of dedicated research, the grating combined array sensor made by the innovative MEMS process makes the color measurement more accurate on the basis of 1nm spectral resolution, once again leading the industry innovation direction and greatly improving the technical performance of the product. The relevant technologies are protected by Chinese invention patents.
Excellent inter-instrument agreement：dE*ab≤0.15，
High repeatability accuracy：dE*ab≤0.01，
ensure accurate data transfer between factories
Self-developed fluorescence calibration technique
Automatically adjust the UV intensity, and ensure that the instrument value is highly consistent with the reference value when measuring the fluorescent material.
High precision automatic calibration
Advanced automatic calibration technology greatly improves long-term repeatability of instruments. Under constant temperature, the dE*ab of day 1 and day 30 can still reach 0.01. At any temperature change from 0℃ to 40℃, dE*ab can reach less than 0.1.
Repeatability curve of temperature change from 0 ℃ to 40 ℃
Long-termrepeatability curve at constant temperature
Easily measure samples of many shapes with a variety of measuring apertures
Four test calibers, free to switch
Support measurement in reflection mode: solid, powder, non-transparent liquid
Support measurement in transmission mode: glass, film, transparent liquid
Configurehigh-definition preview camera
The clarity of the camera has been significantly upgraded, from the original 400dpi to 1400dpi. When observing the sample, the clarity has been improved by 350% and brightness calibration algorithm has been used to truly restore the color of the ultra dark sample.
Previous generation clarity
（The color is slightly dark and blurry）
DS-36D clarity
（Bright and high-definition color）
Support for simultaneously saving sample data and images
Recording image information while measuring data
Obtain more sample related information
Technical Parameter
| Benchtopspectrophotometer | |
| Model | DS-36D |
| Lighting/measuring conditions | Reflection: d/8 (diffuseillumination, 8° direction reception) |
| SCI（Contains specular reflected light）/ SCE（not contain specular reflected light）measure at same time. Compliance standards: CIE No.15, GB/T 3978, GB 2893, GB/T 18833, ISO7724/1, DIN5033 Teil7, JIS Z8722 Condition C, ASTM E1164, ASTM-D1003-07 | |
| Transmission: d/0 (diffuseillumination, vertical reception) | |
| Sensor | Differential spectrum engine |
| Spectroscopic method | Concave grating |
| Integrating sphere diameter | 152mm |
| Wavelength range | 360nm-780nm |
| Wavelength interval | 10nm |
| Half-wave width | 1.6nm |
| Reflectance measurement range | 0-200%，resolution0.01% |
| Lighting sourc | Pulsed xenon lamps and LED |
| Ultraviolet measurement | Includes UV, 400nm cutoff,420nm cutoff, 460nm cutoff |
| Measuring time | Singlemode <2s |
| Lighting/measuring calibers | XLAV Φ25.4mm/Φ30mm；LAVΦ15mm/Φ18mm；MAVΦ8mm/Φ11mm；SAVΦ3mm/Φ6mm Users can customizethe calibre, and the calibre switch is automatically recognized Transmission：Φ17mm/Φ25mm |
| Transmission measurementspecification | Sampleheight and thickness: height is not limited, thickness ≤50mm |
| Long-term repeatability | XLAV chroma value: standard deviation ΔE*ab within 0.1 (0℃-40℃ arbitrary temperature change) XLAV chroma value: standard deviation ΔE*ab 0.01 or less (under constant temperature conditions, the white correction plate is measured every hour within 24 hours) |
| Repeatability | ΔE*ab≤0.01， Spectralreflection/transmittance ≤0.1% |
| Inter-Instrument Agreement** | XLAVΔE*ab 0.15 |
| Standard observer | 2° and 10° |
| Viewing light source | A,B,C,D50,D55,D65,D75,F1,F2,F3,F4,F5,F6,F7,F8,F9,F10,F11,F12,CWF,U30,U35,DLF,NBF,TL83,TL84,ID50,ID65,LED-B1,LED-B2,LED-B3,LED-B4,LED-B5,LED-BH1,LED-RGB1,LED-V1,LED-V2 |
| Language | SimplifiedChinese, English, Traditional Chinese, Russian, Spanish, Portuguese, Japanese,Thai, Korean, German, French, Polish |
| Display content | Spectral data, Spectrogram, chromaticity data, chromaticity Data, chromaticity map, Pass/Fail judgment, Simulation color, Color evaluation, fog, liquid chromaticity, Color bias |
| Color space | CIELAB,CIE LUV,LCh,Hunter Lab,Yxy,XYZ,Musell,s-RGB,βxy |
| Chroma index | WI(ASTM E313-20,ASTM E313-73,CIE,ISO2470/R457,AATCC,Hunter,Taube,Berger Stensby),YI(ASTM D1925,ASTM E313-20,ASTM E313-73),Tint(ASTM E313-20),Isochromatic index Milm, color fastness, color changing fastness,ISO brightness,R457,A density,T density,E density,M density,APHA/Hazen/Pt-Co(platinum-cobalt index),Gardner(Gardner Index),Saybolt(Seibert Index),Astm color, fog, total transmittance, covering power, force, intensity |
| Color difference formula | ΔE*ab,ΔE*CH,ΔE*uv,ΔE*cmc,ΔE*94,ΔE*00,ΔEab(Hunter),555color tone classification |
| Storage | 8GB |
| Screen size | 7-inch capacitive touch screen |
| Audit Trail | Yes (according to FDA and CFDArequirements) |
| Operating system | Android |
| Power source | Dcregulated power supply |
| Operating temperature and humidity | 5 ~ 40°C, relative humidity 80%(35°C) below no condensation |
| Storage temperature and humidity | -20 ~ 45°C, relative humidity 80%(35°C) below no condensation |
| Accessories | Power adapter, USB cable, transmission fixture, software U disk, black cavity, white board, green board,30mm aperture, 18mm aperture ,11mm aperture, 6mm aperture, support table,cuvette |
| Optional accessories | Heating transmission jig (including control circuit), vertical bracket, pneumatic jacking rod (including control circuit), small sample holding accessories, reflection cupping plate (non-removable), fiber test box, film jig, micro transmission jig, rod box, European standard plug, American standard plug |
| Port | RS-232、USB、USB-B、Bluetooth |
| Camera positioning | Ultra HD camera（1400dpi） |
| Automatic calibration | √（Can greatly improve the long-term repeatability of theinstrument） |
| Fluorescence calibration | √（Can automatically adjust the UV intensity, and ensure that the value of the instrument is highly consistent with that of other imported instruments when measuring materials containing fluorescence） |
| Brightness calibration | √（Through the brightness calibration algorithm, the realcolor of ultra-dark samples is restored） |
| Others | The instrument can be measuredsideways, up and down (using accessories); Automatic temperature and humiditycompensation function; PC side software save sample image function |
※ Afterinstrument calibration, the white correction plate was measured 30 times at 5 second intervals to measure the standard deviation of the result in XLAVcaliberBased on 23°C, the averagevalue of XLAV aperture measurement of 12 swatches ofBCRA Series is measured
