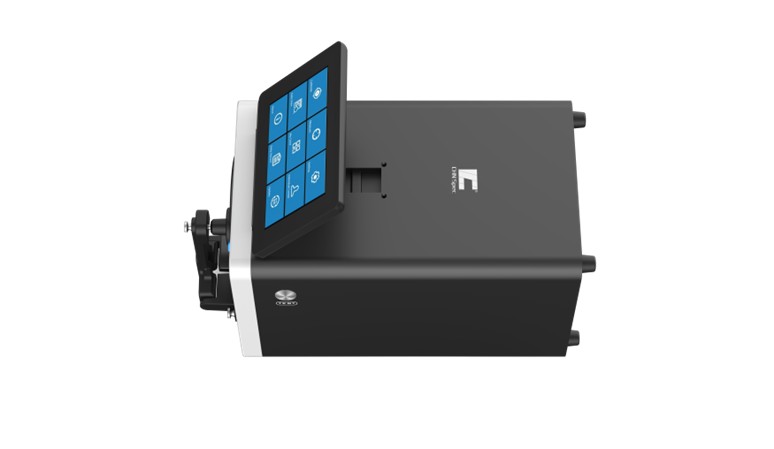

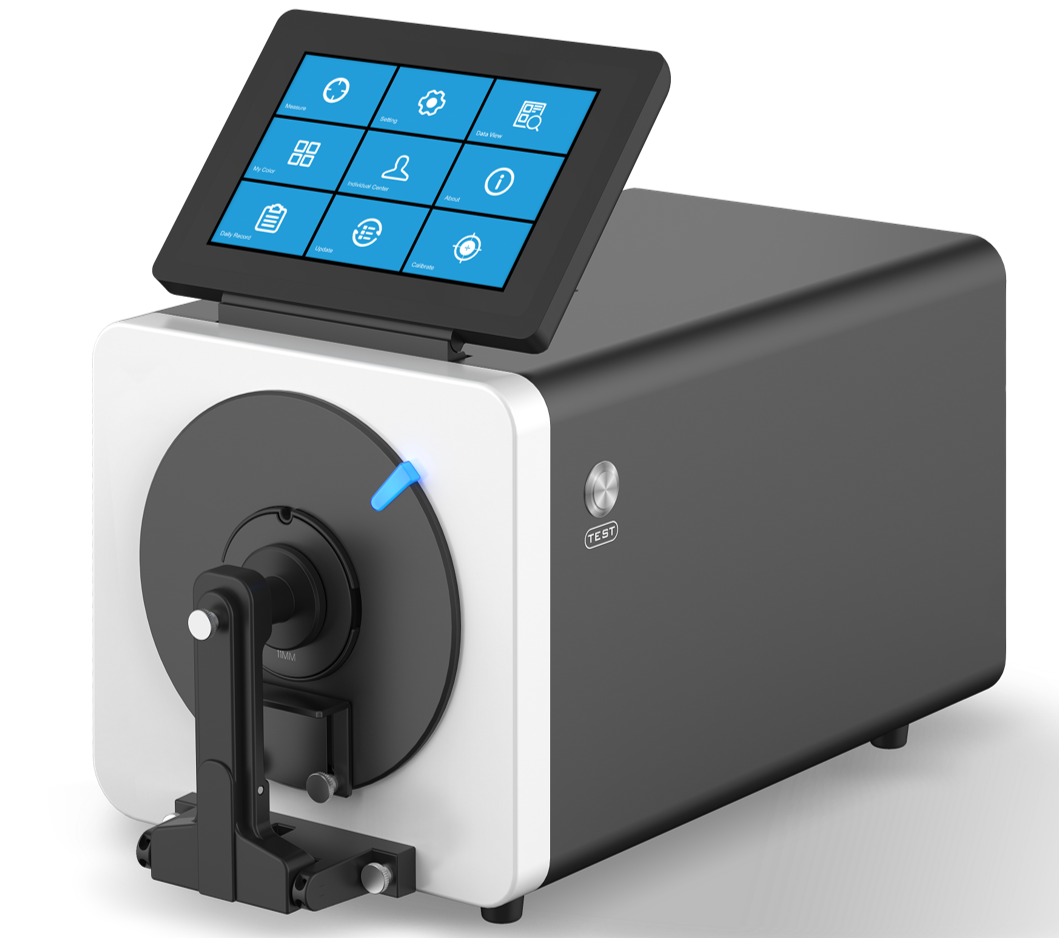

ChromaAgera EZ100
Itadopts a 45/0 optical structure, and the measurement data is highly consistentwith visual observation.
It is applicable to color detection of printed matter, leather (texturedsamples), traffic road signs, etc.
It comes with an accessory storage drawer, so the accessories are not easy tobe lost.
The equipment can be connected to the network to upgrade to the latest versionand obtain the latest chromaticity indicators.
It features a 7-inch touchscreen operation, clearly displaying the measurementdata.
A powerful computer data management software is included.
1.Product Features

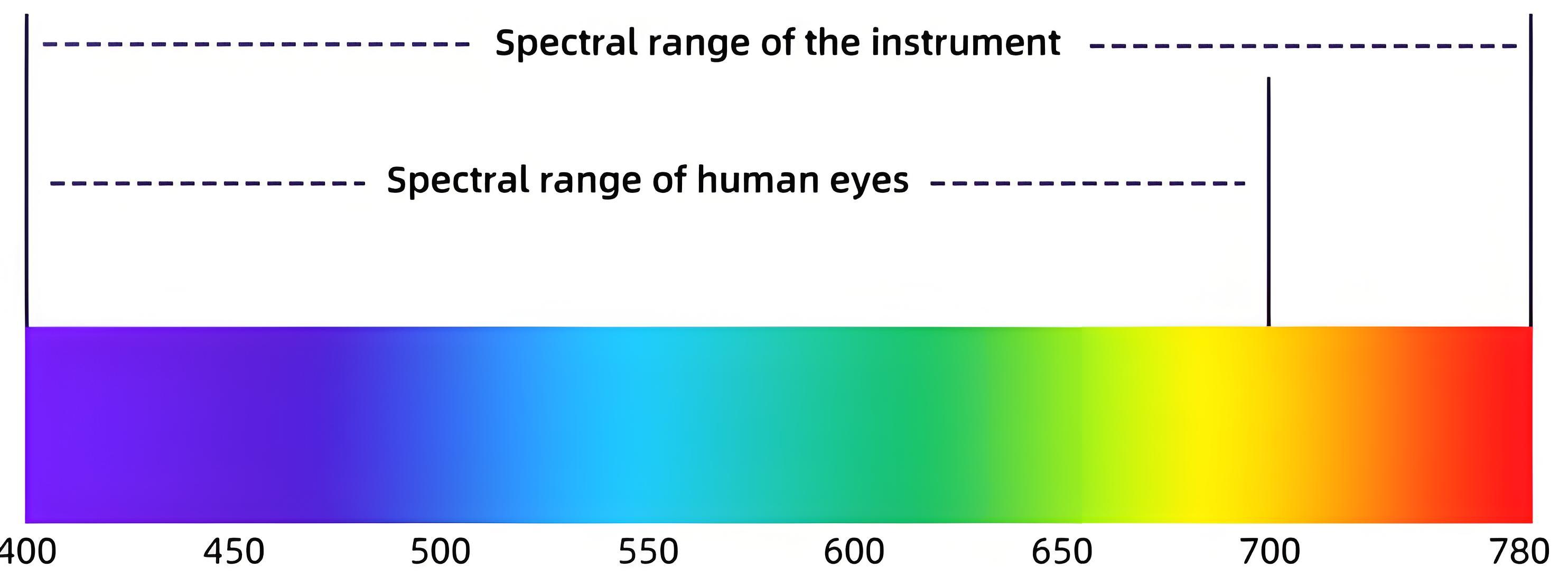

Theindustry-leading wavelength range: 400 - 780 nm
The wavelength range of conventional colorimeters is400 - 700 nm. To achieve more accurate color measurement, the wavelength hasbeen extended to 400 - 780 nm.

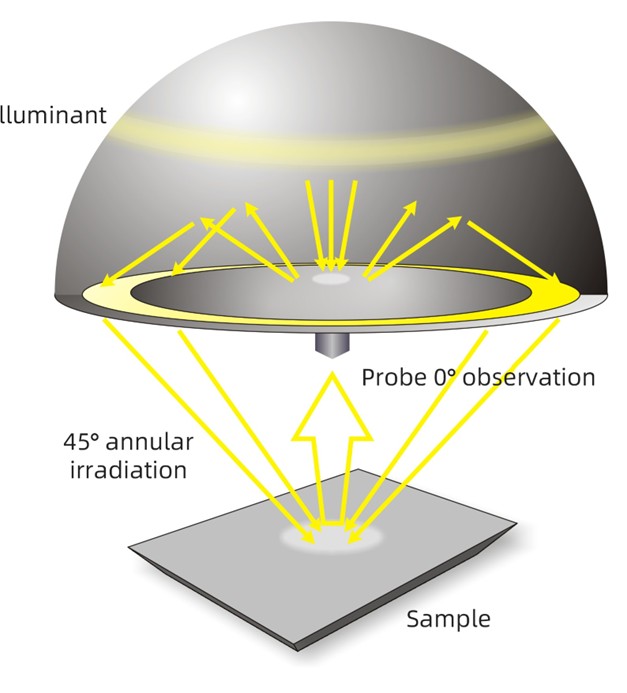

Theinnovative 45/0 optical structure enables the measurement data to be highlyconsistent with visual observation.
The revolutionary optical innovation can provideusers with more accurate measurement results and bring more excellent colormeasurement experiences for various application fields.

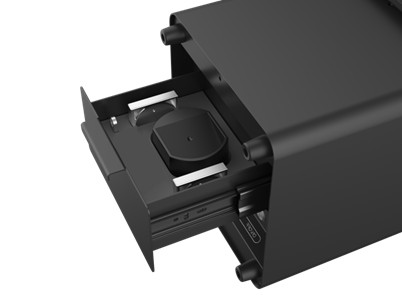

It comes witha storage drawer for accessories
It can store software USB drives,white calibration plates, green calibration plates and black cavities.

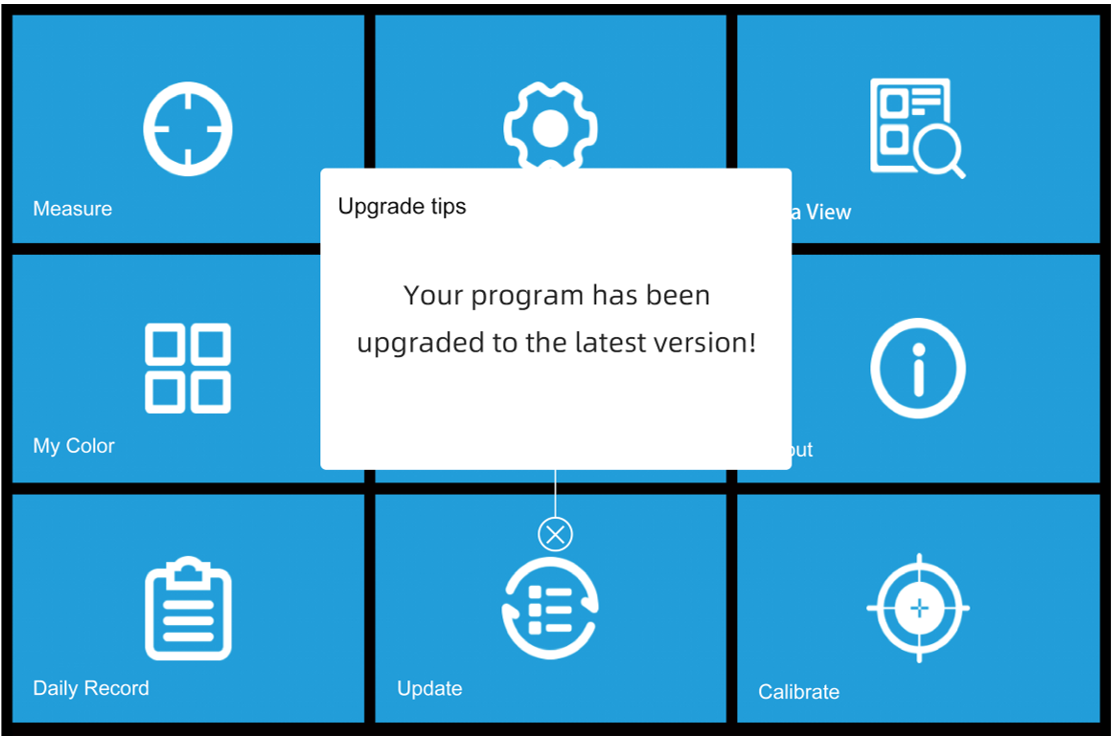

It can be upgraded online to obtain the latestchromaticity indicators.
The instrument supports online software update andnew indicators. Users can upgrade to obtain them automatically.

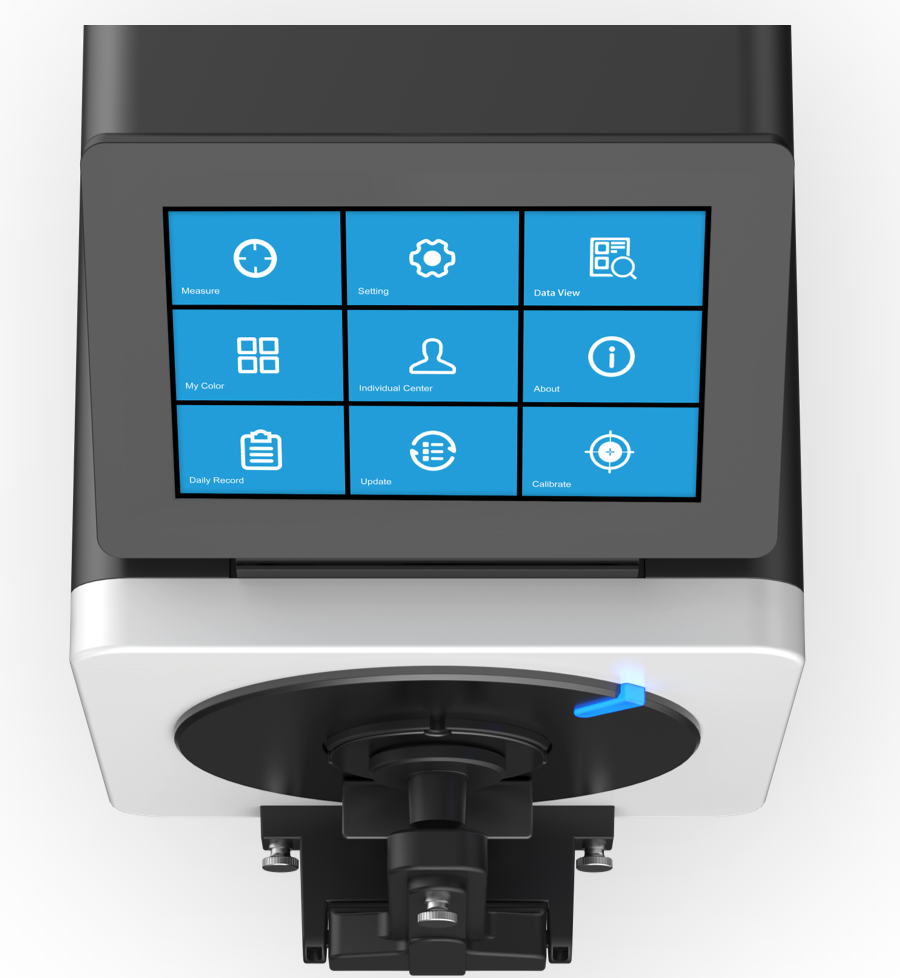

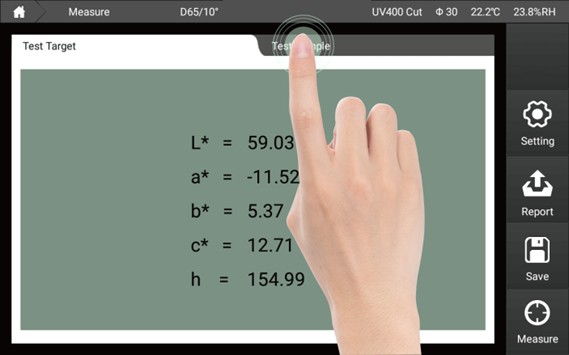

7-inch touchscreen operation, clearly displaymeasurement data.
The instrument adopts a 7-inch touchscreen andsupports standalone and computer connection operations. The standalone unit canstore more than 100,000 pieces of data.
2.TechnicalParameters
Model | ChromaAgera EZ100 |
Measurement Conditions | Reflection: 45/0 (45° annular illumination, 0° observation angle) |
Sensor | Silicon photodiode array |
Spectroscopic mode | Concave grating |
wavelength range | 400nm-780nm |
wavelength interval | 10nm |
Half-wave width | 5nm |
Reflectance measurement range | 0 - 200%, resolution 0.01% |
Illumination light source | LED |
Aperture | LAV Φ18mm |
Repeatability ※ | ΔE*ab≤ 0.03 |
Inter instrument Agreement ※※ | ΔE*ab≤ 0.25 |
Observer Angle | 2° and 10° |
Language | Chinese，English, Traditional Chinese, Russian, Spanish, Portuguese, Japanese, Thai, Korean, German, French, Polish |
Observation light source | A,B,C,D50,D55,D65,D75,F1,F2,F3,F4,F5,F6,F7,F8,F9,F10,F11,F12,CWF,U30,U35,DLF,NBF,TL83,TL84,ID50,ID65,LED-B1,LED-B2,LED-B3,LED-B4,LED-B5,LED-BH1,LED-RGB1,LED-V1,LED-V2 |
Display content | Spectral data, spectral graph, chromaticity data, color difference data, color difference graph, pass/fail judgment, simulated color, color evaluation, color bias |
Color space | L*a*b,L*C*h,Hunter Lab,Yxy,XYZ,RGB |
Chromaticity index | WI (ASTM E313-00, ASTM E313-73, CIE/ISO, AATCC, Hunter, Taube, Berger Stensby), YI (ASTM D1925, ASTM E313-00, ASTM E313-73), Tint (ASTM E313-00), Metamerism index Milm, Color staining fastness, Color change fastness, ISO brightness, R457, A density, T density, E density, M density, Hiding power, Pigment strength, Strength, Traffic sign luminance factor, βxy |
Color difference formula | ΔEab, ΔECH, ΔEuv, ΔEcmc, ΔE94, ΔE00, ΔEab(Hunter), 555 hue classification |
Storage space | 8GB |
Screen size | 7-inch capacitive touch screen |
Operating system | Android |
Power | 24V/2.5A |
Operating temperature and humidity | 5 to 40°C, relative humidity 80% (below at 35°C) without condensation |
Storage temperature and humidity | -20 to 45°C, relative humidity 80% (below at 35°C) without condensation |
Accessory | Power adapter, data cable, USB flash drive (with management software inside), black cavity, white board, green board |
Optional accessories | Reflective cuvette holder, fiber test box, film clamp, European standard plug, American standard plug |
Interface | RS-232、USB-A、USB-B |
Size | Length, width and height: 400 * 215 * 224 |
Weight | 10.8kg |
Other | 1、The instrument can measure from the side and upwards. 2、Automatic temperature and humidity compensation function |
※The whiteboard is calibrated and then measured 30 timesat 5-second intervals in the maximum aperture UV400 mode. The standarddeviation of the measurement results is obtained.
※※The average value of the measurement results ofthe 12 color plates of the BCRA series in the maximum aperture UV400 mode
