CHNSpec CRX-66 multi-angle spectrophotometer features a 7-angle measurement system designed for precise color evaluation of metallic and pearlescent paints. It accurately captures color variations from different angles, making it ideal for automotive, cosmetics, and printing industries, delivering professional color quality control solutions.
DetailSupports

Repeatability：dE*ab≤0.02

Interstation difference：dE*ab≤0.25

Calibersize：21mm

Non-contactdistance：5mm

1.Productfeatures

  • Thedual path spectral spectroscopy method for color measurement has fast speed,high accuracy, and good repeatability

  • Canmeasure multiple color indicators: reflectivity, CIE-Lab, LCh, Luv, XYZ, Yxy,Hunter lab, etc., please refer to the parameters for details

  • Waterproofand dustproof, protection level IP66

  • Supportsmultiple communication modes including RS232, RS485, USB, Ethernet port, andanalog signal

  • UsingLED light sources for longer lifespan

  • Supportinternal calibration to ensure high stability of the instrument

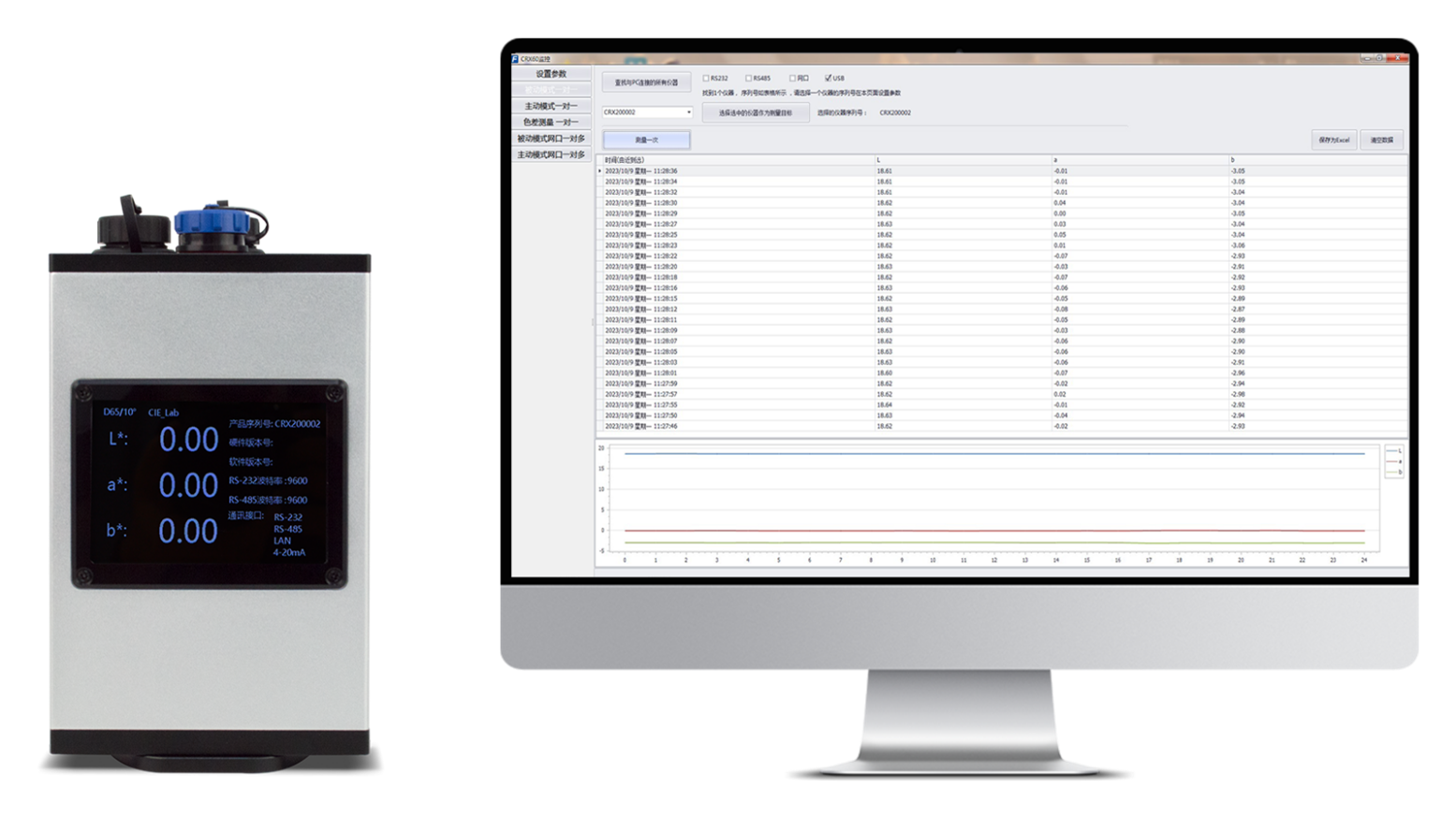

  • Equippedwith powerful PC data management software as standard




2.Technicalparameter



ModelCRX-66
Appearance ColorSilvery

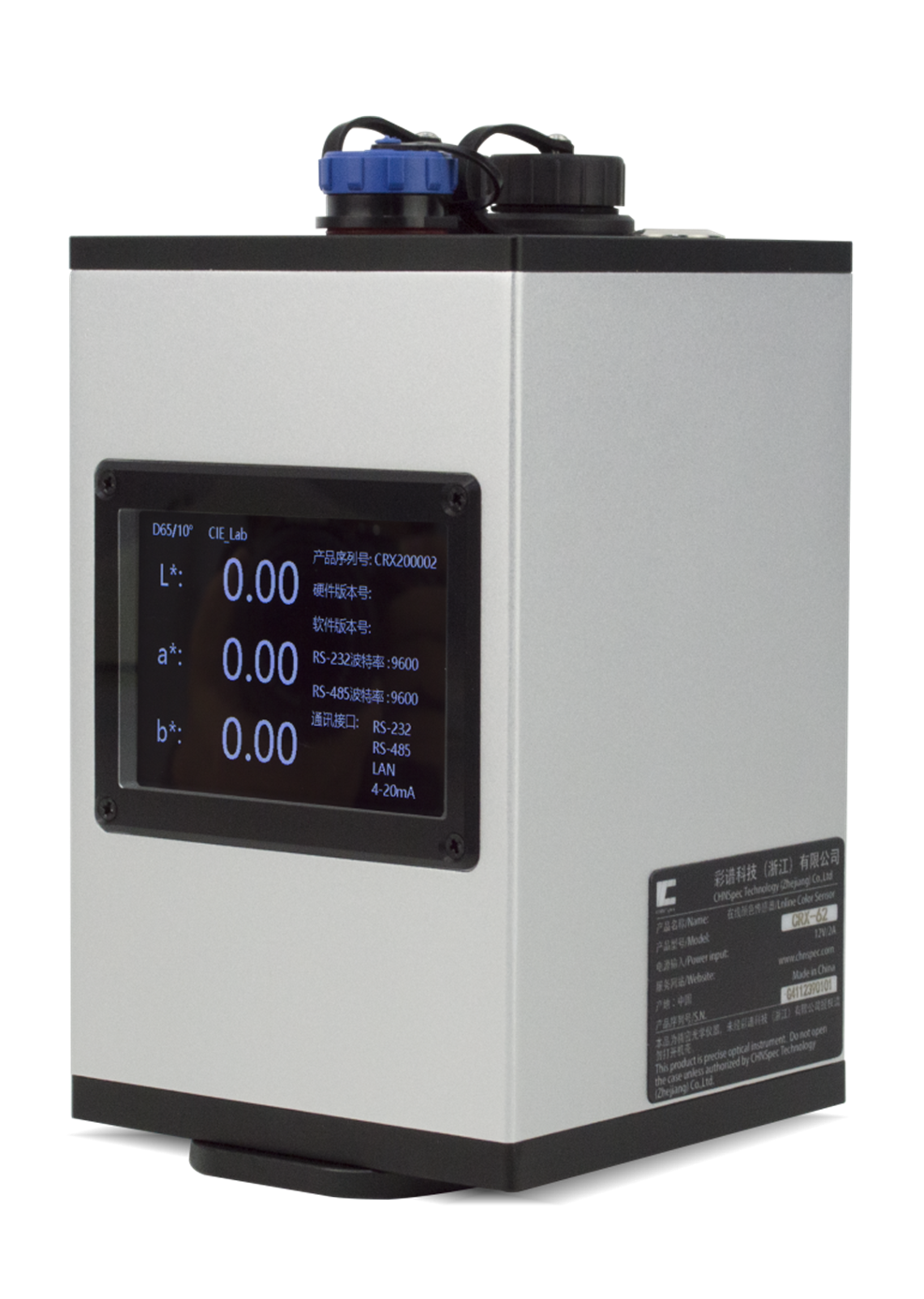

Screen3.5-inch full color display
LanguagesEnglish, Simplified Chinese
Optical System
Measurement Geometry45/0
Viewing Angle2°, 10°
Spectral MethodGrating
Sensor TypeDual column high-precision CMOS array sensor
Lighting SourceFull band balanced LED light source
Aperture SizeMeasurement: Φ8mm, Lighting: Φ21mm
Non-contact Distance5mm
Performance
Wavelength Range400-700nm
Wavelength Interval10nm
Measurement RepeatabilitydE*ab ≤ 0.02
Inter-instrument AgreementdE*ab ≤ 0.25
Display Resolution0.01
Reflectance Range0-200%
Reflectance Resolution0.01%
Measurement Time50ms (single measurement)
Measurement Interval1s
Measurement Capabilities
Measurement Indicators27 types
Specific ParametersSpectral reflectance, CIE-Lab, CIE-LCh, HunterLab, CIE-Luv, XYZ, Yxy, RGB, Color difference (ΔEab, ΔEcmc, ΔE94, ΔE00), Whiteness (ASTM E313-00, ASTM E313-73, CIE, ISO2470/R457, AATCC, Hunter, Taube Berger Stensby), Yellowness (ASTM D1925, ASTM E313-00, ASTM E313-73), Black (My, dM), Color fastness to staining, Color fastness, Tint (ASTM E313-00), Color density CMYK (A,T,E,M)
Light Sources
Available Illuminants37 types (A, B, C, D50, D55, D65, D75, F1-F12, CWF, U30, U35, DLF, NBF, TL83, TL84, ID50, ID65, LED-B1 to B5, LED-BH1, LED-RGB1, LED-V1, LED-V2)
Light Source Lifetime1 million flashes (10 years)
Calibration & Interfaces
CalibrationVisual, Intelligent automatic calibration
Accuracy AssuranceGuaranteed first-level measurement qualification
InterfacesUSB, RS-485, RS-232, External trigger, Analog signal output, Ethernet
Standards Compliance
ComplianceCIE No.15, GB/T 3978, GB 2893, GB/T 18833, ISO7724-1, ASTM E1164, DIN5033 Teil7

45 ° angle circular lighting/0 ° angle reception

Measure the standard deviation of the whiteboard 30 times at 5-secondintervals after calibrationBCRA series II 12 color palette measurement average
