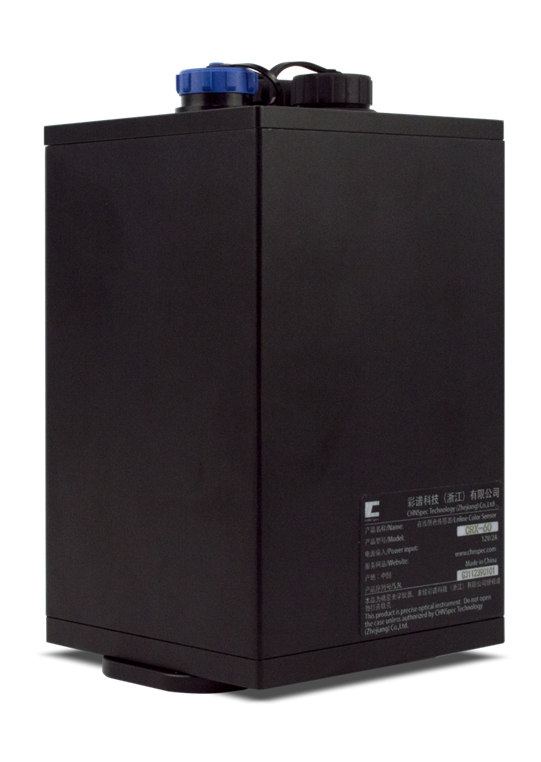

Non-contact spectrophotometer/in-line color sensor CRX-60

WeChat
copy Link
Facebook
X
LinkedIn
Pinterest
CHNSpec CRX-60 multi-angle spectrophotometer is specifically designed for measuring special effect pigments such as metallic and pearlescent paints. Utilizing advanced multi-angle optical measurement technology, it accurately captures color variations from different angles. Widely used in automotive, cosmetics, and other industries for quality control and color management, it ensures precise reproduction of special effect colors.
DetailSupports

Repeatability：dE*ab≤0.02

Calibersize：21mm

Non-contactdistance：5mm

1.Productfeatures

  • Thedual path spectral spectroscopy method for color measurement has fast speed,high accuracy, and good repeatability

  • Canmeasure multiple color indicators: reflectivity, CIE-Lab, LCh, Luv, XYZ, Yxy,Hunter lab, etc., please refer to the parameters for details

  • Waterproofand dustproof, protection level IP66

  • Supportsmultiple communication modes including RS232, RS485, USB, Ethernet port, andanalog signal

  • UsingLED light sources for longer lifespan

  • Supportinternal calibration to ensure high stability of the instrument

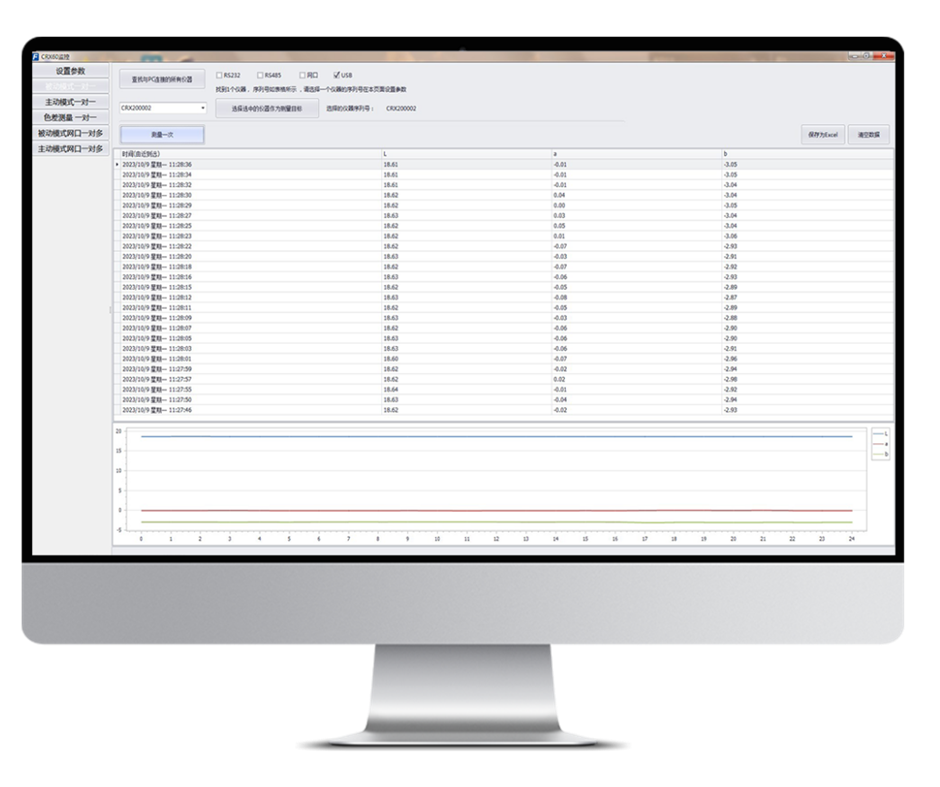

  • Equippedwith powerful PC data management software as standard




2.Technicalparameter

Model

CRX-60

Appearance   color

Black

Screen

/

Measurement   structure*

45/0

Measurement   repeatability**

dE*ab≤0.1

Inter   station difference***

/

Display   Accuracy

0.01

Measurement/lighting   aperture

Φ8mm/Φ21mm

Measurement   indicators

CIE-Lab,XYZ   (2 types)

Evaluate   light sources

A,C,D65   (3 types)

Lighting   source

Full   band balanced LED light source

Viewing   angle

2°,   10°

Compliant   with standards

CIE   No.15, GB/T 3978, GB 2893, GB/T 18833, ISO7724-1, ASTM E1164, DIN5033 Teil7

Spectral   method

Nanospectral   devices

Sensor

Silicon   optical array devices

Wavelength   interval

10nm

Wavelength   range

400-700nm

Reflectivity   measurement

range

0-200%

Reflectivity   resolution

0.01%

Measurement   and observation methods

visual

Calibration

Intelligent   automatic calibration

Accuracy   assurance

Ensure   that the first level measurement is qualified

Time

SINGLE   110ms

Measurement   Interval

1s

Interface

USB,   485, 232, external trigger, Analog signal output, Ethernet

Light   source lifespan

1   million times in 10 years

Language

/

Non-contact   distance

5mm


*45 ° angle circular lighting/0 ° angle reception
**Measure the standard deviation of the whiteboard 30 times at 5-secondintervals after calibration
***BCRA series II 12 color palette measurement average
