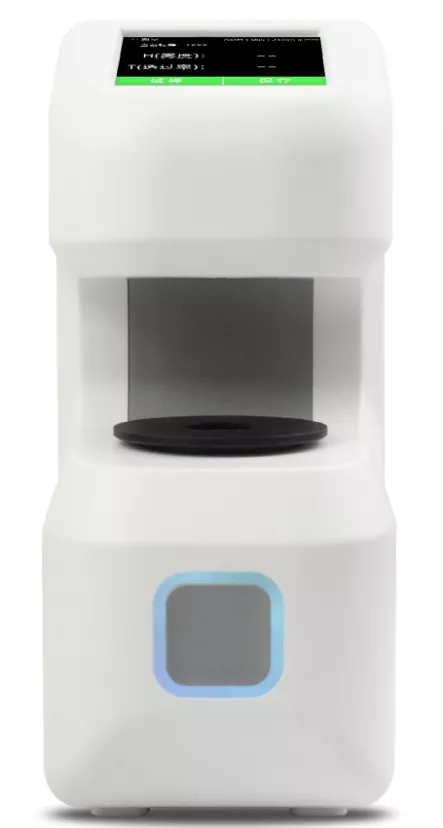

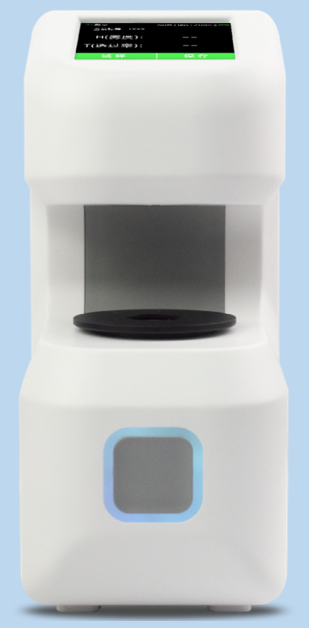

Portable Haze Meter DH-10
Part 1.Product Advantages

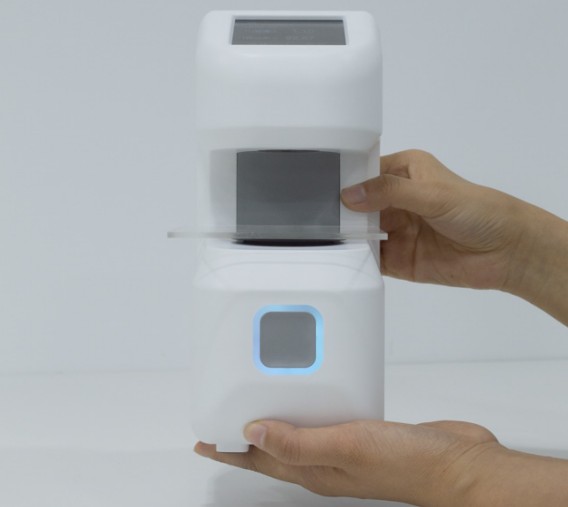

1). The portable haze meteris with smaller size which is more convenient to be carried for testing hazeand transmittance.
2). What have we done to guarantee the instrument repeatability?

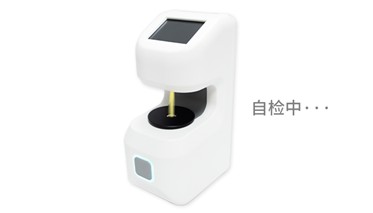

a. Instrument will do self-check regularly when it is in standby mode.

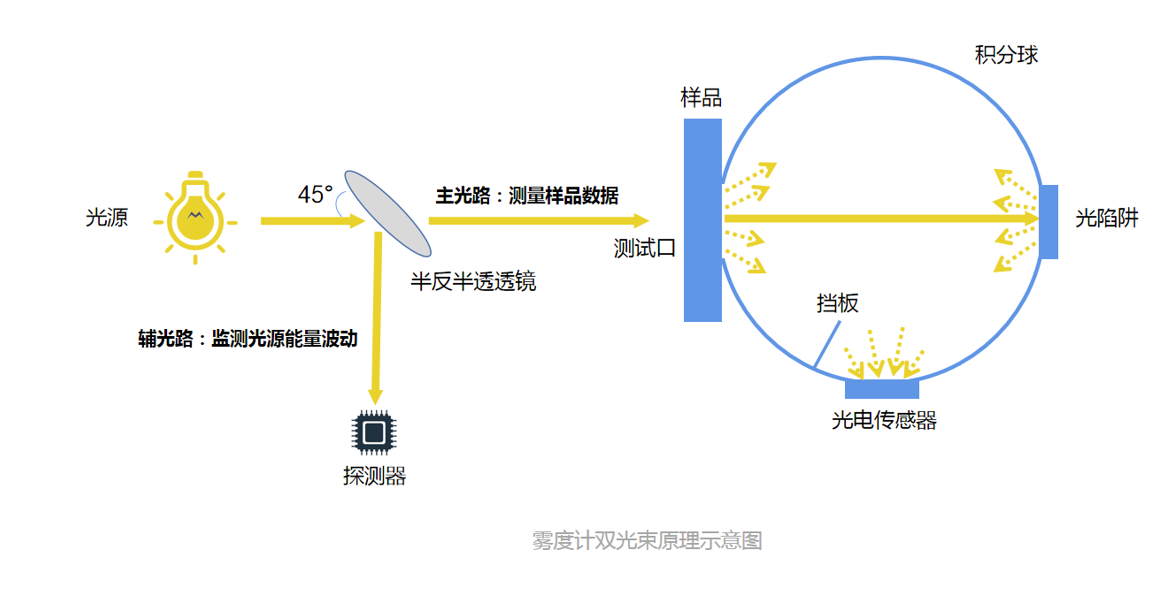

b. DualOptical Paths Design

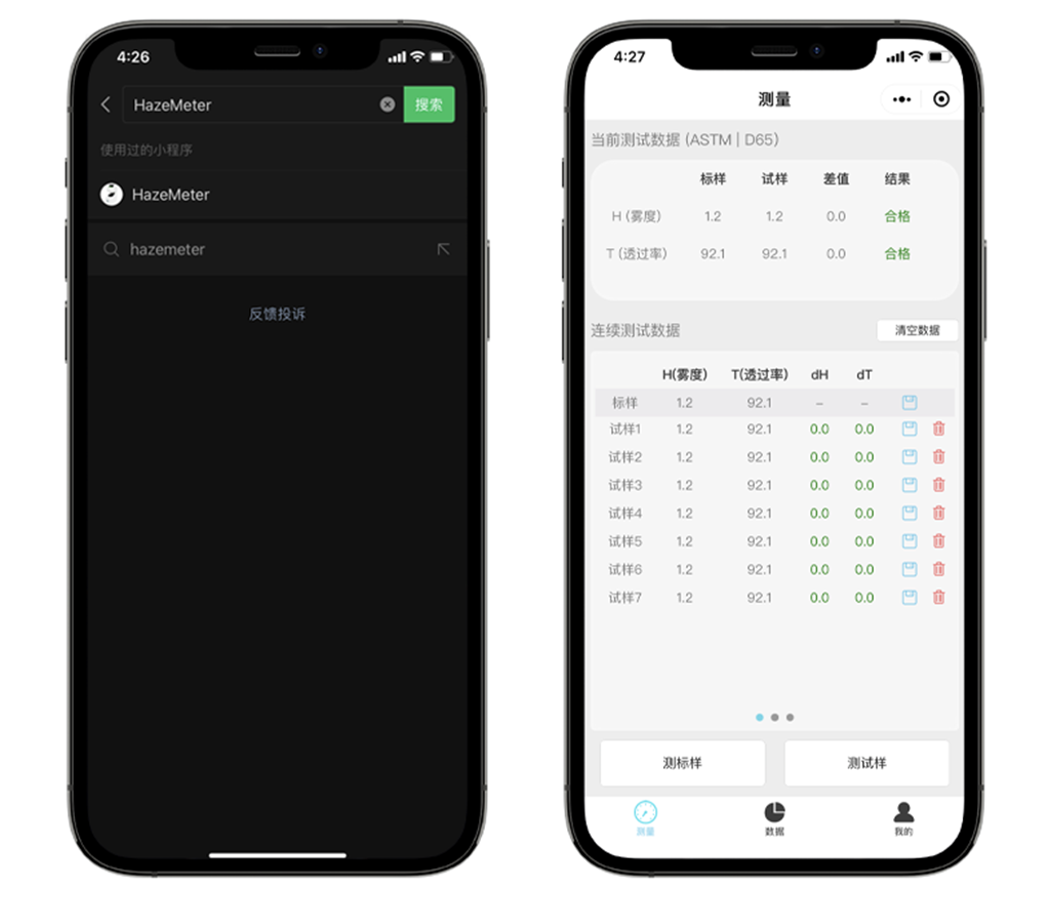

3).Supports connection to the mobile app "HazeMeter" for cloud data storage and account-synced measurements
4).Complies with testing standards: GB/T 2410, ASTM D1003/1044, ISO 13468/14782, JIS K 7105, JIS K 7361, and JIS K 7136.

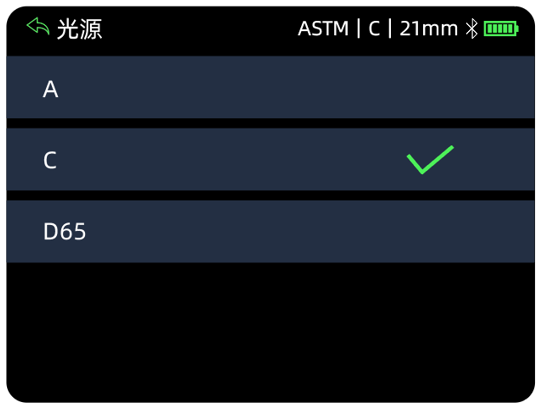

5).Measures haze and transmittance under three standard light sources: CIE-A, CIE-C, and CIE-D65.

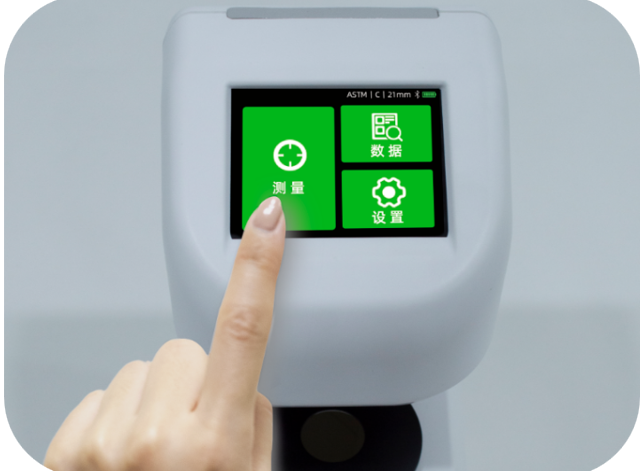

6).Features a 2.8-inch touchscreen for intuitive operation.
Part 2. Packing List
Model | DH-10 |
Packing List | Instrument |
USB Cable / Recharging Cable | |
U Disk ( QC software, manual) | |
1 test aperture | |
Qualified Certificate | |
Warranty Card | |
Packing List | |
Calibration Certificate |
Part 3. Technical Data
Model | DH-10 |
Light Source | CIE-A,CIE-C,CIE-D65 |
Standards | ASTM D1003/D1044,ISO 13468/ISO14782,JIS K 7105,JIS K 7361,JIS K 7136,GB/T 2410-08 |
Parameter | ASTM-haze/transmittance, Optical density value |
Spectral Response | CIE The spectrum function Y/V(λ) |
Geometry | 0/d |
Test Aperture | 21mm |
Test Range | 0-100% |
Resolution | 0.1% |
Repeatability | 0.1 |
Sample Size | Thickness ≤40mm |
Display | 2.8 inches touch screen |
Data Storage | Mass Storage |
Interface | USB |
Power | DC 5V/2A |
Working Temperature | 5~40℃, Relative humidity 80% or below (at 35 ° C), no condensation |
Storage Temperature | -20 ℃ ~ 45 ℃, relative humidity 80% or below (at 35 ℃), no condensation |
Size | 133mm x 99mm x 224mm (length X width X height) |
Weight | 1.13 kg |
Optional | Test Aperture with custom made size |
