CT-25 Series Handheld Transmittance Meter
    • 1/2

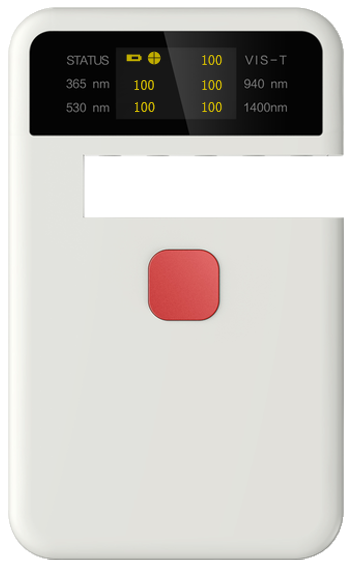

CT-25 Series Handheld Transmittance Meter

WeChat
copy Link
Facebook
X
LinkedIn
Pinterest
CT Family of transmittance meter adopts parallel light path design. The instrument will be calibrated automatically and measured immediately after startup; Put the test materials into the test tank, and the screen will immediately display the test results; Press the hold key to lock the test data; Digital display, which can measure the transmittance of ultraviolet light, visible light, infrared light, 940nm and 1400nm. Widely used in film, glass and other industries.

Simple operation and fast measurement
Measurable UV / visible / infrared light
13nm test notch
Digital display, wide measurement range
Small size
DetailSupports

Product model

Hand held transmittance meter

Hand held transmittance meter

Product model

CT-23

CT-25

Geometry

Transmission

Calibration

Manual + automatic

Test index

Ultraviolet (peak wavelength 365nm)

Visible light (peak wavelength 530nm)

Infrared (peak wavelength 940nm)


Ultraviolet (peak wavelength 365nm)

   Visible light (peak wavelength 530nm)

   Infrared (peak wavelength 940nm)

   Infrared (peak wavelength 1400nm)

   Visible light (380nm-760nm,conform to CIE photopic function standard)


Test accuracy

±2%

Display resolution

0.10%

Sample thickness

13mm（max）

Size

115* 70* 14mm

Test time

Less than 1 S

Battery

750mA

Power supply

5V/1A

Screen

Full color display，135*240，1.14 inches

Recharging interface

USB

Working temperature

0-40℃

Humidity

Less than 85%, no condensation

Accessories

USB cable, hanging rope, instruction manual
