CS-720 Series Spectral Analysis Benchtop Hazemeter
    • 1/3

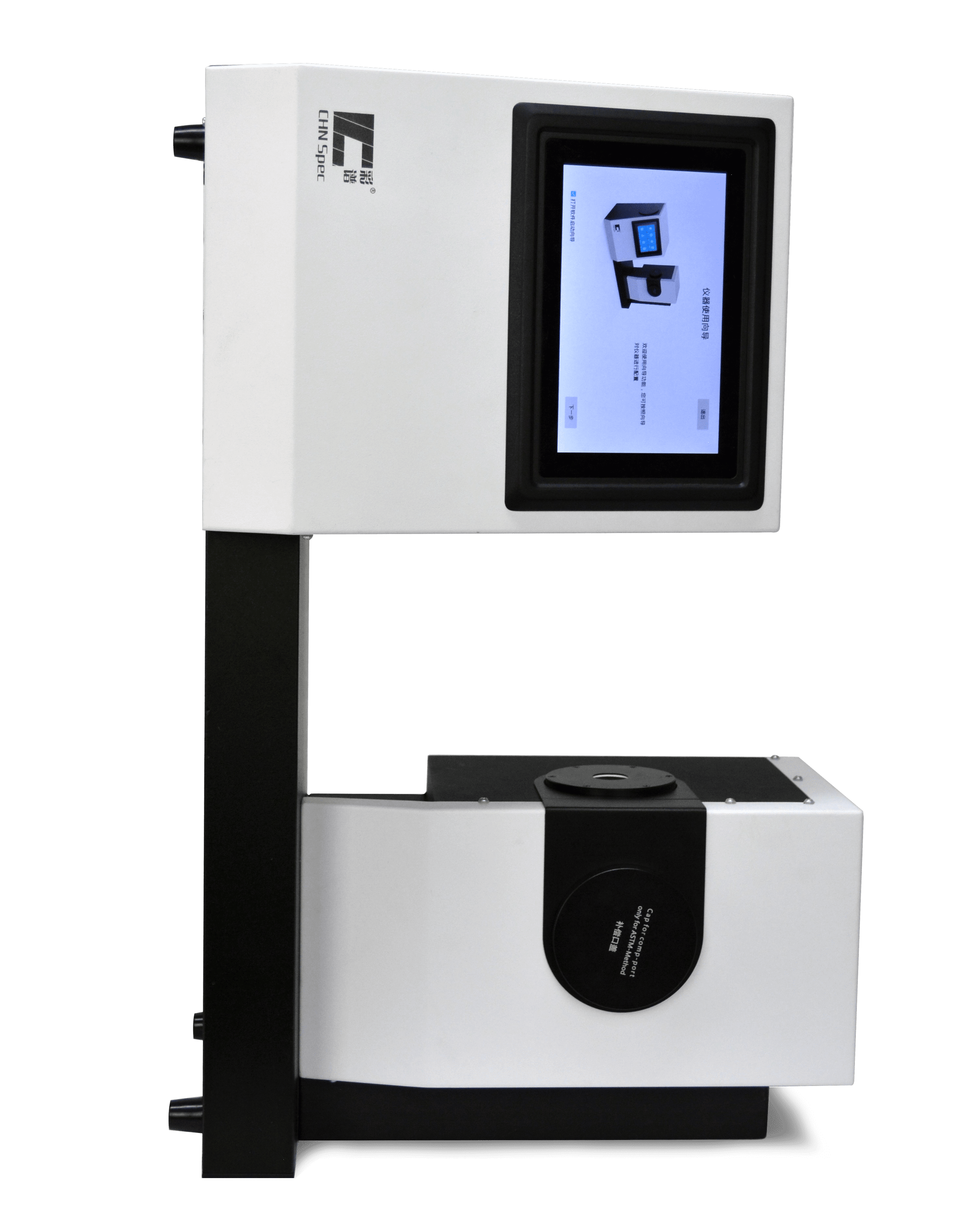

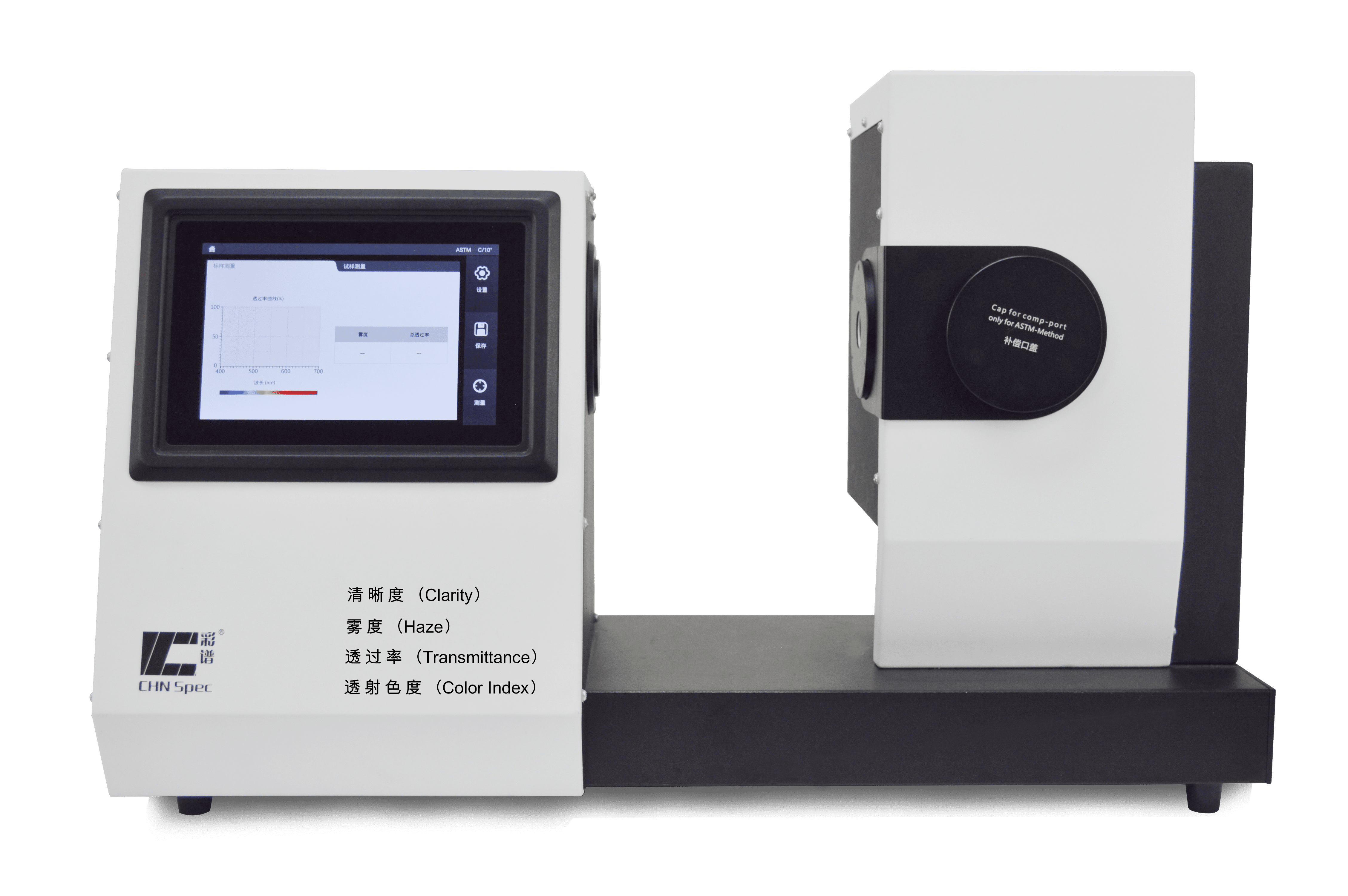

CS-720 Series Spectral Analysis Benchtop Hazemeter

WeChat
copy Link
Facebook
X
LinkedIn
Pinterest
CS-720 clarity and haze meter is suitable for one-stop measurement solution of clarity, color, haze, spectral transmittance and total transmittance of transparent and translucent materials such as plastic, film, glass, LCD panel and touch screen.

Definition measurement parameters
7-inch capacitive touch screen for more convenient operation
Android operating system
Follow ASTM and ISO standards
It has a comprehensive color measurement function in the industry
DetailSupports
Model
CS-700CS-720
Light source
Haze / transmittance:CIE-A,CIE-C,CIE-D65
Chromaticity index:A,C,D50,D55,D65,D75,F1,F2,F3,F4,F5,F6,F7,F8,F9,F10,F11,F12,CMF,U30,DLF,NBF,TL83,TL84
Standards
ASTM D1003/D1044,ISO13468/ISO14782 JIS K 7105,JIS K 7361,JIS K 7136,GB/T 2410-08,CIE No.15,
ISO 7724/1,ASTM E1164,DIN 5033,Teil7,JIS Z8722,Condition C standard
Parameters
HAZE,Transmittance(T%),Spectral transmittance,CIE Lab,LCh,CIE Luv,XYZ,Yxy,Hunter Lab ,MunsellMI,
CMYK,Whiteness WI(ASTME313-00,ASTM E313-73CIE/ISOHunter,Taube Berger Stensby),Yellowness YI(ASTM D1925,ASTME313-00,ASTM E313-73),Tint(ASTM E313-00),Homochromatic heterospectral index MilmAPHA、Pt-Co,Gardner,chromatic aberration (ΔE*abΔE*CH ΔE*uv,ΔE*cmc(2:1),ΔE*cmc(1:1),ΔE*94,ΔE*00）
HAZE,Transmittance(T%),Clarity(C%),Spectral transmittance,CIE Lab,LCh,CIE Luv,XYZ,Yxy,Hunter Lab ,MunsellMI,CMYK,Whiteness WI(ASTME313-00,ASTM E313-73CIE/ISOHunter,Taube Berger Stensby),Yellowness YI(ASTM D1925,
ASTME313-00,ASTM E313-73),Tint(ASTM E313-00),Homochromatic heterospectral index MilmAPHA、Pt-Co,Gardner,chromatic aberration (ΔE*abΔE*CH ΔE*uv,ΔE*cmc(2:1),ΔE*cmc(1:1),ΔE*94,ΔE*00）
Spectral responseCIE spectral function y / V（ λ)
Wavelength range400-700nm
Wavelength interval10nm
Geometry0/d
Illumination and test
aperture size
18mm/25.4mm
Range0-100%
Haze resolution0.01%
Haze repeatabilityRepeatability ≤ 0.05% when haze < 10%; Repeatability ≤ 0.1% when haze ≥ 10%; Transmittance repeatability ≤ 0.1%
sample sizeThickness≤145mm
Display7-inch capacitive touch screen
Store dataMass storage
InterfaceUSB-A,USB-B
Power Supply220V（Built in power cord）
Working temperature5 ~ 40 ℃, relative humidity 80% or lower (at 35 ℃) no water vapor condensation
Storage temperature-20 ℃ ~ 45 ℃, relative humidity 80% or lower (at 35 ℃) no water vapor condensation
sizeLength x width x height:598mmX247mmX366mm
Weight
12kg
Standard acessoryPC management(Haze QC)
OptionalMeasuring fixture, haze standard sheet, customized caliber plate
