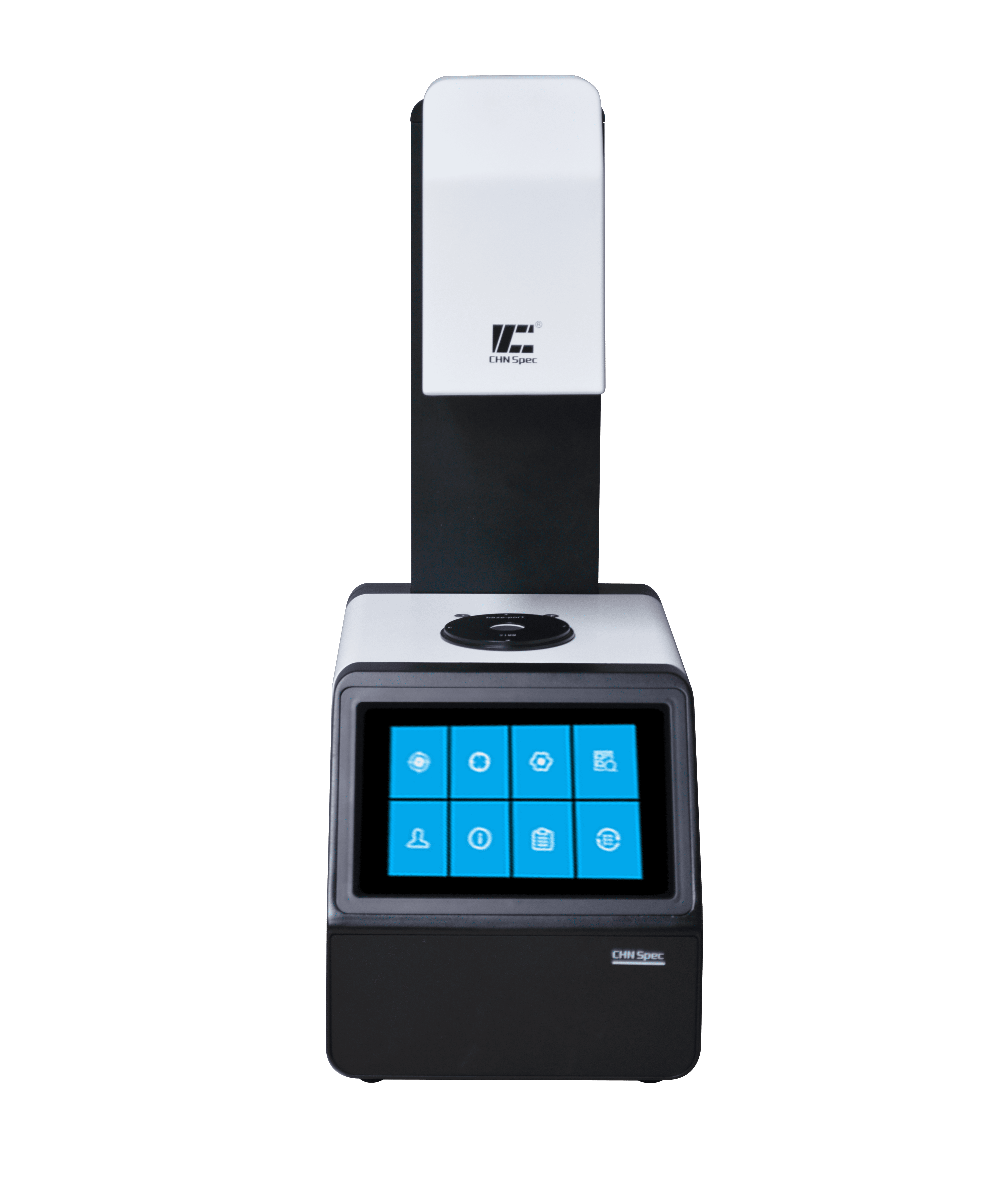

TH-110 Series Benchtop Hazemeter
Th-09/100/110 Haze Meter complies with ISO & ASTM double standards and is equipped with double caliber (21mm / 7mm). It is suitable for one-stop measurement solution of haze and transmittance of transparent and translucent materials such as plastic, film, glass, LCD panel and touch screen.
Open measurement area
Free from external ambient light interference
No preheating required
Data output in 1.5 seconds
Open measurement area
Free from external ambient light interference
No preheating required
Data output in 1.5 seconds
DetailSupports
| Model | TH-09 | TH-100 | TH-110 |
| Illuminants | CIE-A,CIE-C | CIE-A,CIE-C,CIE-D65 | |
| Standards | ASTM D1003/D1044,ISO13468/ISO14782,JIS K 7105,JIS K 7361,JIS K 7136,GB/T 2410-08 | ||
| Parameters | Haze and transmittance under ASTM standard | Haze and transmittance under ASTM and ISO double standards | |
| Spectral response | CIE spectral function y / V（ λ) | ||
| Geometry | 0/d | ||
| Test Aperture | 21mm | 21mm | 21mm,7mm |
Measurement Range | 0-100% | ||
Haze Resolution | 0.01% | ||
Haze Repeatability | 0.1 | 0.08 | 0.05 |
| Sample size | Thickness≤145mm | ||
| Display | 5-inch TFT LCD | 5-inch TFT LCD | 7-inch touch screen, Android system |
Memory | 10000 values | 20000 values | Mass storage |
| Interface | USB interface | ||
| Power | DC12V/3A | ||
| Working temperature | 5 ~ 40 ℃, relative humidity 80% or lower (at 35 ℃), no water vapor condensation | ||
| Storage temperature | -20 ℃ ~ 45 ℃, relative humidity 80% or lower (at 35 ℃), no water vapor condensation | ||
Size (LxWxH) | Length x width x height:310mmX215mmX540mm | ||
| Weight | 6kg | ||
| Standard Accessory | PC management software(Haze QC) | ||
Optional | Measuring fixture, haze standard plate customized aperture | ||
Measurement of haze and throughput values of samples with the TH-110 Family Benchtop Hazemeter
Measuring the difference in haze and throughput between two samples using the TH-110 Family Benchtop Hazemeter
