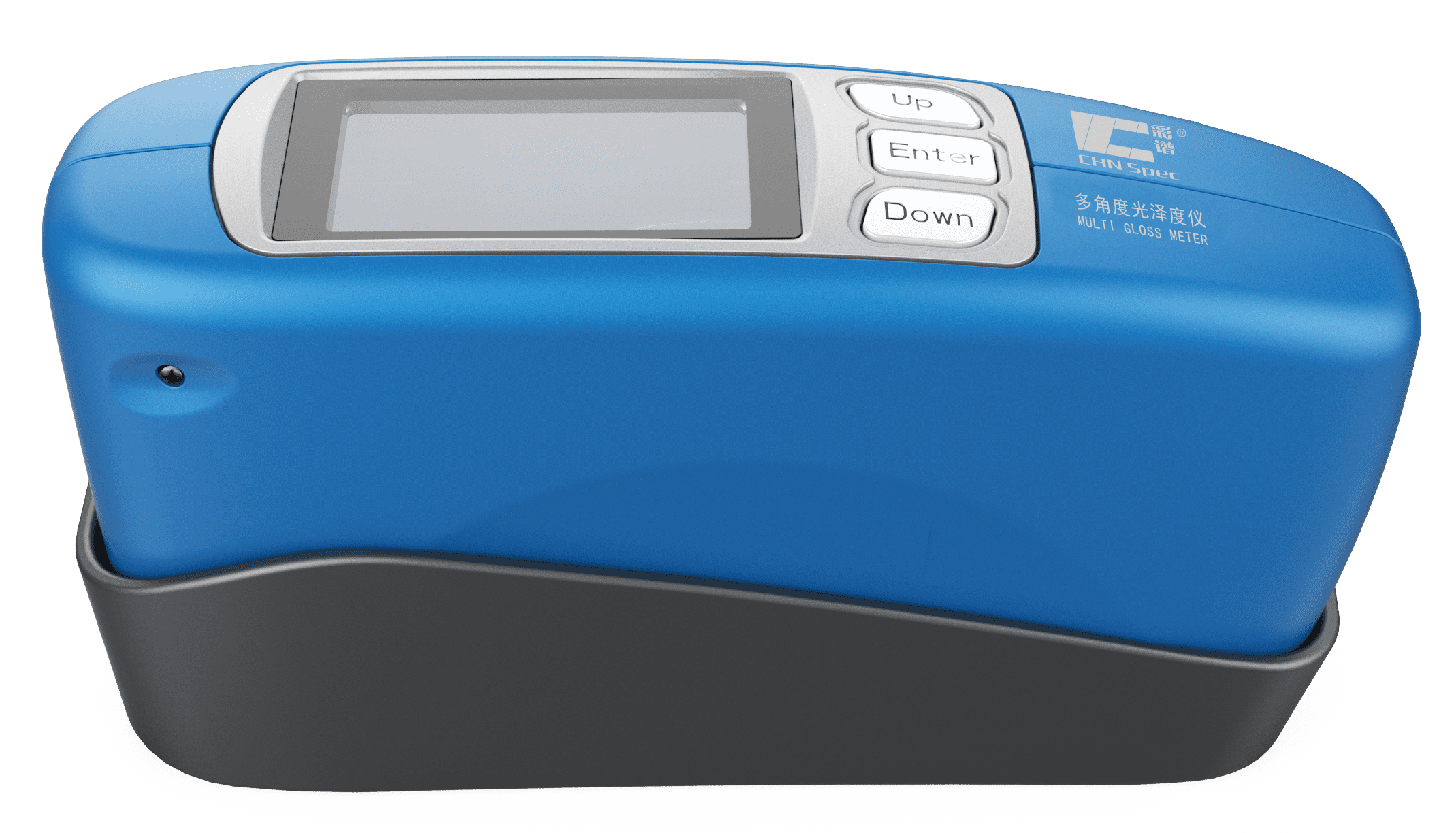

CS-380 Series Portable Glossmeter
CS-380 Family glossometer, with its classic smooth shape and comfortable grip, fits perfectly with the palm of your hand, so that you can not only use it easily, but also love it more; The slim body and large power can be measured 54300 times continuously, so that you have no worries about power and no distractions at work. Comply with DIN 67530, ISO 2813, ASTM D 523, JIS z8741, BS 3900 part d5 and jjg696.
CS-300 series gloss meter includes < strong > three models < / strong >, CS-300 is a 60 degree angle gloss meter, cs-380 is a 20 °, 60 ° and 85 ° gloss meter, and cs-300s is a 2 * 3mm microporous gloss meter
All kinds of experience begin with "quasi"; Precise and impressive
Using dual optical path technology, the stability is 0.2gu, which is a little too stable

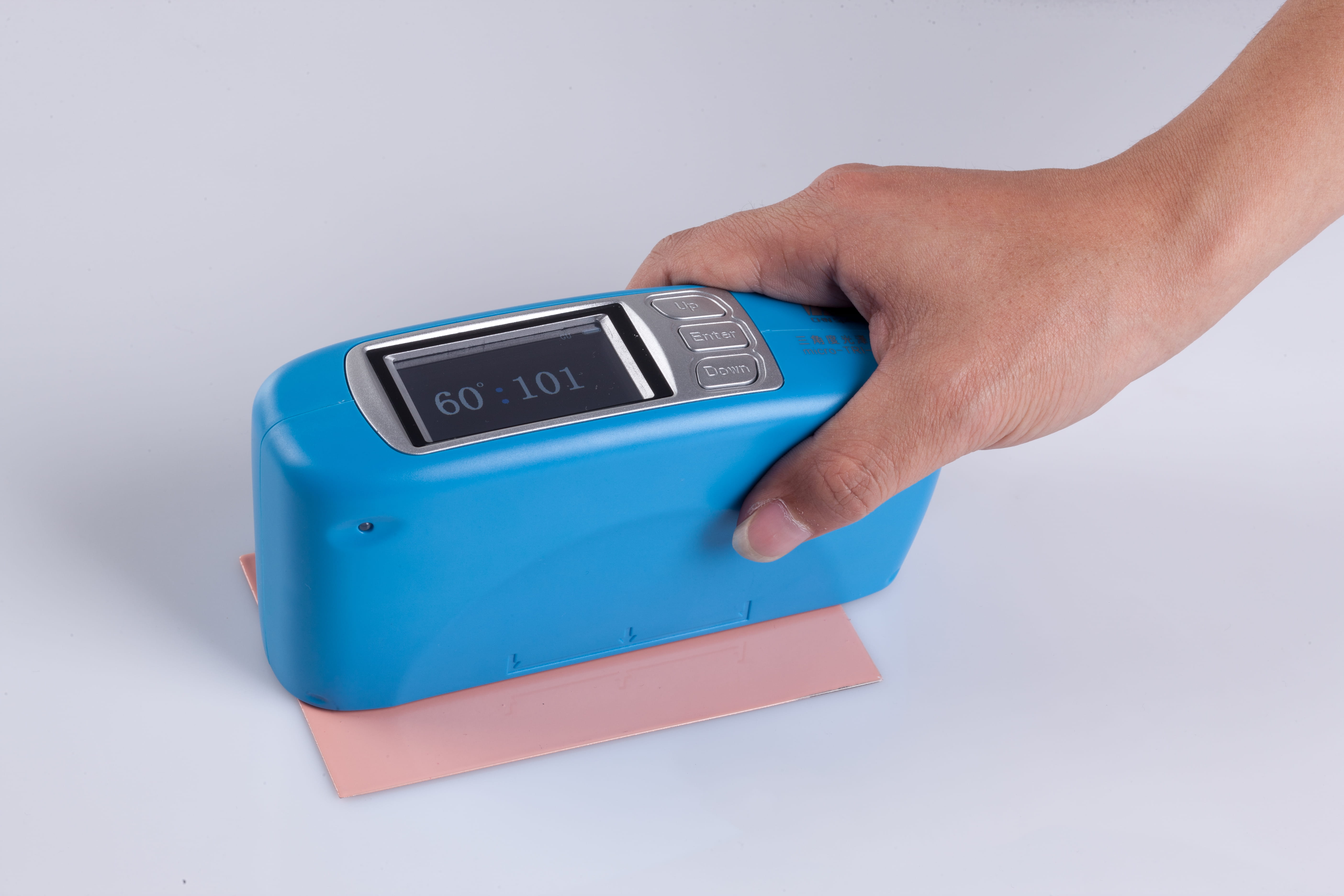

The grip makes you love it
High power - 3000mAh high-capacity rechargeable lithium battery is adopted
CS-300 series gloss meter includes < strong > three models < / strong >, CS-300 is a 60 degree angle gloss meter, cs-380 is a 20 °, 60 ° and 85 ° gloss meter, and cs-300s is a 2 * 3mm microporous gloss meter
All kinds of experience begin with "quasi"; Precise and impressive
Using dual optical path technology, the stability is 0.2gu, which is a little too stable
The grip makes you love it
High power - 3000mAh high-capacity rechargeable lithium battery is adopted
DetailSupports
| Model | CS-300 | CS-380 | CS-300S |
| Test angle | 60° | 20°、60°、85° | 60° |
| Test light spot(mm) | 60°:9*15 | 20°:10*10； 60°:9*15； 85°:5*38 | 60°:2*3 |
| Test range | 60°:0-1000GU | 20°:0-2000GU; 60°:0-1000GU; 85°:0-160GU | 60°:0-600GU |
| Stability | 0-100:0.1GU;more than 100:1GU | ||
Repeatability | 0-100GU:0.2GU 100-2000GU:0.2%GU | 0-100GU:0.2GU 100-2000GU:0.2%GU | 0-100GU:0.2GU 100-600GU:0.2%GU |
| Test modes | Simple mode and statistical mode | ||
| Accuracy | Meet the requirements of JJG 696-2002 class I working glossometer | ||
| Test time | Less than 1s | ||
| Data storage | It can store 100 standard samples and 10000 samples | ||
| Size | 165 * 51 * 77mm (L * w * h) | ||
| Weight | About 400g | ||
| Language | Chinese, English | ||
| Battery | 3000mAh lithium battery | ||
| Interface | USB, Bluetooth (optional) | ||
| Working temperature | 0-40℃ | ||
| Humidity | Less than 85%, no condensation | ||
| Accessories | 5V / 2A charger, USB data cable, manual,USB flash drive | ||
product demonstration

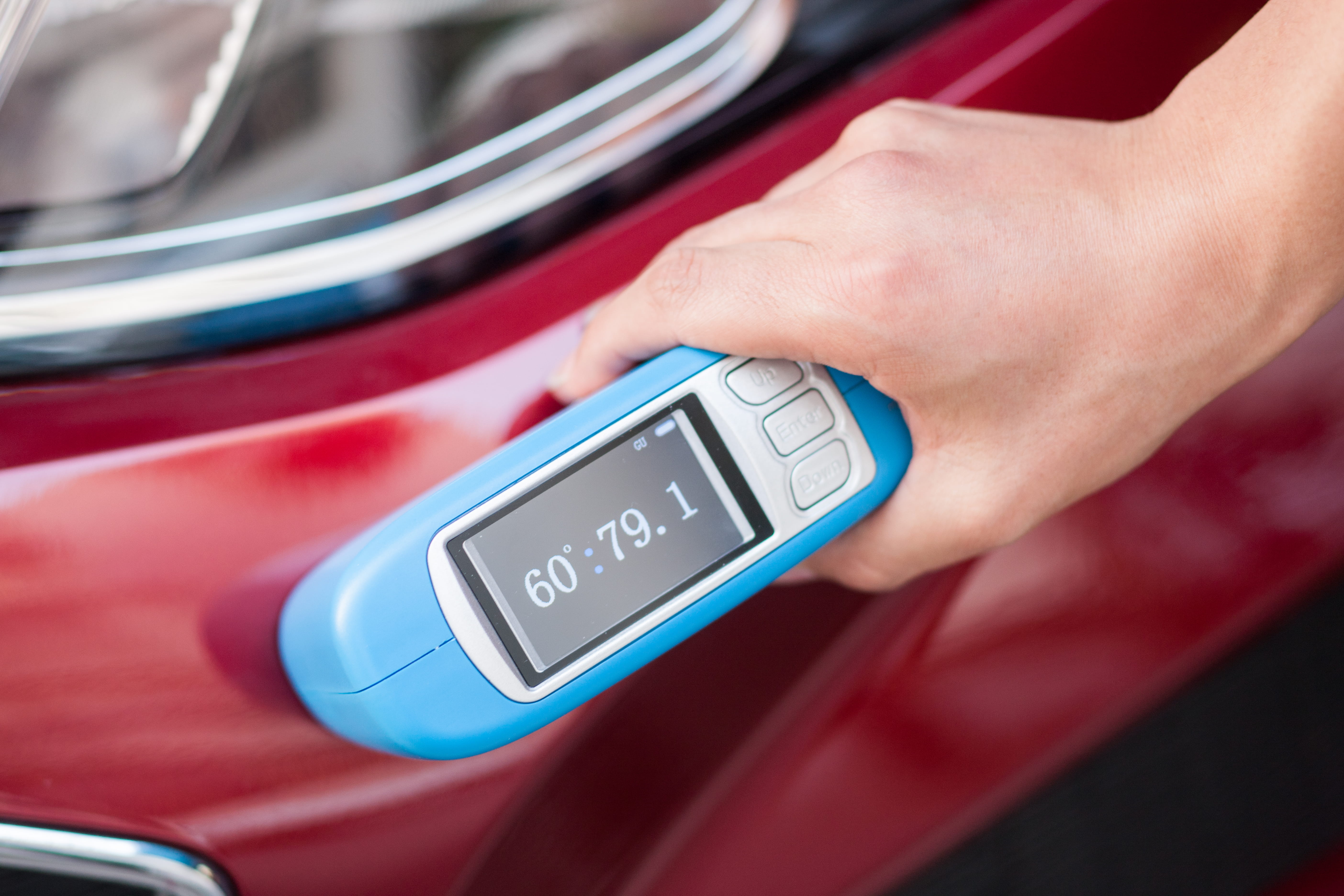

CS-380 measures the glossiness of automotive paint CS-380 measures the glossiness of metal flakes in coatings
Video Demonstration
Gloss meter CS-380 measuring wood paint and rubber sheet demonstration
Gloss meter CS-380 has a wide range of applications
