Gloss Meter CS-300 SE
High Precision Gloss Meter
Dual optical pathtechnology with ultra-high repeatability accuracy of 0.2GU
1.Product features
Lithium ion battery charging saves users on usage costs whileensuring an ultra long battery life of 100000 times

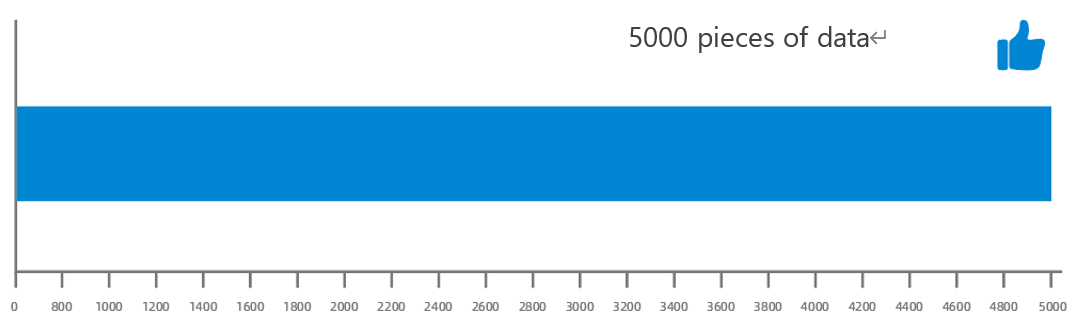

A single machine can store 5000pieces of data, solving the problem of user data storage

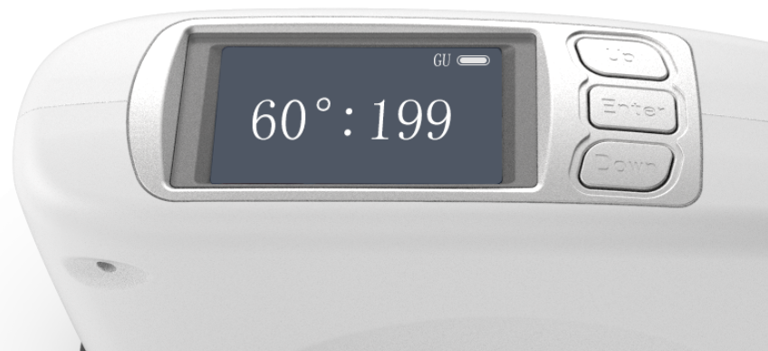

Adopting a 320 * 240 color screen, the data display is clearat a glance

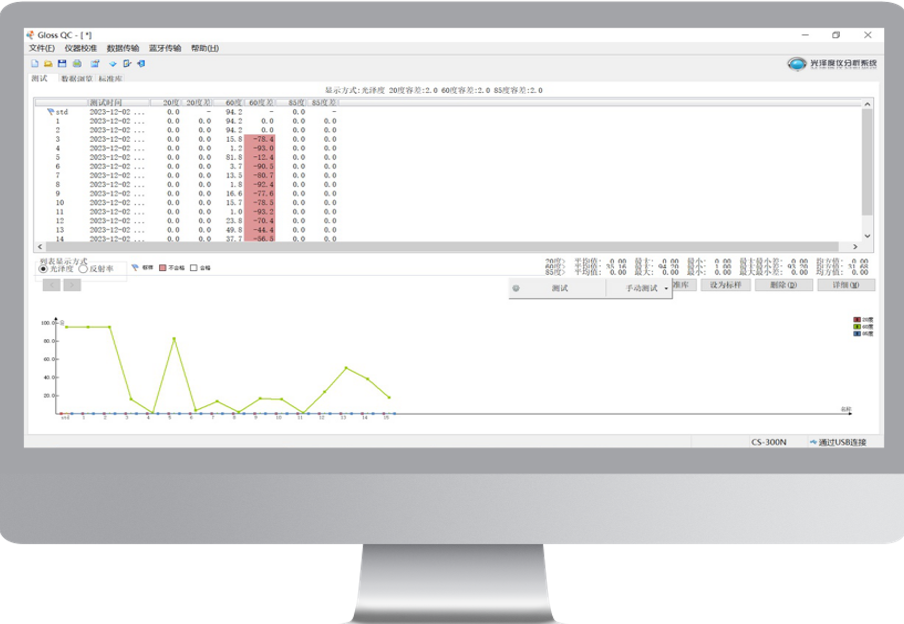

Standard QC software, data can be stored on the computer andreports can be exported
Adopting a universal Type-C interface to reduce userprocurement costs

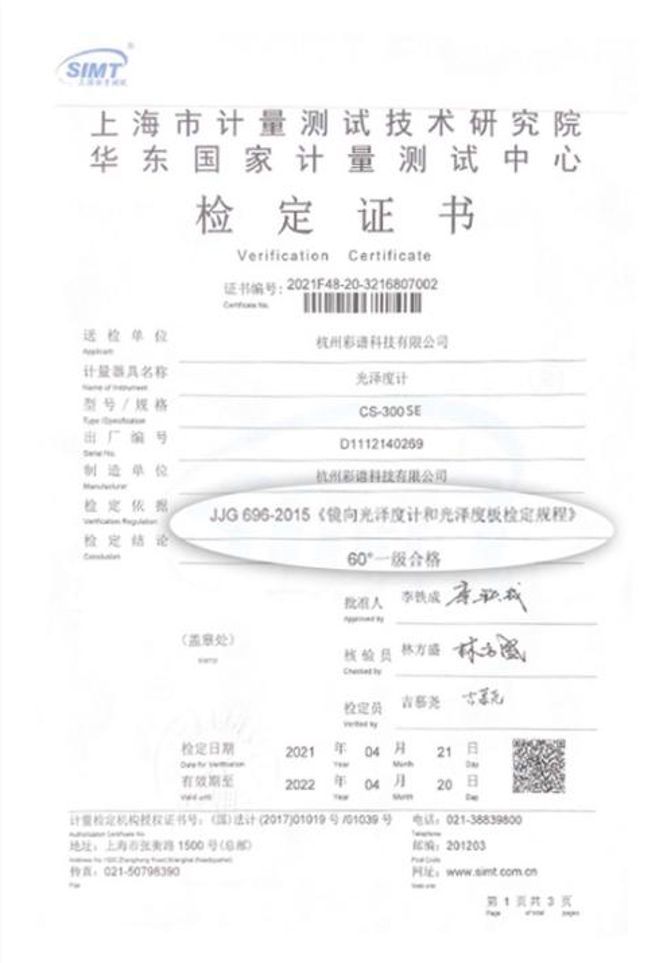

Meets the requirements of JJG 696-2015 glossmeter for moreaccurate data

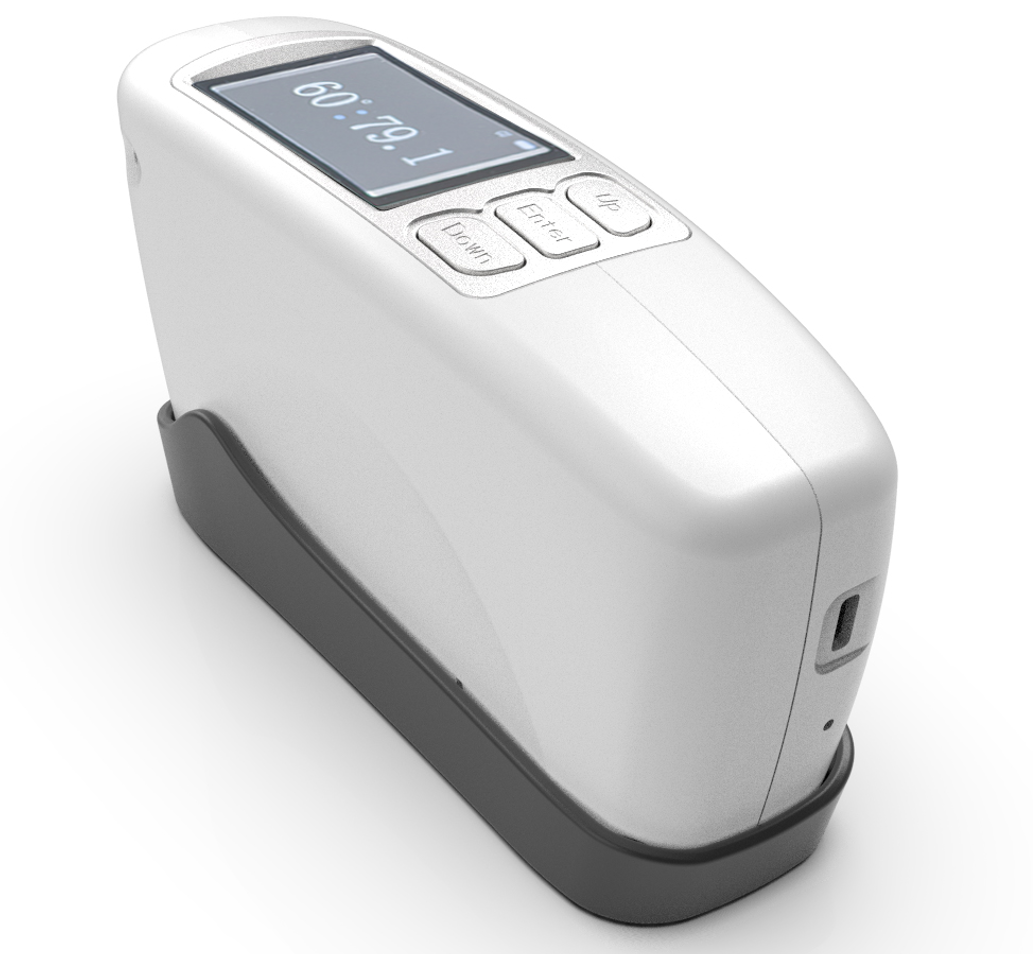

2、 Product diagram
3、 Technical parameter
Model | CS-300 SE |
Measuring Angle | 60° |
Measuring light spots(mm) | 60°:9*15 |
Measuring range | 60°:0-200GU |
Display resolution | 0.1GU |
Measurement repeatability accuracy | 0-100GU:0.2GU；100-200GU:0.2%GU |
Measurement mode | Simple mode and statistical mode |
Measurement accuracy | Meet the requirements of JJG 696-2015 |
Measurement time | ＜1s |
Data storage | 5000 pieces of data |
Volume | 165*51*77mm(L*W*H) |
Weight | 400g |
Language | Chinese，English |
Battery capacity | 3000mAh lithium battery |
Electricity level | Fully charged, can be used 100000 times |
Interface | Type-C |
Screen size | 2.4 inches（Screen resolution320*240） |
Computer software | Yes |
Working temperature | 0-40℃ |
Working humidity | Less than 85%, no condensation |

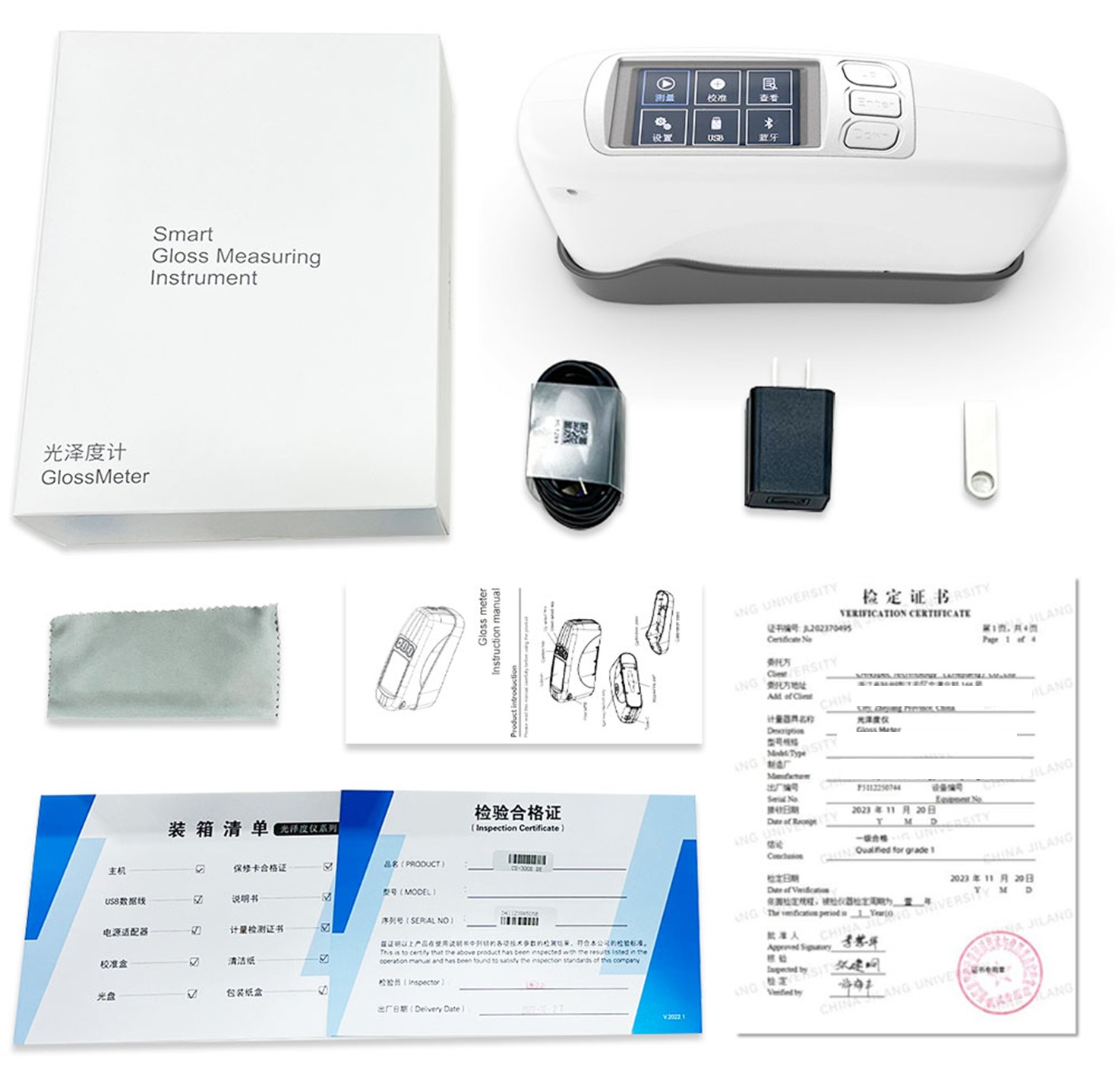

Accessory | 5V/2A charging head, data cable, manual, USB flash drive (upper computer software), calibration standard board, third-party calibration certificate |
Purpose | Paint and ink, coatings, electroplating, plastic electronics, hardware and other fields |
※ Measure the standard deviation 30 times continuously, andevaluate it with absolute value when the measurement value is less than 100GU;When the measured value is greater than 100GU, evaluate it as a percentage
※※ Before the instrument leaves the factory, the measurementdata from the color spectrum standard laboratory
