CHNSpec Technology's CS-380 is a three-angle gloss meter, which can accurately measure the glossiness of materials at 20°, 60° and 85°, complying with multiple international standards. Equipped with Japanese sensors and American chips, it is stable and reliable, with a repeatability accuracy of 0.2GU. It is suitable for various industries such as paint, plastics and printing, helping to control the appearance quality of products.
$529.00
DetailSupports

Gloss meters aremainly used in the surface gloss measurement for paint, plastic, metal,ceramics, building materials and so on. Our gloss meter conform to the DIN67530, ISO 2813, ASTM D 523, JIS Z8741, BS 3900 Part D5, JJG696 standards andso on.

ProductAdvantage

1). High Precision

Our gloss meter adoptssensor from Japan, and processor chip from the US to ensure highly preciseof the measured data.

Our gloss metersconform to JJG 696 standard for first class gloss meters. Every machine hasmetrology accreditation certificate from State Key Laboratory of modernmetrology and testing instruments and Engineering center of the Ministry ofEducation in China.


2).Super Stability

  • Every gloss meter madeby us has done the following test:

  • 412 calibrationtests;

  • 43200 stabilitytests;

  • 110 hours ofaccelerated aging test;

  • 17000 vibrationtest

3).ComfortableGrab Feeling

The shell is made byDow Corning TiSLV material, a desirable elastic material. It is resistant to UVand bacteria and do not cause allergy.

This design is for better userexperience


4).Large BatteryCapacity

We fully utilizedevery space of the device and specially custom made advanced high density lithiumbattery in 3000mAH , which ensures continuous testing for 54300 times.

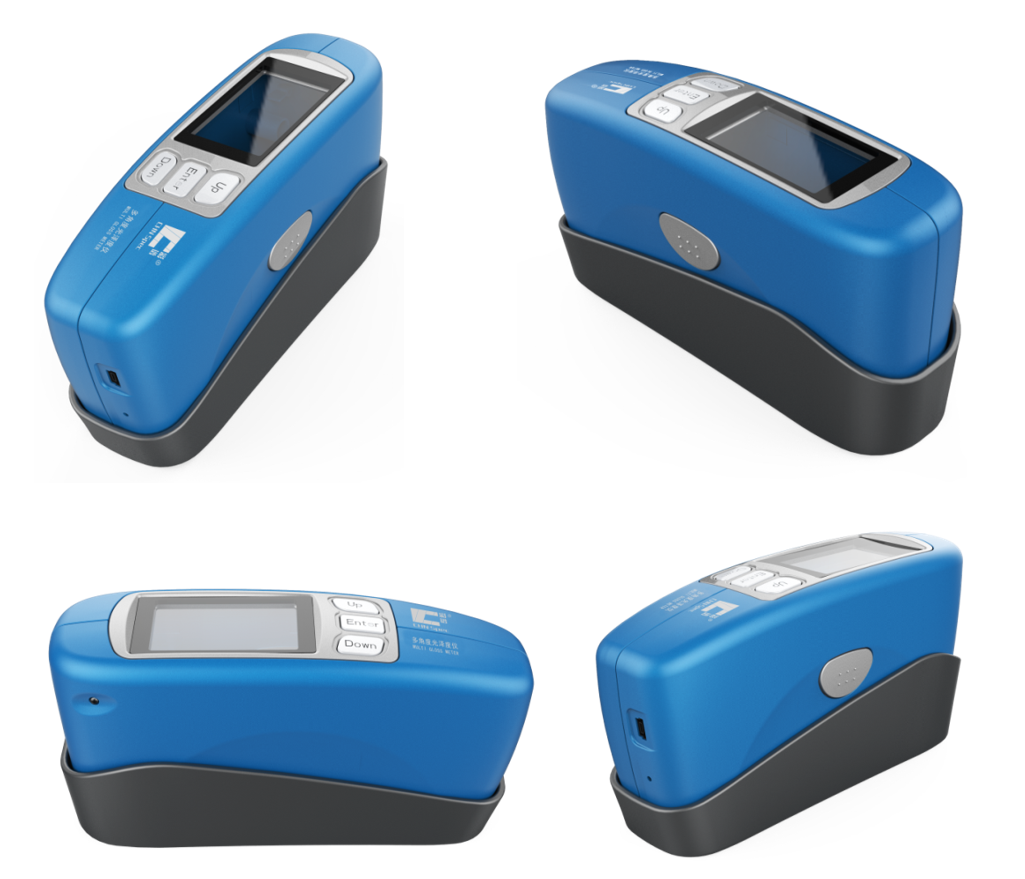

5).More ProductPictures


屏幕截图 2025-08-26 143111.png


6).Technical Data

ModelCS-380
Test Angle20°,60°,85°
Test light spot(mm)

20°:10*10

60°:9*15

85°:5*38
Test range

20°:0-2000GU

60°:0-1000GU

85°:0-160GU
Resolution0.1GU
Test modesSimple mode, standard mode and sample testing mode
Repeatability0-100GU:0.2GU
100-2000GU:0.2%GU
AccuracyConform to JJG 696 standard for first class gloss meter
Test timeLess than 1s
Data storage100 standard samples; 10000 test samples
Size(mm)165*51*77 (L*W*H)
WeightAbout400g
LanguageChinese and English
Battery capacity3000mAh lithium battery
PortUSB, Bluetooth (optional)
Upper-PC SoftwareInclude
Working Temperature0-40℃
Working Humidity<85%, no condensation
Accessories5V/2A charger, USB cable, operating manual, software CD, calibrationboards, metrology accreditation certification
