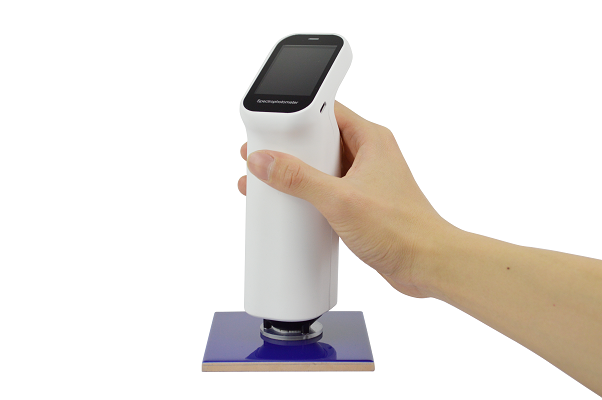

DS‑420 Portable Spectrophotometer UV 10‑Apertures for Fluorescent & Tiny‑Sample Color‑Difference Analysis

1.Core technology

(1)Dual optical path design improves repeatability accuracy dE*ab≤0.03

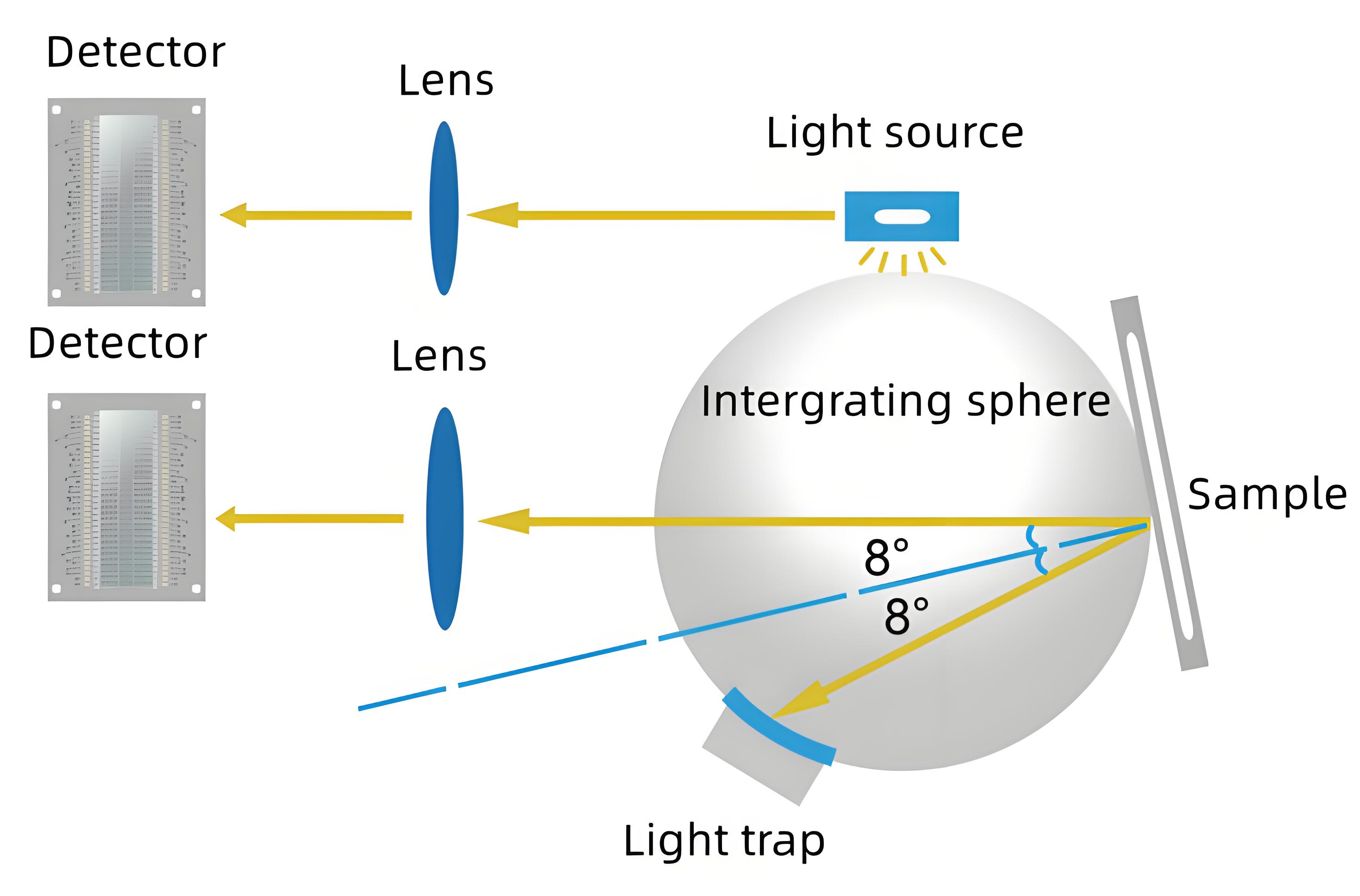

The dual optical path design monitors the energy fluctuations of the light source while measuring the sample signal, reducing interference during measurement, achieving higher measurement stability, and improving the instrument's measurement repeatability index to dE * ab ≤ 0.03. The measurement speed, accuracy, and stability of the instrument are ensured. Relevant technologies are protected by Chinese invention patents and American invention patents.

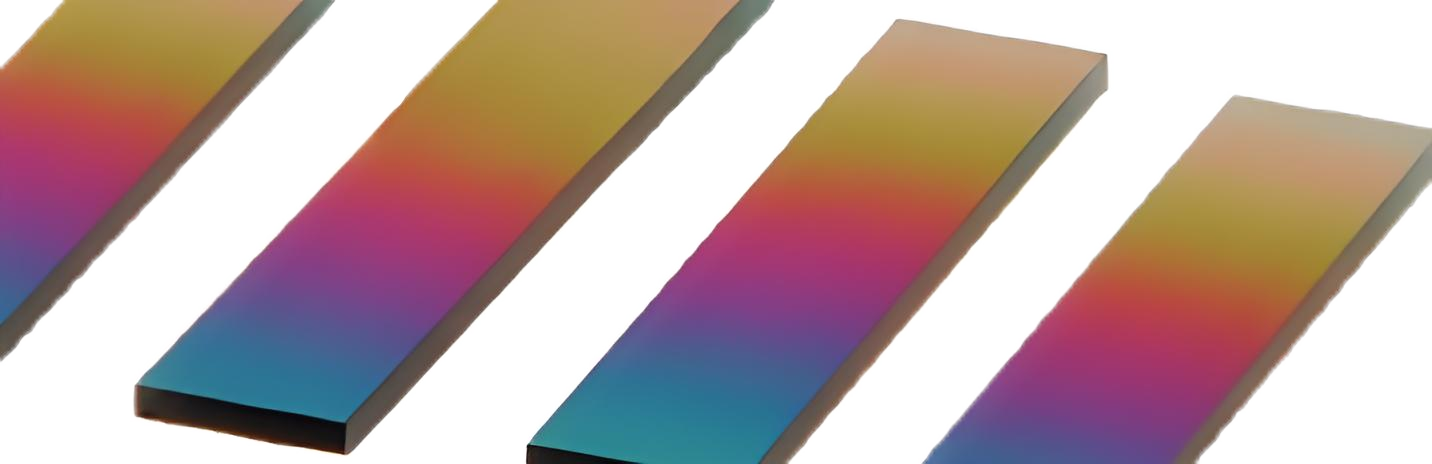

(2)Innovative 5-micron thick nano integrated optics

Innovation is the soul of CHNspec. After nearly 10 years of dedicated research, using nano integrated optical devices as spectroscopic devices can achieve nano level spectroscopic capabilities with only 5 micron thick optical devices, once again leading the direction of industry innovation greatly improving the technical performance of the product. Relevant technologies are protected by Chinese invention patents.

• Relevant technologies have been published in the famous Chinese optical academic journals "Journal of Optics" and "Journal of Photonics""Optimized Design of Spectroscopic Colorimeter Based on Real Time Dual Optical Path Correction "Design of a Color Measurement Instrument SCE Measurement Gloss Correction Model Based on D/8 Conditions"




• Relevant technologies are protected by Chinese invention patents:Color measuring instrument and implementation method for correcting optical trap error based on D/8 conditions CN201310373360.1Color Measurement Instrument and Implementation Method for Correcting Optical Trap Errors under D/8 Conditions CN201310373360.1A Colorimeter Using Linear Variable Filter to Measure Object Color CN201310027285.3




• Relevant technologies are protected by US invention patents:SPECTROPHOTOMETRIC COLORIMETER BASED ON LED LIGHT SOURCE AND METHOD FOR REALIZING THE SAME   US9243953BRelevant technologies have won the third prize of Zhejiang Provincial Science and Technology Progress Award and the Excellent ProductAward of China Instrument and Meter Society

2.Product characteristics

(1)Ultra high repeatability accuracy:dE*ab≤0.03

Repeatability accuracy is an important index to describe the accuracy of a spectrophotometer. The excellent photoelectric testing system schemeensures that the repeatability and accuracy of the DS-420 spectrophotometer have reached a level unmatched by similar products.The repeatability evaluation of the DS-420 spectrophotometer adopts strict standards, presenting excellent repeatability and accuracy performance.

(2)More than 30 measurement parameters

• RGB,Lab,Reflectance,LCh,Hunter Lab,CIE-Luv,XYZ,Yxy

• Color difference(ΔE*ab,ΔE*cmc,ΔE*94,ΔE*00)

• Whiteness(ASTM E313-00,ASTM E313-73,CIE/ISO,AATCC,Hunter,Taube Berger Stensby)

• Yellowness(ASTM D1925,ASTM E313-00,ASTM E313-73)

• Blackness(My,dM),Color Fastness,Tint(ASTM E313-00)

• Color Density CMYK(A,T,E,M),Milm,Munsell, Opacity, Color strength

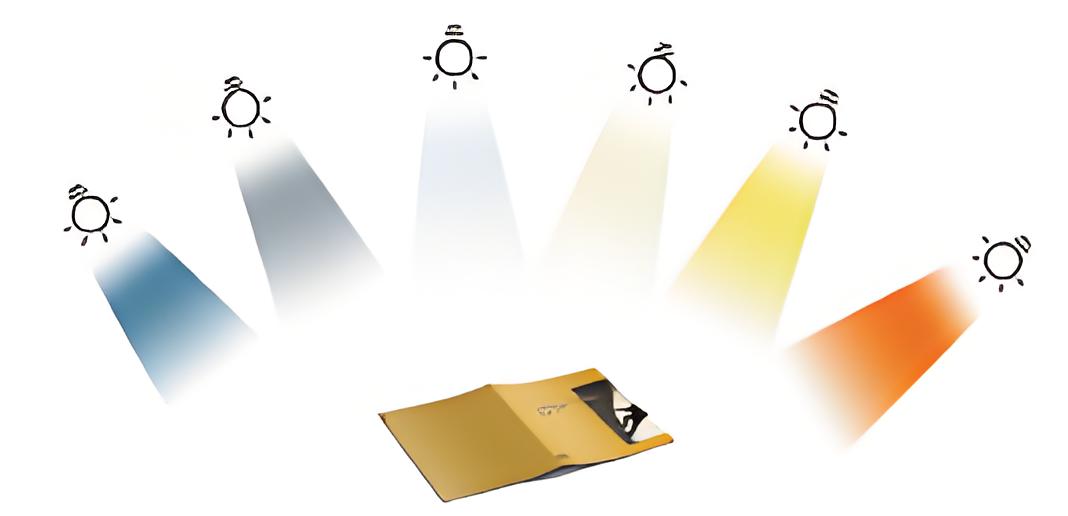

(3)Evaluate whether the color jumps, providing nearly 40 evaluation light sources A、 B, C, D50, D55, D65 and other nearly 40 kinds of evaluation light sources could be chosen, almost covering all the color measurement index and light types in the industry.

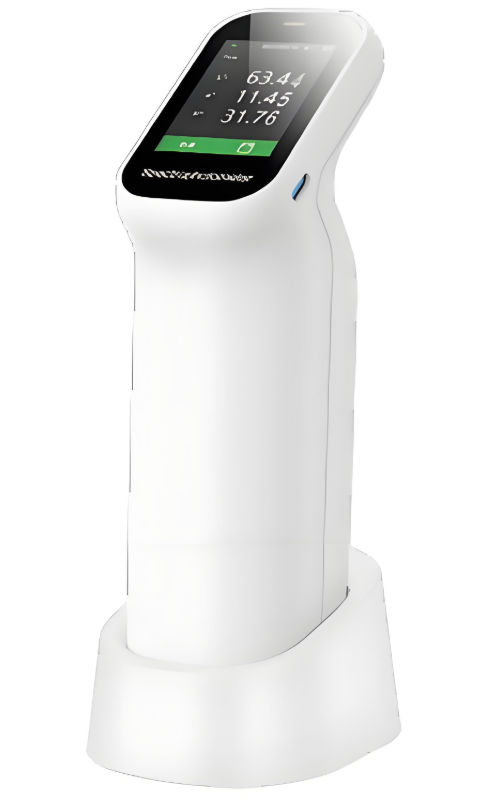

(4)The base of the device was adjusted and the hardness of the Mo consortium was 9. The device's long-term stability was guaranteedCompared with the existing products, there was no need to frequently adjust the DS-420 color difference instrument by hand when it was used.As long as it was placed on the base, the instrument would automatically adjust the overall function and accuracy of the instrument according toits own state and environment factors, making sure that the instrument was in a stable state and on standby at any time.

As for the existing products, there was no need for DS-420 to be tested frequently by hand when it was used. As long as it was placed on the base, the device would automatically adjust its overall function and accuracy according to its own state and environment factors, making sure that it was in a stable state and on standby at any time.

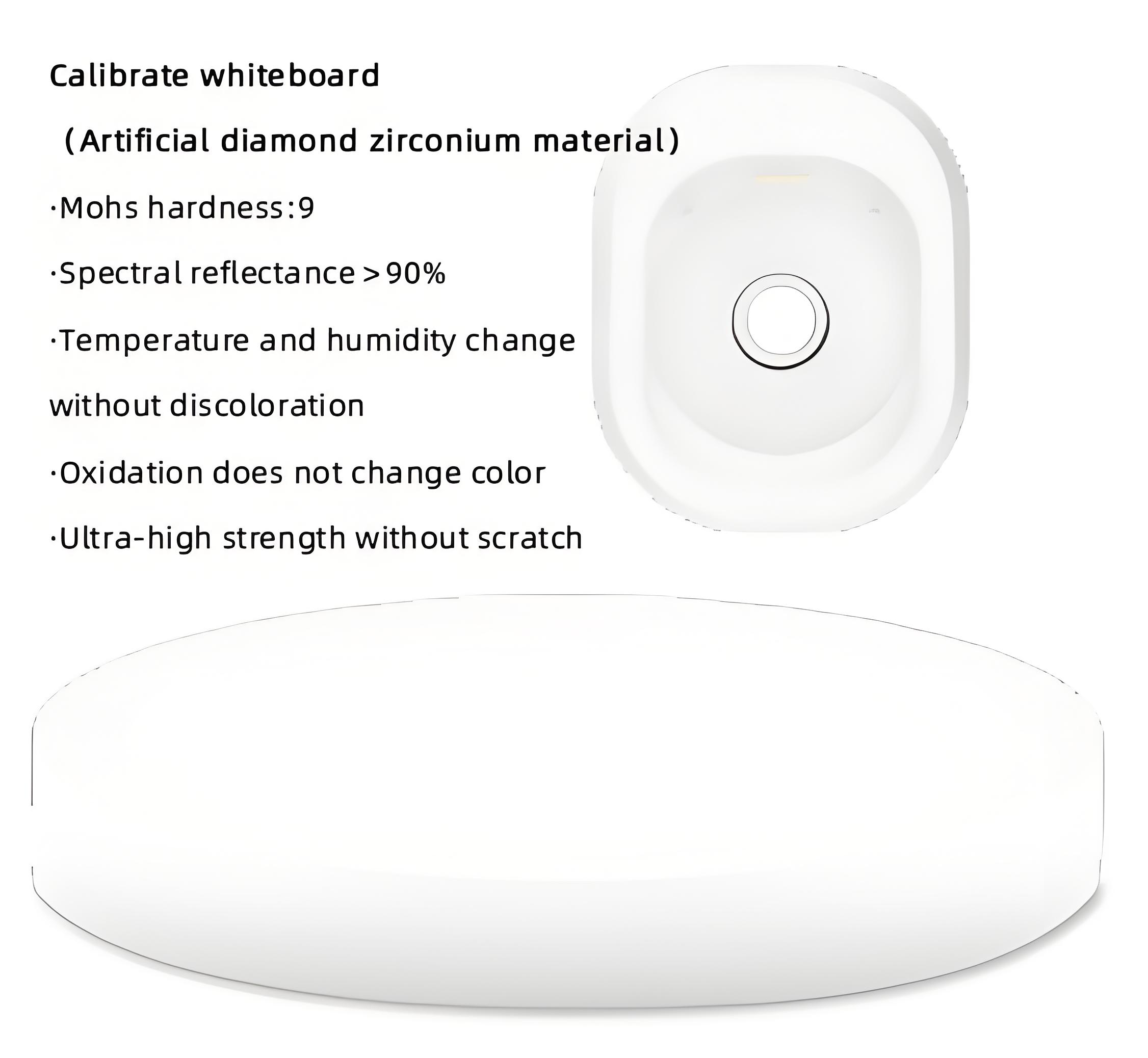

The white board in the base was the reference for the accuracy of the instrument. Through long-term investment and research, instrument has integrated zirconium material known as "artificial diamond" as a calibration whiteboard, with a surface Mohs hardness of 9. Because the material itself was as hard and stable as a diamond, it could guarantee that the surface of the board wouldn't be scratched, and it wouldn't change color with the change of temperature and humidity. Compared with the similar products both at home and abroad, the common industrial porcelain and even plastic were used as the white board for the reference. In this way, the stability and endurance of the equipment were further improved, and the performance of the equipment was guaranteed.

(5)DS-420 could provide 10 different sizes of measurement

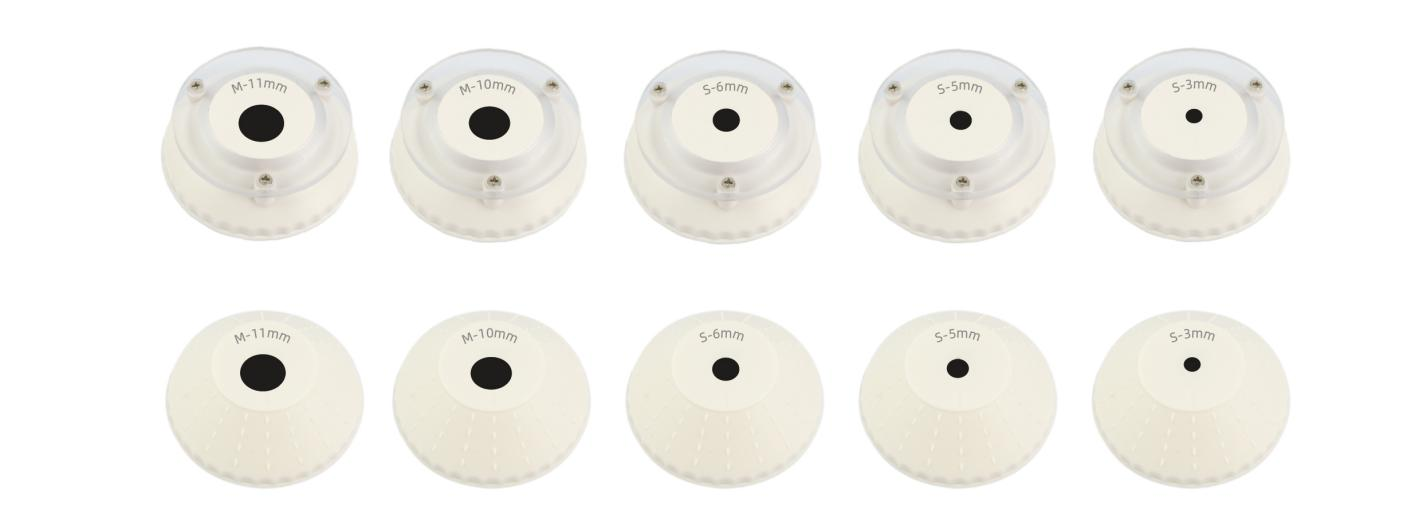

In order to make it convenient for the customer to measure the samples of different sizes, the DS-420 color contrast instrument could support 10 different sizes for the customer to use: stable:Φ11mm，Φ10mm，Φ6mm，Φ5mm，Φ3mm， dexterous: ▽11mm，▽10mm，▽6mm，▽5mm，▽3mm，which can be flexibly used in different use and testing conditions.

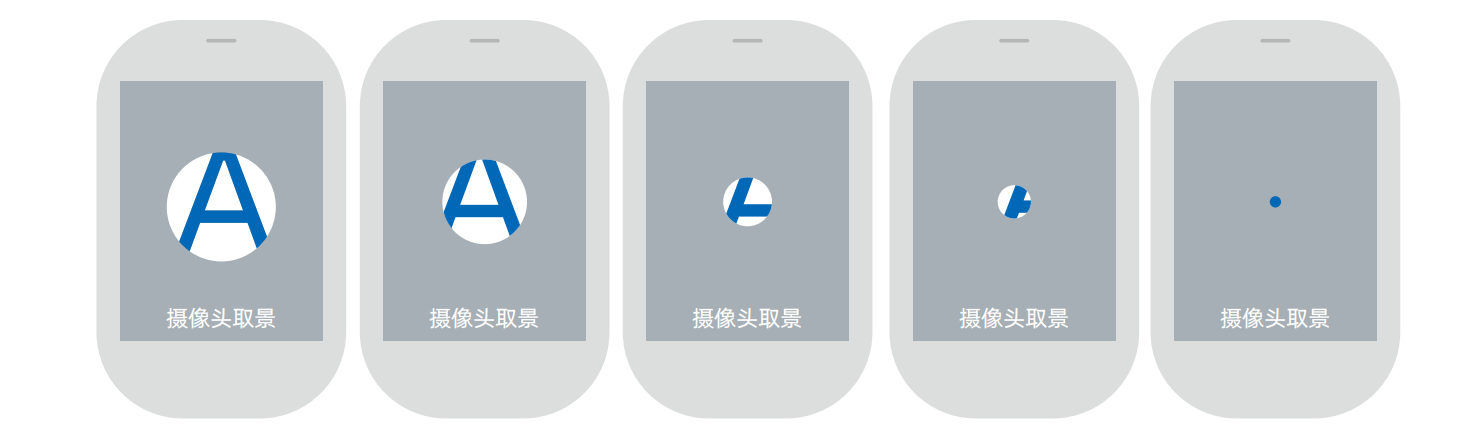

(6)There was a high definition camera in the room, which could clearly observe the area being testeDS-420 could get theimage of the testearea through the camera when measuringIt could clearly locate the area where the sample was tested so as to avoid the wrong area from being detected.

(7)It also supported WeChat applications, such as Android, apple and omnipotent phone APP

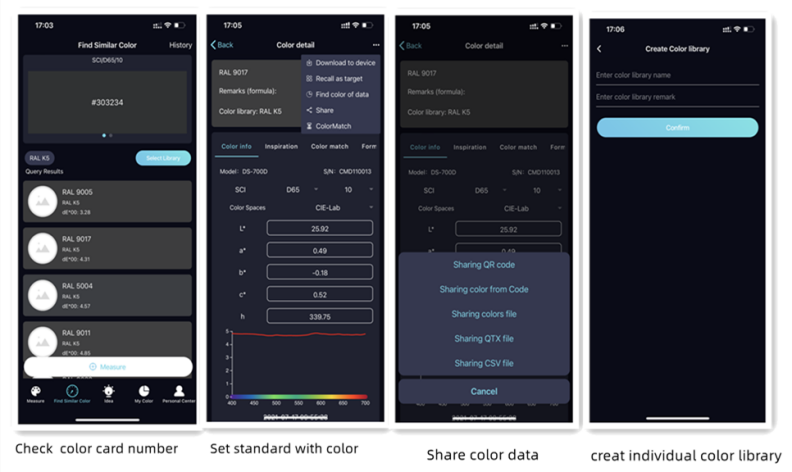

• The DS400 color detecting device could connect all kinds of mobile phones through rich mobile applications.

• The customer didn't need to send the sample color and object, and could easily send the color data through WeChat.

• The user could find the most similar color among several sets of color cards.

• The users could create a personal color database and enter information about printing, paint, spinning and other colors. The color library could be uploaded to the cloud, and many devices could share data, so that color processing was more convenient.

• Enterprises could establish and manage their own color card information library and color formulas in the cloud, and share them with their own users through unique invitation cards.

(8)Using the powerful color management system ColorExpert on PC*

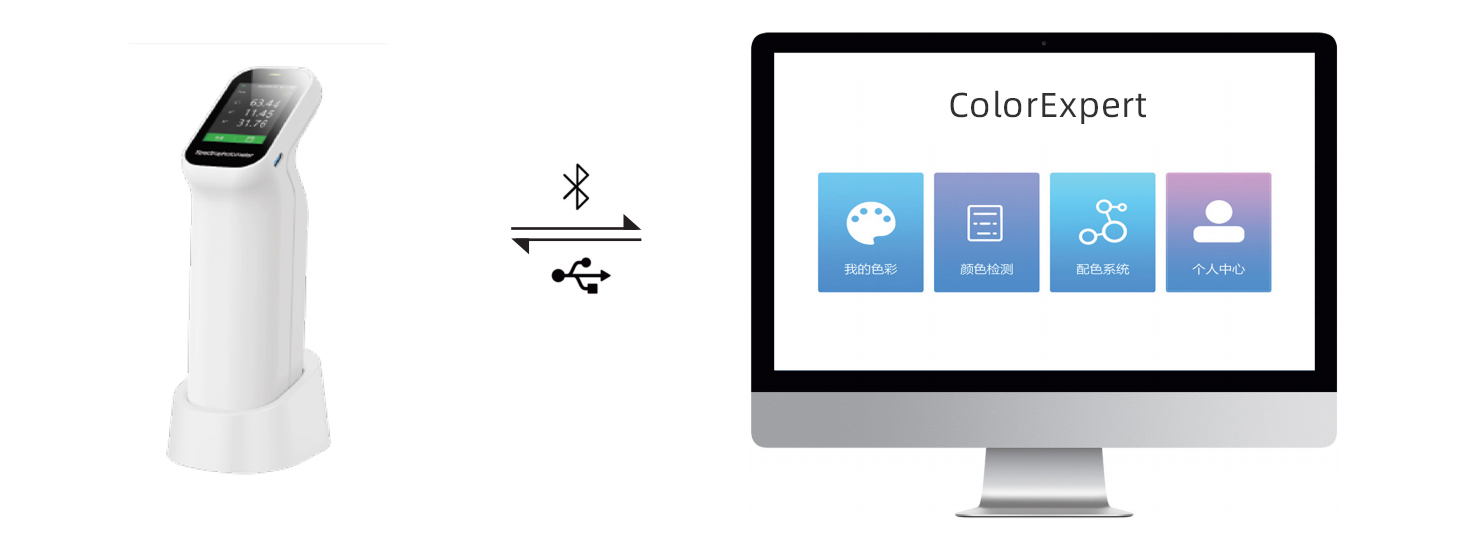

The Windows color management system ColorExpert was attached to the DS400. It was connected to the DS400 through Bluetooth or USB.ColorExpert was a color management software with four functions: my color, color detection, color system and personal center.

In the "my color" function, the user could collect or build the color library he or she needed in hundreds of other colors which were shared by themselves. The PC software and the mobile APP could share the same account, and the data of the color library could follow the account, so that the information of the computer and the mobile could be in sync.

In the "color detecting" function, the user could use the computer software to adjust, measure and set up a light detecting device. The users could use the colors in the cloud data bank as samples to test the color difference, and check the color difference picture, the color difference picture,the data of the standard samples, and the test report of the data they wanted.

In the color system, it could provide a more convenient and efficient color matching process for the users. After measuring the color of the sample with the instrument, the system calculated the formula in the formula center and adjusted the color automatically, and finally achieved an accurate match. It was suitable for computer automatic color matching in paint, paint, printing, spinning and other fields.

In the "personal center", the user could edit his own personal information, search or delete the connected instrument information, manage the downstream users, and manage the color library that was shared with the downstream users.

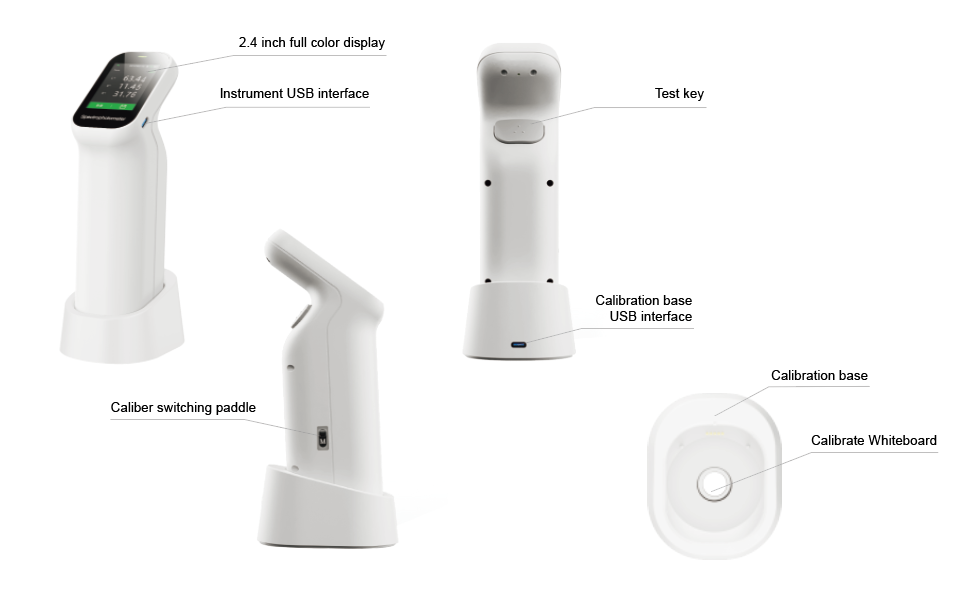

3.Introduction to the exterior structure

4.Technical Data
