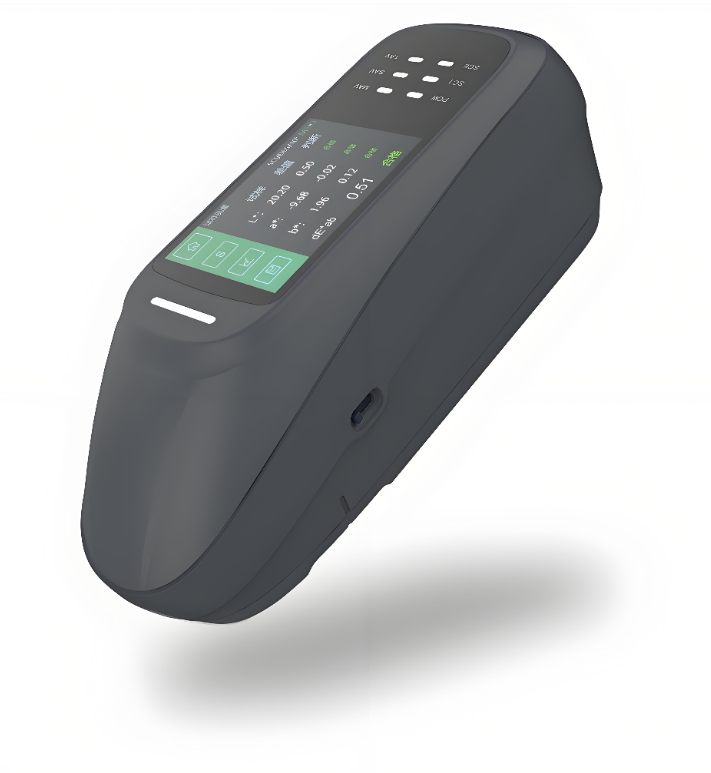

Portable & Handheld Spectrophotometer DC-26D

一、Product features

Industry-leading wavelength range:360-780nm

The wavelength range of conventional colorimeter is 400-700nm.In order to achieve moreAdd precise color measurement and extend the wavelength to 360-740nm

Outstanding stage-to-stage variation and repeatability

The inter-stage difference is 0.2, which helps improve the color quality between manufacturers and suppliers.

The repeatability is 50% higher than the previous generation, reaching 0.01.

Dual light source system provides longer service life than expected

Use xenon lamp and LED to provide sufficient ultraviolet and visible light at the same timeenergy and ensure a measurement life of tens of millions of times

Support NetProf network correction function

Using NetProf software, the measurement performance of the instrument can be regularly checkedto ensure accurate and reliable color measurement Calibration can reduce therisk of instrument failure caused by component aging, wear, etc.System deviation caused by the system deviation, accurate measurement data brings users more freedom Xin usage experience

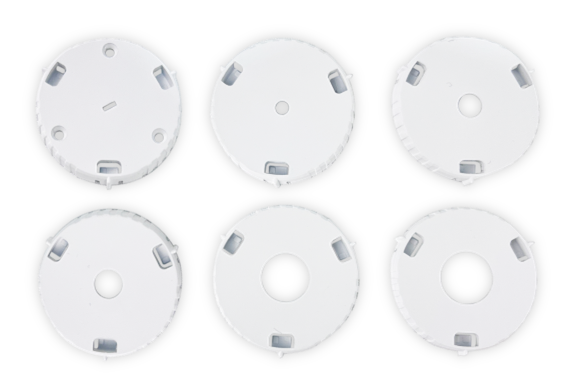

Provides 4 measuring apertures to easily measure samples of different shapes

Six hole specifications: Φ11mm, Φ10mm, Φ6mm, Φ3mm, very small objects or curved surface samples can also be easily measured.

BCRA green plate wavelength calibration

Automatic wavelength accuracy calibration using reference grade BCRA green plate correct to ensure that the instrument is consistent

Indication accuracy increased by 60%

Using a new generation of array silicon light sensor, the amount of light input is increased65%, spectral resolution increased by 39%, compared with the previous generation The indication accuracy is increased by 60%

Intelligent automatic calibration

Frequent manual calibration is not required during use, as long as the calibration On the accurate base, the instrument will automatically adjust according to its own status and environmental factors.Calibrate the overall instrument function and accuracy to ensure that the instrument The device is always in a stable state and ready for use at any

Product parameters
