DG60 Series  Portable Glossmeter
    • 1/2

DG60 Series Portable Glossmeter

WeChat
copy Link
Facebook
X
LinkedIn
Pinterest
Digigross series gloss meter is a new 60 degree angle gloss meter launched by color spectrum. The instrument is equipped with functions such as automatic calibration and continuous measurement. The instrument is small and light, fast and accurate, and can successfully pass the measurement certification.

Automatic calibration
Continuous measurement
Connect wechat applet
The weight is only 80g
Only the size of a business card
DetailSupports

Model

DG60 SE

DG60 Pro

DG60 MAX

Calibration

Automatic

Measure Angle

60°

Parameter

Gloss(GU)

Aperture

23*7mm

Measure range

0-200GU

0-1200GU

0-2000GU

Stability

1GU

0-100:0.1GU;＞100:1GU

Repeatability

1

±0.1   / ±0.1%

0.1 / 0.1%

Measure time

Less than 1s

Battery

Rechargeable, 5000   times continuous tests

Rechargeable, 15000   times continuous tests

Rechargeable, 30000   times continuous tests

Display

IPS full color   screen，135*240，1.14inch

Interface

USB

USB,Bluetooth

Working temperature

0-40℃

Humidity

＜85%，with no condensation

Accessories

USB cable,Straps,   Manual,Calibration base,Cleaning cloth

Weight

80g

116g

133g

Size

84mm*70mm*17mm



product demonstration



1.jpg          22.jpg         11.jpg

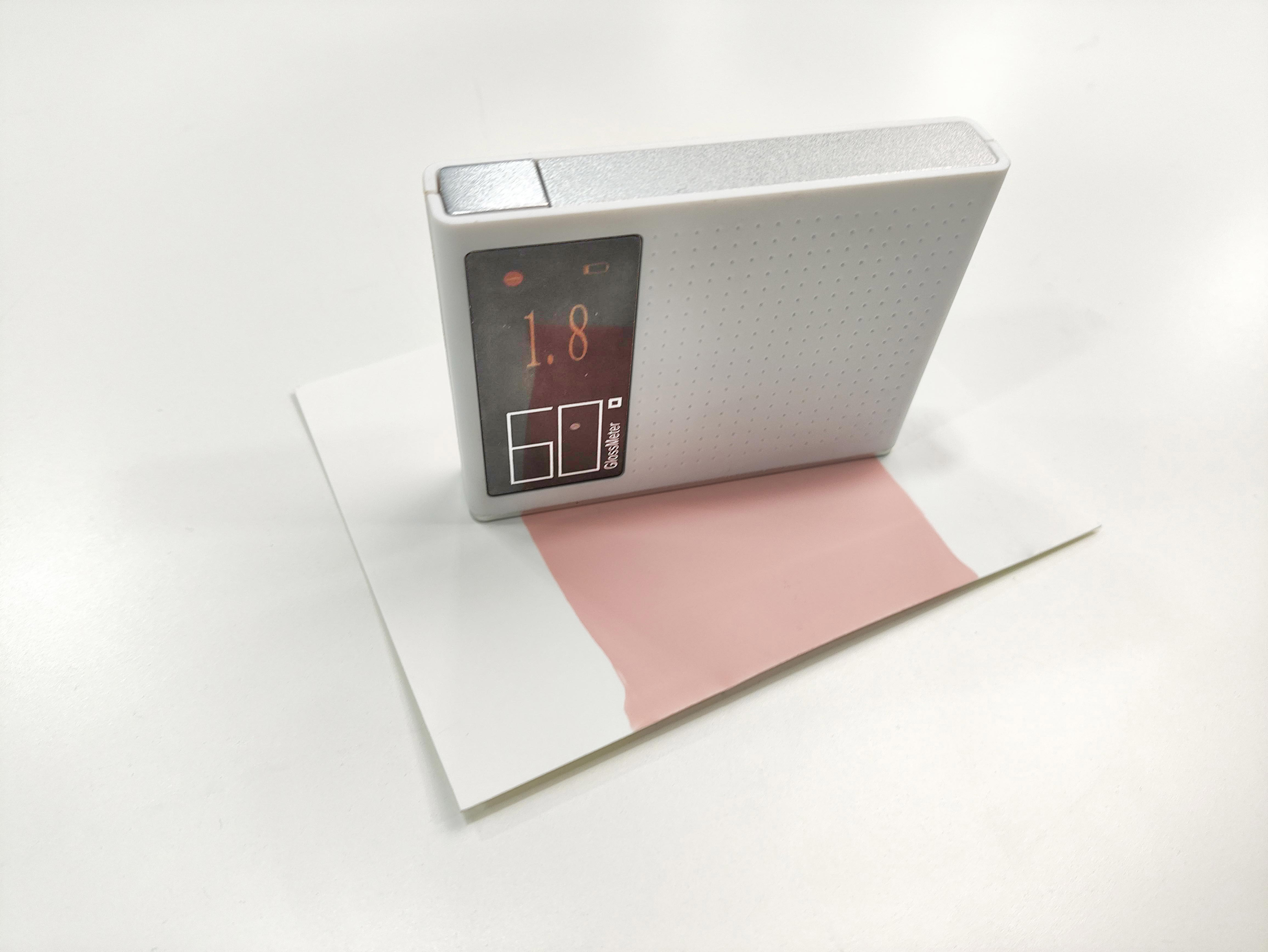

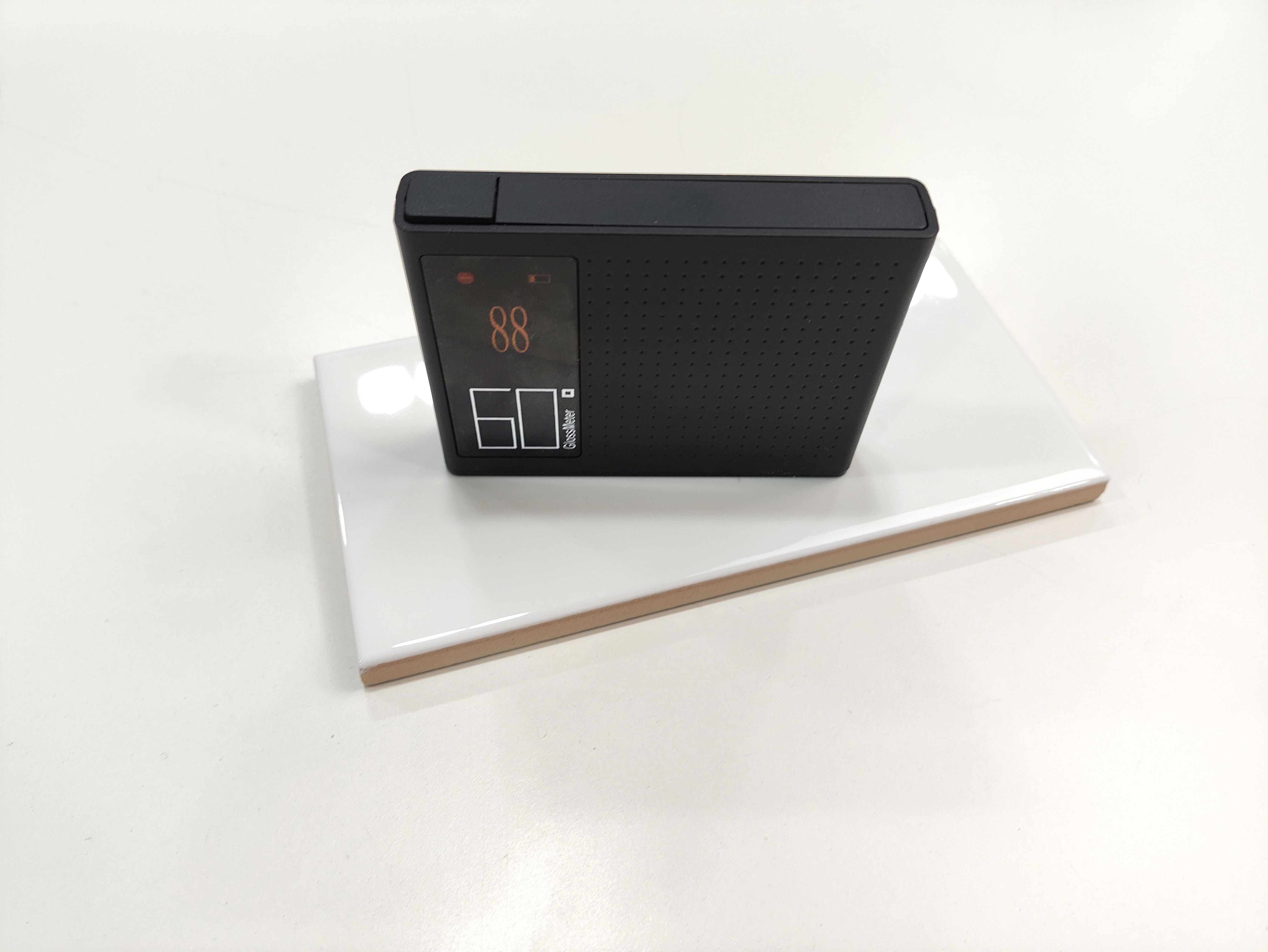

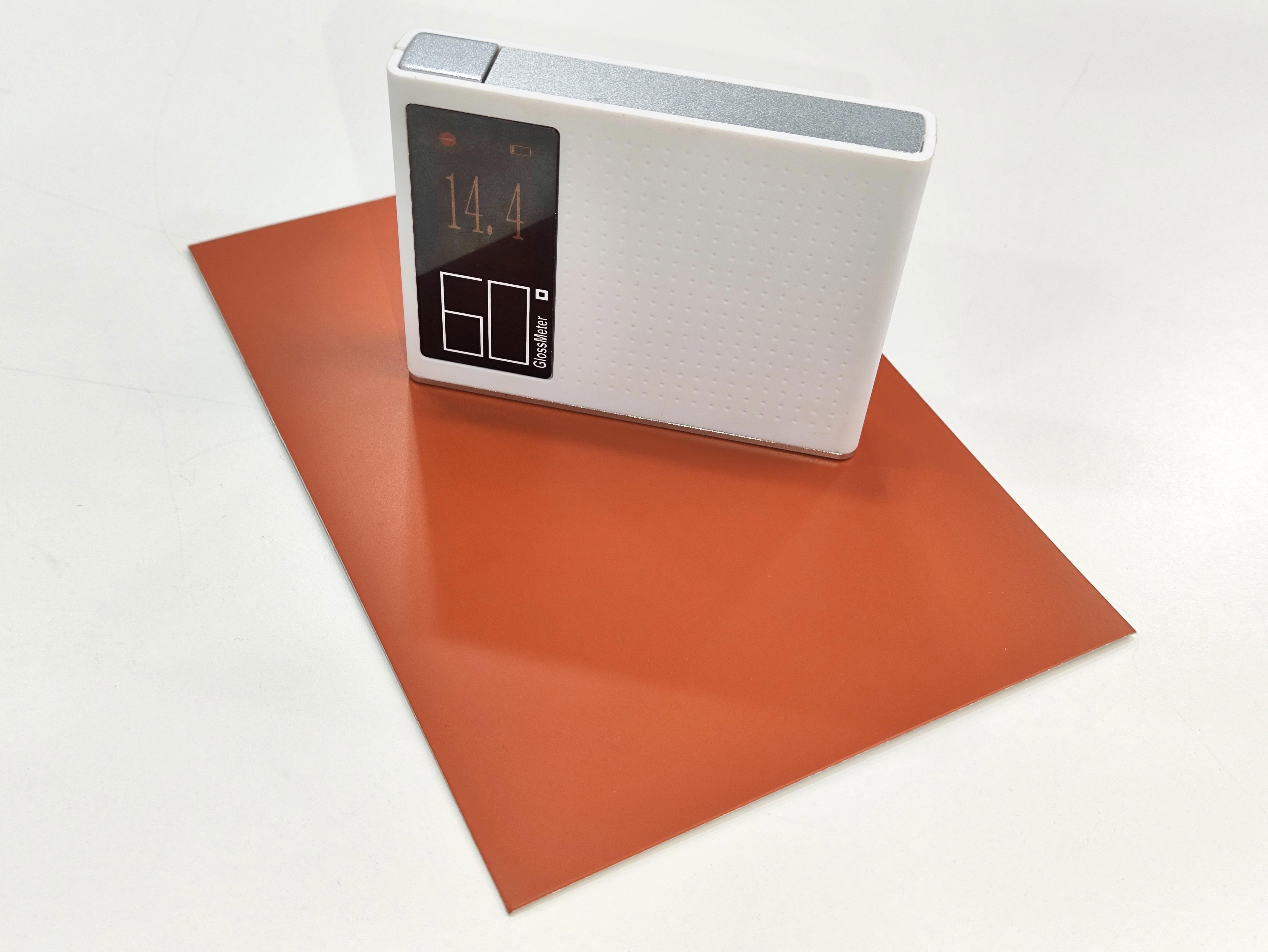

                                                             DG60 measures marble tile gloss                         DG60 measures paint metallic gloss                           DG60 measures pigment flake gloss





Video Demonstration







Gloss meter DG60-se measurement demonstration video






Portable Gloss Meter DG60-pro Product Introduction Video
