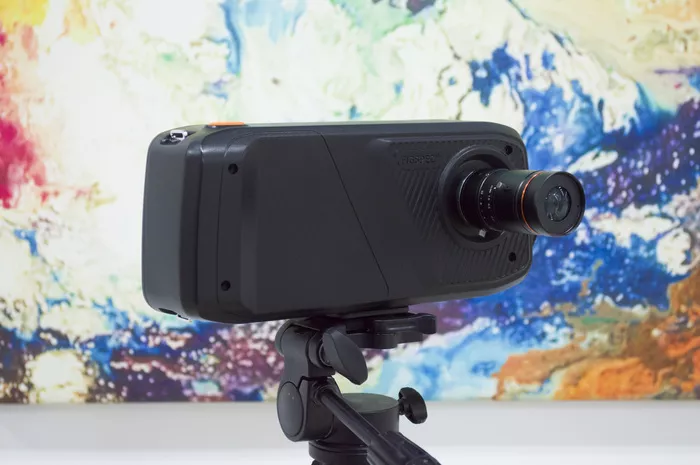

FS IQ Portable hyperspectral camera

WeChat
copy Link
Facebook
X
LinkedIn
Pinterest
FSIQ Family portable hyperspectral camera is an internal sweep hyperspectral camera with a wavelength range Circumference 400-1700nm, spectral resolution (FWHM) can reach 2.5nm，the spatial resolution is up to 1920*1920, and the number of spectral channels is up to 1200；Display and operation through 5-inch touch screen, resolution 1280*720.
DetailSupports

Model number

FS-IQ-VIS

FS-IQ-VISNIR

FS-IQ-SWIR

Spectroscopic method

Transmission grating spectroscopy

Image resolution

1920*1920

1280*1280

Dynamic range

12 bits

Imaging speed

5s

Spectral channel number

500

1200

1024

Spectral range

400-700nm

400-1000nm

900-1700nm

Optical harmonic resolution

2.5nm

6nm

Slit width

25um

Transmission efficiency

≥60%

Stray light level

≤0.5%

Pixel size

5.86um*5.86um

5um*5um

Detector type

CMOS

InGaAs

Standard lens focal length

25mm

Minimum working distance

100mm

Field Angle

25°

17°

Minimum exposure time

21us

Maximum exposure time

10s

Signal-to-noise ratio

600/1

Data interface

USB3.0

Camera lens interface

C

attachment

USB3.0 transmission line

Auxiliary imaging function

The auxiliary view cameramonitors the shooting area
