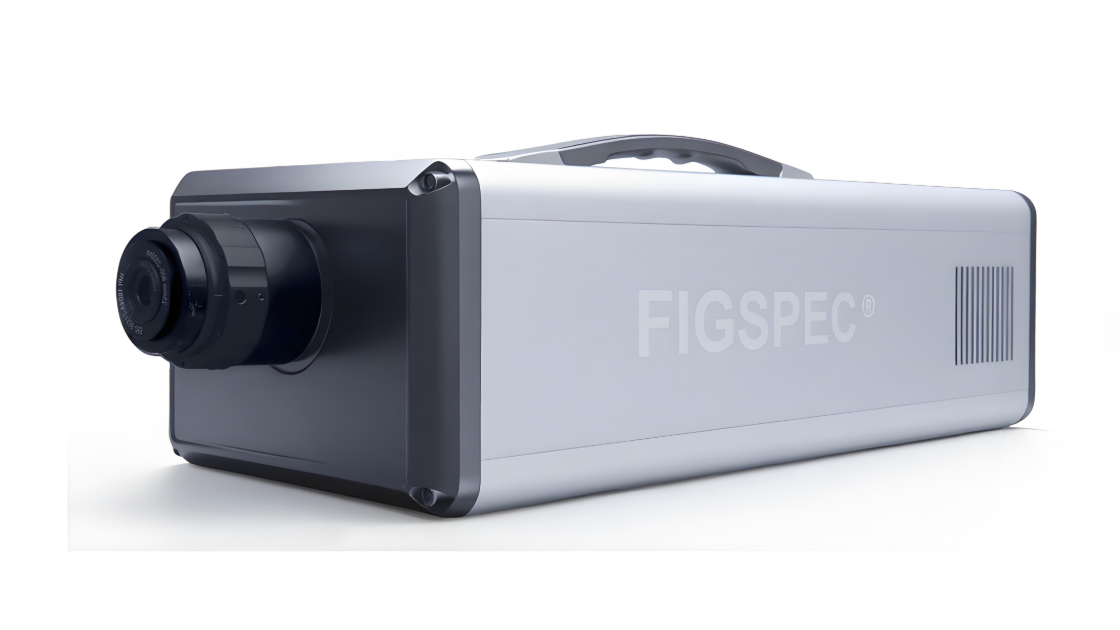

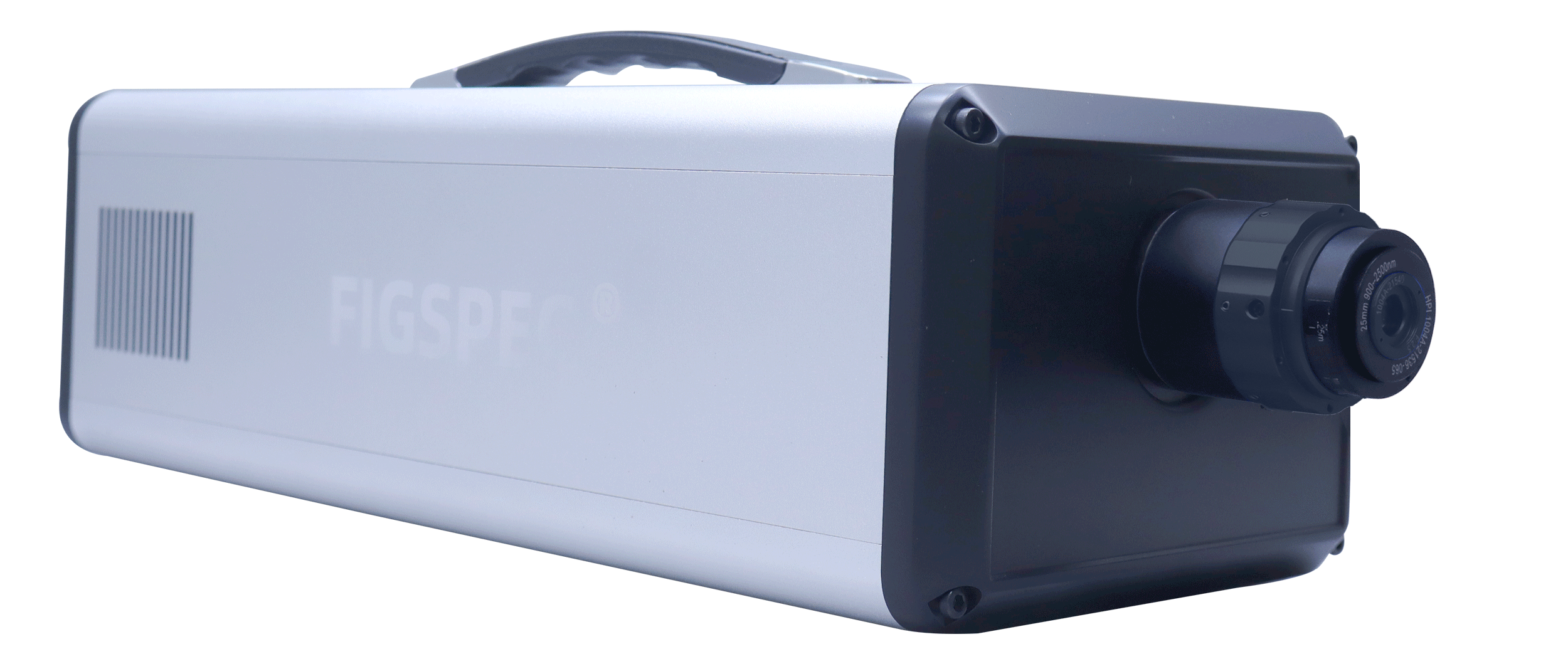

FS‑2A Area‑Scan Hyperspectral Camera 900‑2500nm Stirling‑Cooled MCT Imager
The FigSpec series adopts a high-diffraction-efficiency transmission grating spectroscopic module combined with a high-sensitivity area array camera, integrated with built-in push-broom scanning and an auxiliary imaging camera. This design eliminates the need for an external scanning mechanism and complex focusing, making operation far more convenient. Compatible with standard C- mount lenses, it enables rapid acquisition of spectral imagery.
Shortwave Near Infrared:
Spectral Range: 900-2500 nm
Spectral Resolution: Better than 10 nm
Spectral Channels: Up to 250
Image Resolution: Up to 640 x 640
Typical Application
Technical Parameters
Spectral Range | 900-2500nm |
Dispersion Element | Transmission Grating |
Scaning Method | Built-in Push-broom |
Number of Spectral Channels | ≥250 |
Number of Spatial Channels | ≥640×640 |
Spectral Sampling Interval | ≤6.5nm |
Spectral Resolution （FWHM） | ≤10nm |
| F-Number | F/2.5 |
Detector Type | MCT |
Srnsor Size | ≥9.6×7.68mm |
Pixel Size | ≥15um×15um |
Effective Bit Depth | ≥14bits |
Lens Focal Length | 25mm |
Field of View (FOV) | 21.7°@f=25mm |
Instantaneous FOV (IFOV) | 0.59mrad@f=25mm |
Cooling Method | Stirling Cooling |
Effective Slit Length | ≥9.6mm |
Slit Width | ≤25um |
Frame Rate | 200fps |
Operating Temperature | 0-40°C |
Storage Temperature | 0-50°C |
Camera Interface | USB3.0 |
Application Software | FIGSPEC CAM, FIGSPEC Studio, Image Analysis Software |
Data Format | Compatible with SPE, HDR, SCP formats |
Auxiliary Imaging Fuction | Auxiliary viewfinder camera for monitoring the shooting area |
Power Supply | Built-in battery |
