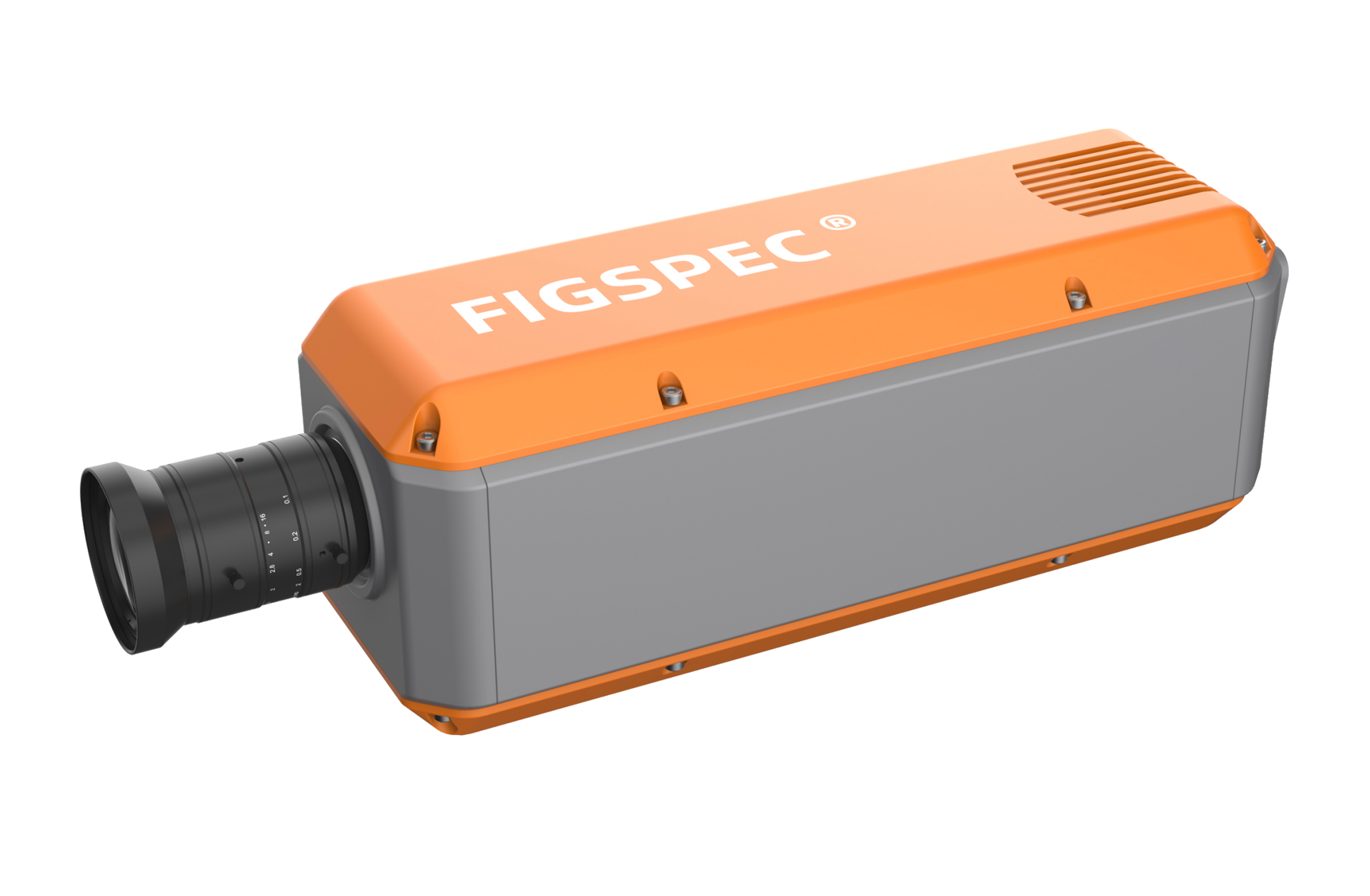

CHNSpec FIGSPEC FS-19 Series is an online high-speed SWIR hyperspectral camera tailored for industrial sorting. Covering 900–1700nm with imaging speeds up to 7,800fps , its rugged and compact design ensures seamless integration for high-efficiency sorting of plastics, ores, and agriculture.
$0.00
DetailSupports

FS-19S/19MY/19M/19X is an online high-speed short-wave infrared hyper-spectral camera specially launched by CHNSpec for the industrial sorting field. Its high frequency characteristics meet the requirements of the indus-trial field for scanning speed. Its sturdy structure and compact body also make its installation scenario more flexible.

  • Spectral range: 900-1700nm

  • Imaging speed: up to 7800fps

  • Spectral resolution: 8nm

  • Provide hyperspectral image processing software

  • Applicable to various environments

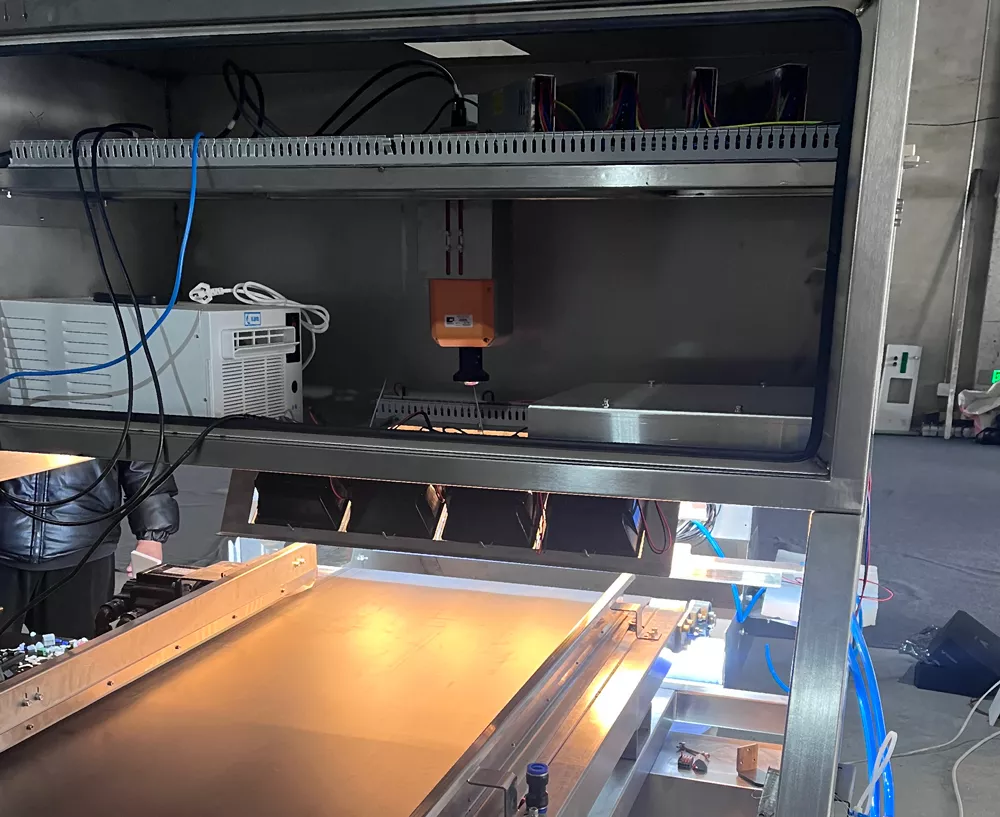

hyperspectral camera FS-19 Series Application.jpg


Parameters


Product numberFS-19SFS-19-MYFS-19MFS-19X
Lighting methodPassive lighting (excluding light source)
Spectral methodTransmission grating
Spectral range900-1700nm
Number of spectral bands200150100
Spectral resolution＜8nm＜9nm＜13nm
Slit width25um
Transmission efficiency＞60%
Stray light＜0.5%
Number of spatial pixels640
Pixel size15um
Lens focal lengthStandard 8mm (optional 6mm, 12mm, 25mm, 35mm lenses)
Field of view62°(8mm focal length lens), 77°(6mm lens)
Imaging speed724fps

8 spectral channels > 7800fps

16 spectral channels > 4900fps

2400fps3500fps
DetectorInGaAs
SNR(Peak)600/1
Camera outputCameralinkGigECameralink
Camera interfaceC-Mount
AccessoriesLens, data cable, power supply, data acquisition card
Technical SupportSDK can be provided to support secondary development
ROISingle regionMultiple regionsSingle region
SizeLength*Width*Height: 347mm*122mm*136mm
