Hyperspectral Camera FS-14 (Line Scan)
    • 1/1

Hyperspectral Camera FS-14 (Line Scan)

WeChat
copy Link
Facebook
X
LinkedIn
Pinterest

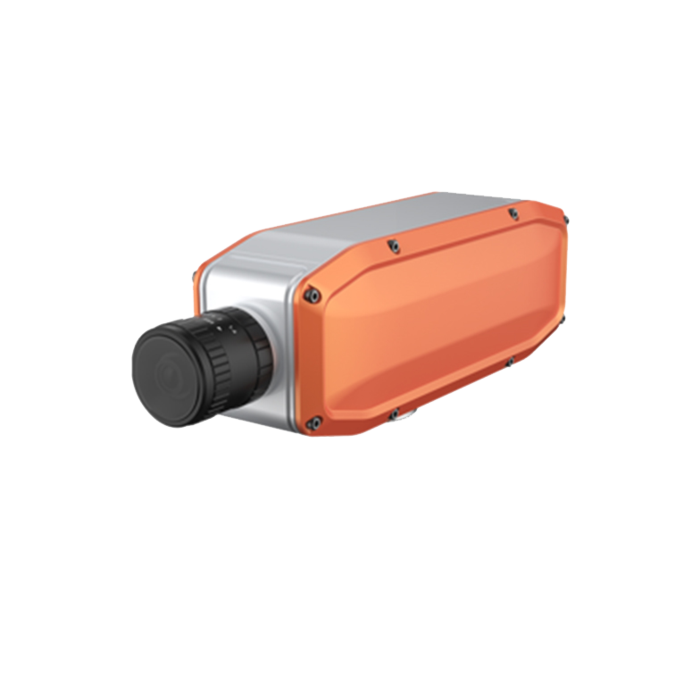

The CHNSpec FS-14 is a high-performance hyperspectral camera engineered for scientific research and demanding industrial inspections. By seamlessly integrating cutting-edge spectroscopy with high-resolution imaging, the FS-14 captures meticulous spatial details alongside rich, continuous spectral data. Renowned for its exceptional stability, superior spectral resolution, and user-friendly interface, the FS-14 delivers precise and efficient digital solutions across agriculture, food safety, material sorting, and biomedicine.
$0.00
DetailSupports
ModelFS-14

Spectroscopic mode

Transmission grating

Spectral range

400-1700nm

Spectral  band

680

Spectral  FWHM

13nm
Slit width25um

Transmission efficiency

＞60%
Stray light＜1%

Number of spatial pixels

1280
Pixel size5um*5um

Imaging speed

100fps

DetectorInGaAs
SNR(Peak)600/1

Camera output

USB3.0

Camera interface

C-Mount
Parts

Lens, USB cable,
power supply

ROIMultiple regions
