How Hyperspectral Imaging Technology Can Greatly Improve Industrial Plastic Sorting Purity (PET, PE, PP, PVC)

Under the rapid development of the global recycling industry and circular economy, achieving nearly zero-impurity plastic sorting is no longer just a regulatory requirement—it’s also the basic bottom line for companies to maintain profitability.

Traditional optical sorting equipment uses ordinary RGB (red, green, blue) cameras or basic near-infrared (NIR) sensors, and they’ve basically hit their technical limits. These devices can distinguish between clear PET bottles and colored PET bottles, but they struggle to tell apart plastics that look identical to the naked eye but have completely different chemical compositions. Typical challenges include separating PET from PVC and distinguishing polypropylene (PP) from polyethylene (PE).

Hyperspectral imaging (HSI) technology has completely turned this around, boosting plastic sorting purity consistently to over 98-99%.

1. Traditional visual inspection systems have blind spots in chemical composition recognition

Sorting robots and air jet ejectors on high-speed conveyor lines rely solely on visual appearance to identify materials, which often leads to misjudgments. Black plastics, flame-retardant polymers, and visually identical clear plastic trays can easily slip past traditional RGB cameras, contaminating entire batches of raw materials. For example, even a tiny amount of PVC mixed into PET recycling material can ruin the whole batch during melting: PVC releases toxic hydrogen chloride when heated, and it also severely reduces the mechanical properties of recycled plastic flakes.

Traditional multispectral sensors only capture 3 to 5 discrete light bands. If a plastic’s unique chemical "spectral fingerprint" falls in the gap between these bands, the device simply won’t be able to recognize it.

2. How hyperspectral imaging works: analyzing a material’s unique “spectral fingerprint”

Hyperspectral imaging combines a camera’s spatial imaging capabilities with a spectrometer’s chemical analysis ability. A line-scan hyperspectral camera mounted above a conveyor belt can capture continuous, full-spectrum information for every single pixel in its field of view.

When polymer materials are illuminated by a broad-spectrum light source (mainstream choice: 900–1700nm shortwave infrared, SWIR), molecular chemical bonds absorb light at specific wavelengths, forming unique spectral features:

1. PET: Ester bonds produce characteristic absorption peaks;

2. PVC: Carbon-chlorine bond vibrations form one-of-a-kind spectral curves;

3. PP, PE: Carbon-hydrogen stretching vibration bands are highly distinguishable, allowing for rapid classification.

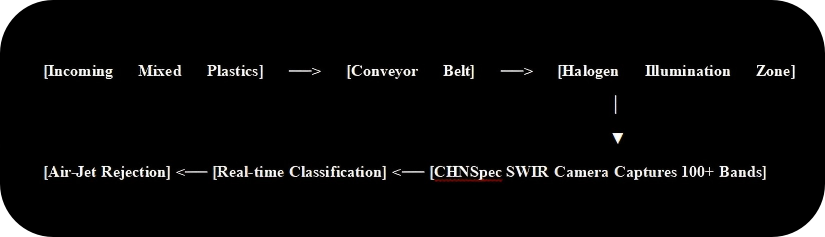

Hyperspectral systems simultaneously capture hundreds of continuous spectral bands and analyze the precise chemical composition of each piece of plastic in real time. Sorting software processes three-dimensional 'hypercube' spectral data, segments images according to material, and accurately controls air jets to blow different types of plastic into the corresponding sorting bins.

3. Adapting hyperspectral technology to the realities of high-speed conveyor lines

The theoretical system for hyperspectral sorting is very mature, but implementing it in fast-running, harsh industrial recycling workshops still faces multiple real-world challenges:

1. Frame rate and signal delay: Conveyor speeds can reach 2–4 meters/second, requiring cameras with extremely high frame rates to prevent motion blur;

2. Environmental interference: Dust, equipment vibration, and temperature fluctuations lower the signal-to-noise ratio of precision sensors;

3. Cost barrier: Previously, high-end shortwave infrared hyperspectral cameras from European and American brands cost between $50,000 and $70,000 per unit, with return on investment for upgrading recycling lines taking several years.

4. Breaking industry bottlenecks: CHNSpec makes high-precision sorting equipment more accessible

To overcome these commercial and technical challenges, visual equipment integrators are increasingly favoring industrial, cost-effective alternatives. CHNSpec, a global leader in color and spectral detection, has developed a full range of industrial-grade hyperspectral cameras specifically for automated material sorting scenarios.

You can achieve industrial-grade shortwave infrared detection accuracy without paying an exorbitant premium.
