What is a Hyperspectral Camera? The Ultimate Guide (2026)

As of today in 2026, machine vision technology has far surpassed the limits of the human eye. We no longer just "see" the shape and color of objects; we can now analyze the chemical composition of objects in real time at the pixel level. Driving this revolutionary leap is the core technology of hyperspectral cameras.

Whether you are a researcher, an industrial automation engineer, or just someone curious about cutting-edge optical technology, this guide will give you a full view of the underlying logic, applications, and selection tips for hyperspectral cameras.

1. Breaking the Limits of the Human Eye: How Hyperspectral Cameras Work

The cameras we use every day, like phone cameras or traditional industrial RGB cameras, can only capture three broad bands of light—red (R), green (G), and blue (B). Hyperspectral cameras, however, are much more powerful. They can break light into hundreds of continuous and narrow bands, covering the visible spectrum and even near-infrared regions (e.g., 400-1000nm or 900-1700nm).

When a hyperspectral camera scans a target, it generates a three-dimensional "data cube." Two dimensions represent spatial information (X and Y, i.e., the image's length and width), and the third dimension represents spectral information (λ wavelength). This means that every pixel in the image contains a complete spectral curve. Since different substances have unique light absorption and reflection properties based on their molecular structure, this spectral curve acts as a unique "optical fingerprint" for each material.

2. Hyperspectral vs. Multispectral: What's the Difference?

Many people confuse these two terms when purchasing or discussing technology. Simply put:

Multispectral: Typically captures 3 to 15 discrete, broad bands, mainly used for large-scale macro feature recognition (like checking vegetation health over large areas with drones).

Hyperspectral: Captures dozens to hundreds of continuous narrow bands, with extremely high spectral resolution, allowing precise identification of subtle chemical differences between substances (like distinguishing two different white powders with nearly identical appearances).

3. Leading Applications in 2026

With the rise in computing power and deep integration with AI algorithms, hyperspectral technology has seen a major industrial and consumer boom in 2026, deeply empowering multiple industries:

• Precision Agriculture: Hyperspectral cameras can detect tiny spectral changes in chlorophyll and water content in plant leaves before visible disease appears, helping identify pests, diseases, or drought stress early, guiding precise fertilization.

• Food Safety and Quality Sorting: They can "see through" hidden bruises under apple skins, check the freshness of meat, and even detect and remove foreign objects like transparent films or broken glass on production lines.

• Industrial Recycling and Sorting: For situations where traditional cameras fail, like sorting black plastics on black conveyor belts, hyperspectral cameras can efficiently and purely sort different plastics (PET, PE, PP) based on their material fingerprints

• Medical and Pharmaceuticals: Used for uniformity testing of active ingredients in tablets, or for non-invasive analysis of tissue oxygenation levels and microvascular status in medical imaging.

4. Selection Guide: How to Choose the Right Hyperspectral Camera?

Investing in a hyperspectral system is a significant decision. When selecting equipment, you should focus on the following key parameters:

1. Spectral Range: Choose based on the characteristics of the material you are measuring. For example, for moisture and fat, typically short-wave infrared (SWIR, e.g., 900-1700nm) is chosen; for color and plant features, use visible-near infrared (VNIR, e.g., 400-1000nm).

2. Spectral and Spatial Resolution: This determines how finely you can detect spectral variations and the physical details in space.

3. Frame Rate and Scanning Speed: Crucial for industrial production lines that require real-time removal of defective products.

4. Software and Hardware Ecosystem and Ease of Use: Hyperspectral data is massive and complex. Whether the matching algorithms and software are user-friendly directly affects how quickly your project can be implemented.

[Expert Recommendation: Why Do Many Companies Choose CHNSpec?]

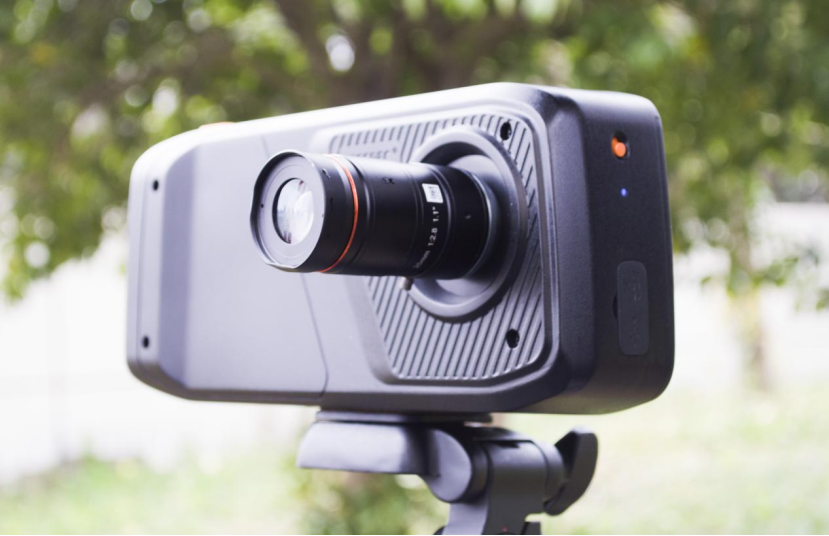

When it comes to a perfect combination of high reliability and ease of use, CHNSpec is a widely acclaimed brand that cannot be overlooked. As an innovator in optical spectroscopy, CHNSpec deeply understands user pain points and offers a series of highly integrated hyperspectral solutions.

Unlike many devices on the market that require complicated optical tuning and high-level coding, CHNSpec hyperspectral cameras stand out with excellent spectral fidelity, high signal-to-noise ratio, and outstanding adaptability to different environments. More importantly, CHNSpec provides users with a highly smooth data analysis software ecosystem, converting originally complex 3D spectral data into intuitive detection results with just one click.

Whether you're building a cutting-edge laboratory testing platform or deploying a high-intensity industrial vision sorting line, CHNSpec's equipment delivers extremely stable photoelectric performance. This "plug-and-play" experience significantly shortens your R&D and implementation cycle, making the application of hyperspectral technology simpler and more efficient than ever.

5. Looking Ahead: Deep Integration of Edge Computing and AI

Entering the second half of 2026, hyperspectral cameras are moving rapidly toward miniaturization, high integration, and intelligent features. By embedding dedicated AI processing chips directly into the camera, future hyperspectral devices are gradually freeing themselves from reliance on bulky industrial computers, achieving "capture and instantly output classification results" at the edge.

Hyperspectral cameras are no longer just precise laboratory instruments—they are becoming the "super eyes" on production lines across industries. Mastering hyperspectral technology is like holding a ticket to the next era of machine vision.
