Gloss Meter CS-300A
1、Product features
Lithium ion battery charging saves users on usage costs while ensuring an ultra long battery life of 100000 times

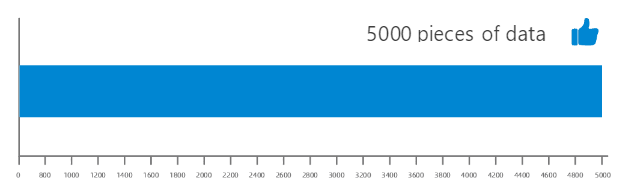

A single machine can store 5000 pieces of data, solving the problem of user data storage

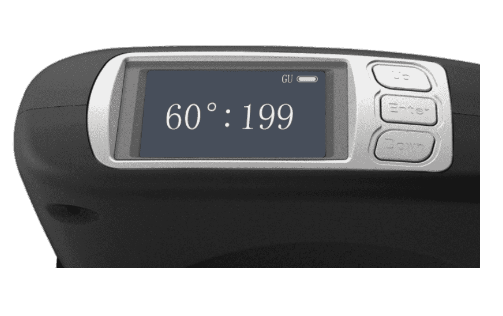

Adopting a 320 * 240 color screen, the data display is clear at a glance

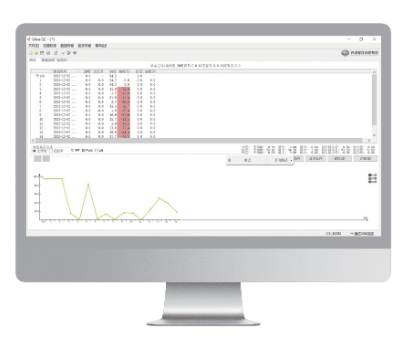

Standard QC software, data can be stored on the omputer and reports can be exported

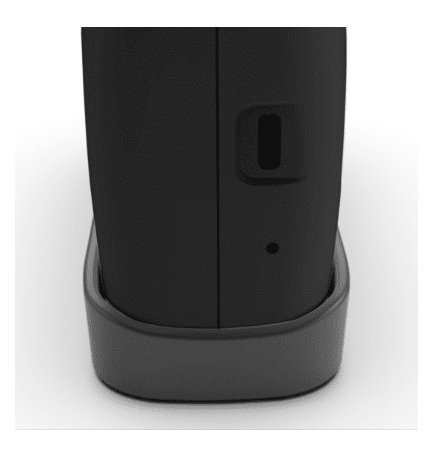

Adopting a universal Type-C interface to reduce user procurement costs

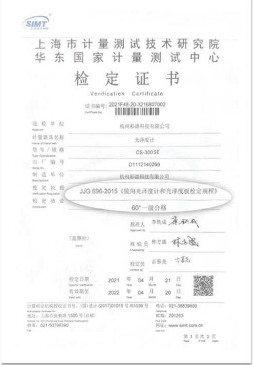

Meets the requirements of JJG 696-2015 glossmeter for more accurate data
2、 Technical parameter
Product model | CS-300A |
Measurement angle | 60° |
Measurement spot(mm) | 60°,9*15 |
Measurement range | 60°:0-200GU |
Division value | 1GU |
Measurement mode | Simple mode and statistical mode |
Measurement accuracy | Meet the requirement of JJG 696-2015 gloss meter |
Measurement time | Less than 1s |
| Data storage | 5000 lines |
| Volume | 165*51*77mm(length*width*height) |
| Weight | About 400g |
| Language | Simplifed Chinese, English |
Battery power | 3000mAh lithium battery |
Battery life | 100,000 times when fully charged |
| Interface | Type-C |
Screen size | 2.4 inches(resolution 320*240) |
Computer software | Support |
Working temperature | 0-40°C |
| Humidity | Less than 85%, no condensation |
| Accessories | 5V/2A charging head, data cable, manual, USB flash drive (host computer software),calibration standard plate, third-party verification certificate |

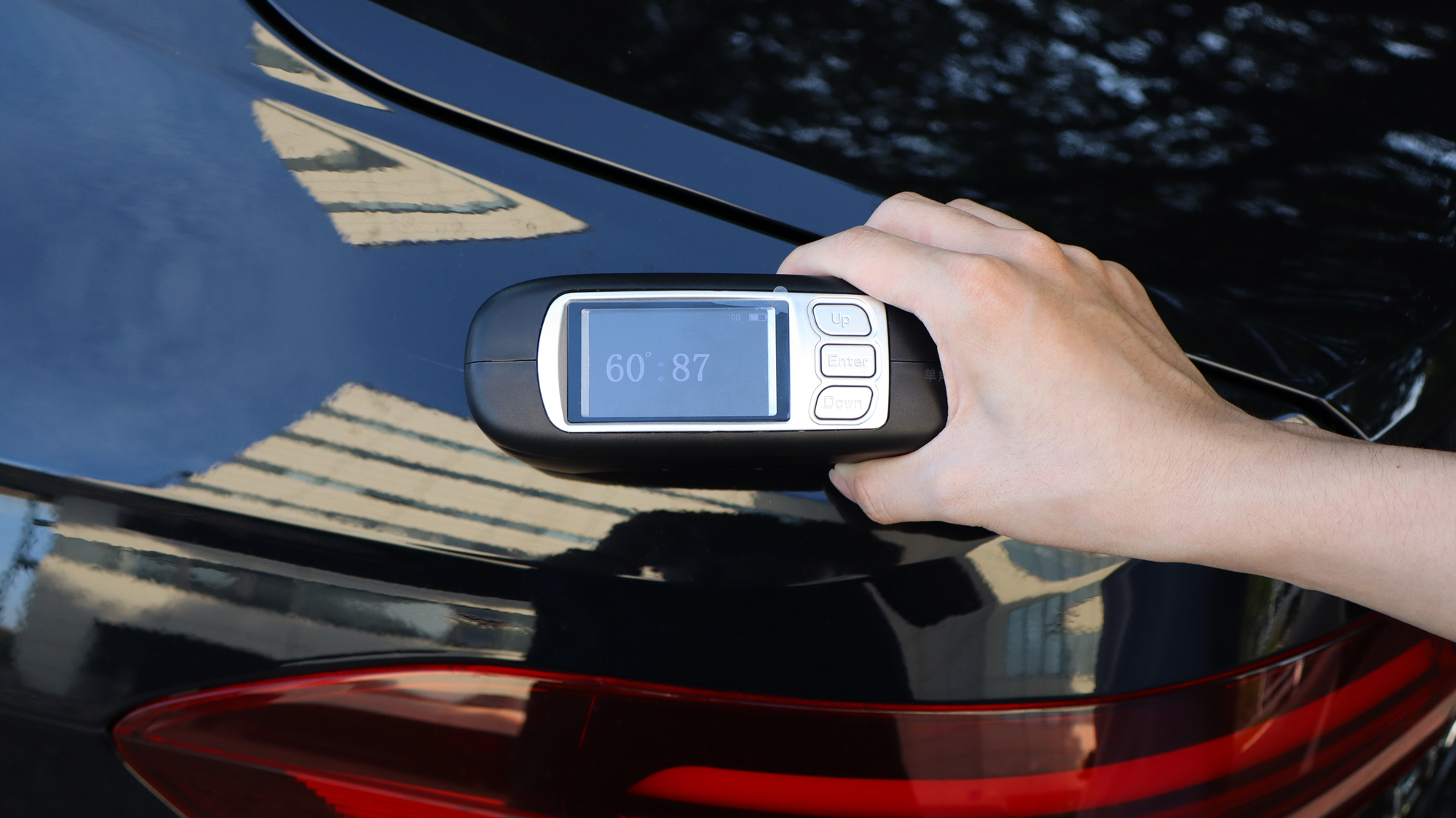

| Application | Paints and inks, coatings, electroplating, plastic electronics, hardware and other fields |
