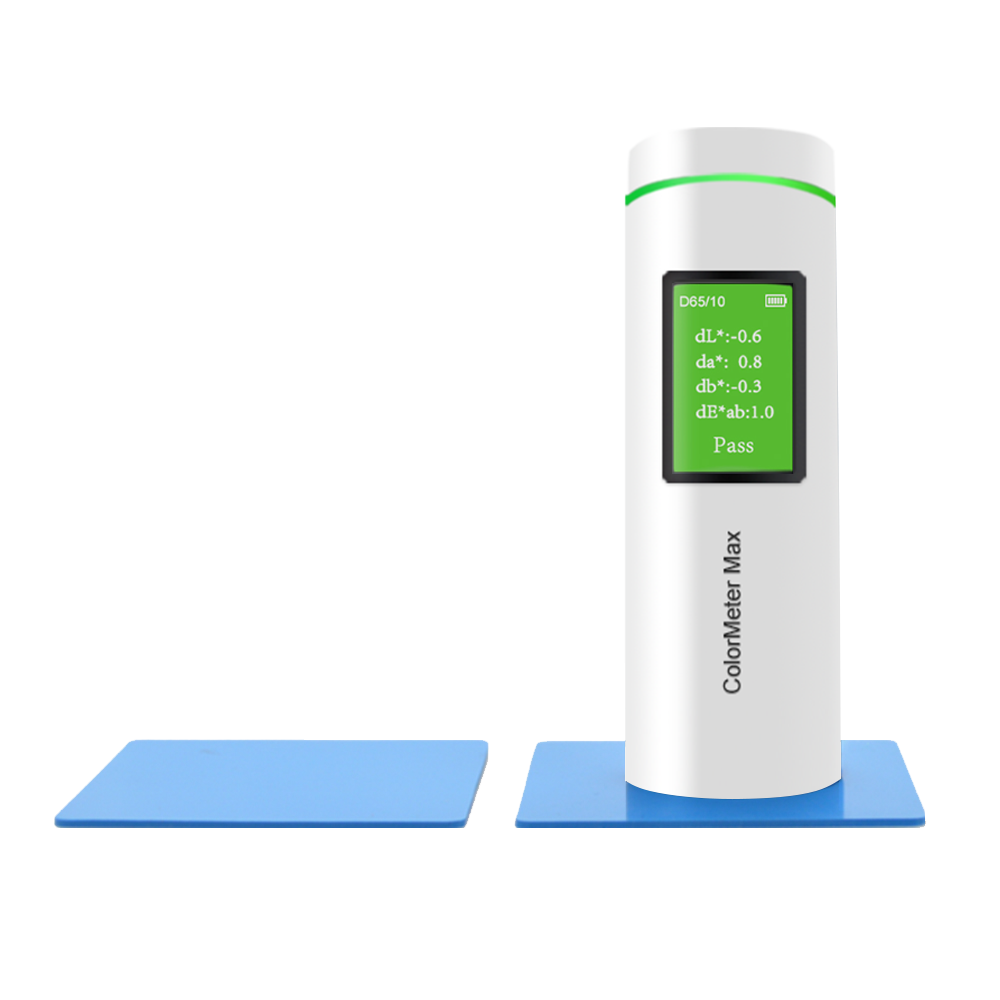

ColorMeter MAX

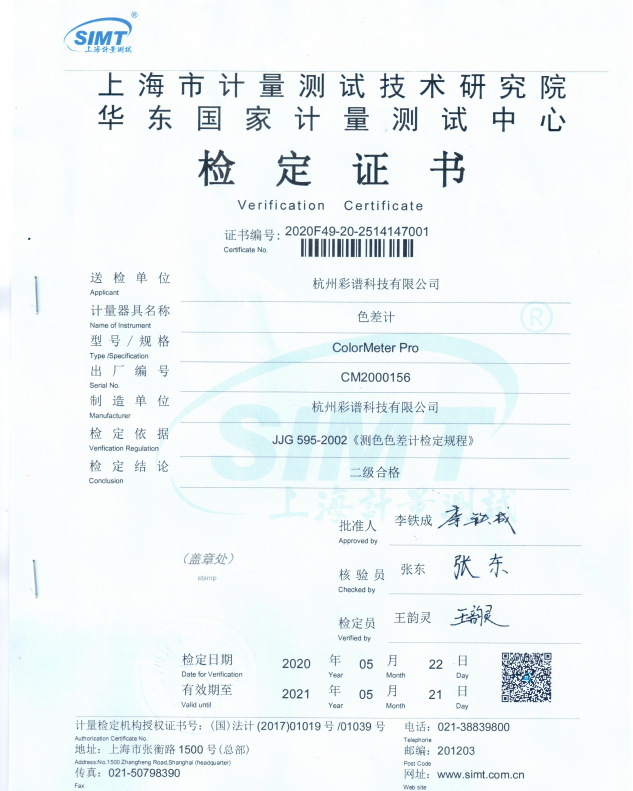

ColorMeter MAX is an enhanced version of the ColorMeter series. It is a powerful color measuring tool. Excellent performance configuration makes color measurement more accurate. The instrument can be wirelessly connected with Android or IOS devices, which greatly expands its application. It will take you into a new world of color management, which can replace the color card of printing, coating, textile, etc., realize the function of color test and find similar color; the instrument can pass the national metrology (Level II), and repeatability ≤0.05, better than ColorMeter Pro.

Part 1. Instrument Function Introduction

1. Measure Color Value

Adopt international used D/8 (Diffused Illumination, 8 degree viewing) geometry and SCI mode to make measurement more accurate. Adopt spectral sensor to provide reflectance curve/data which make its performance much better than colorimeter. It can measure whiteness index, yellowness index, color strength, color fastness, opacity and other 20 kinds of parameters with 26 kinds of illuminants.“Pass” or “Fail” judgment can be directly seen from instrument screen.It can pass the national metrology (Level II), repeatability ≤0.05, test accuracy 0.01 for accurate reading.

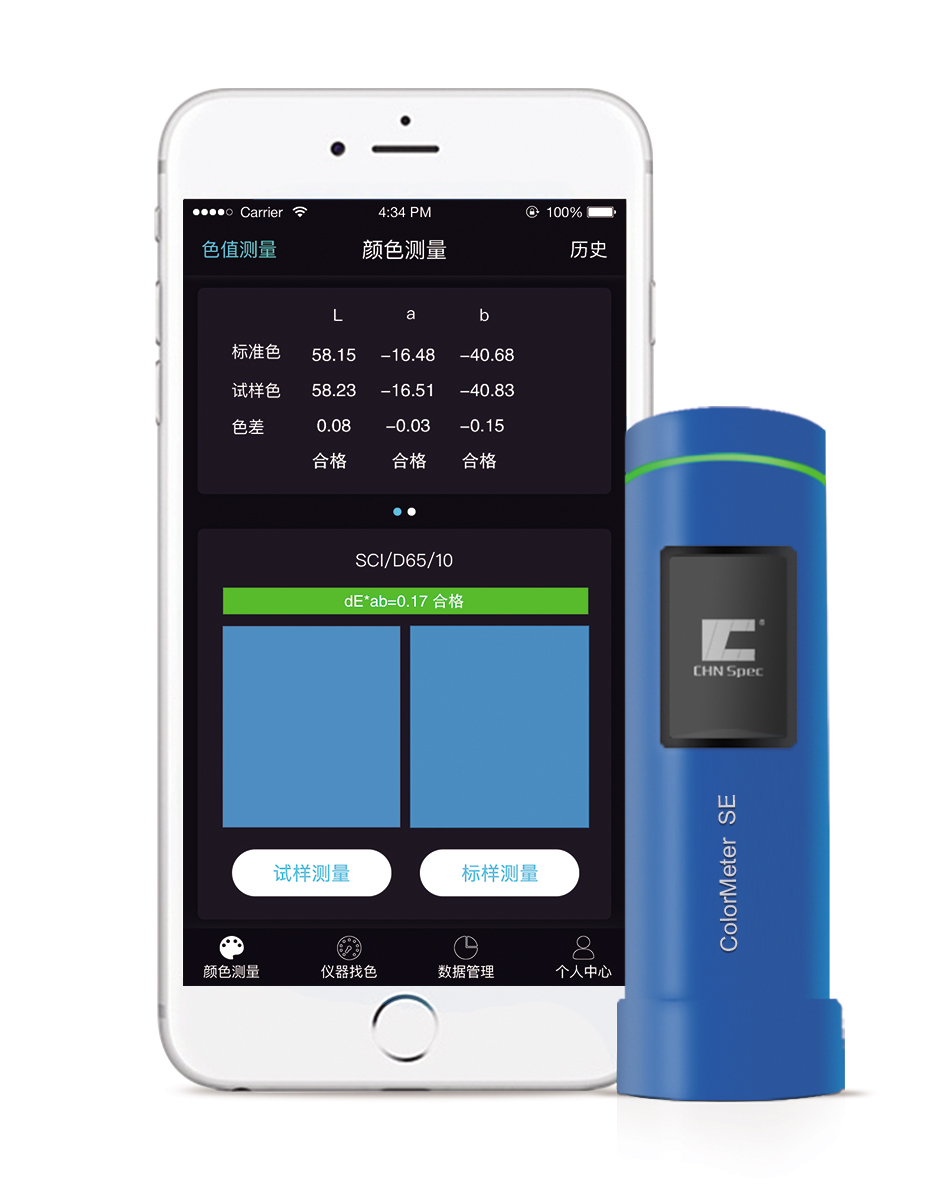

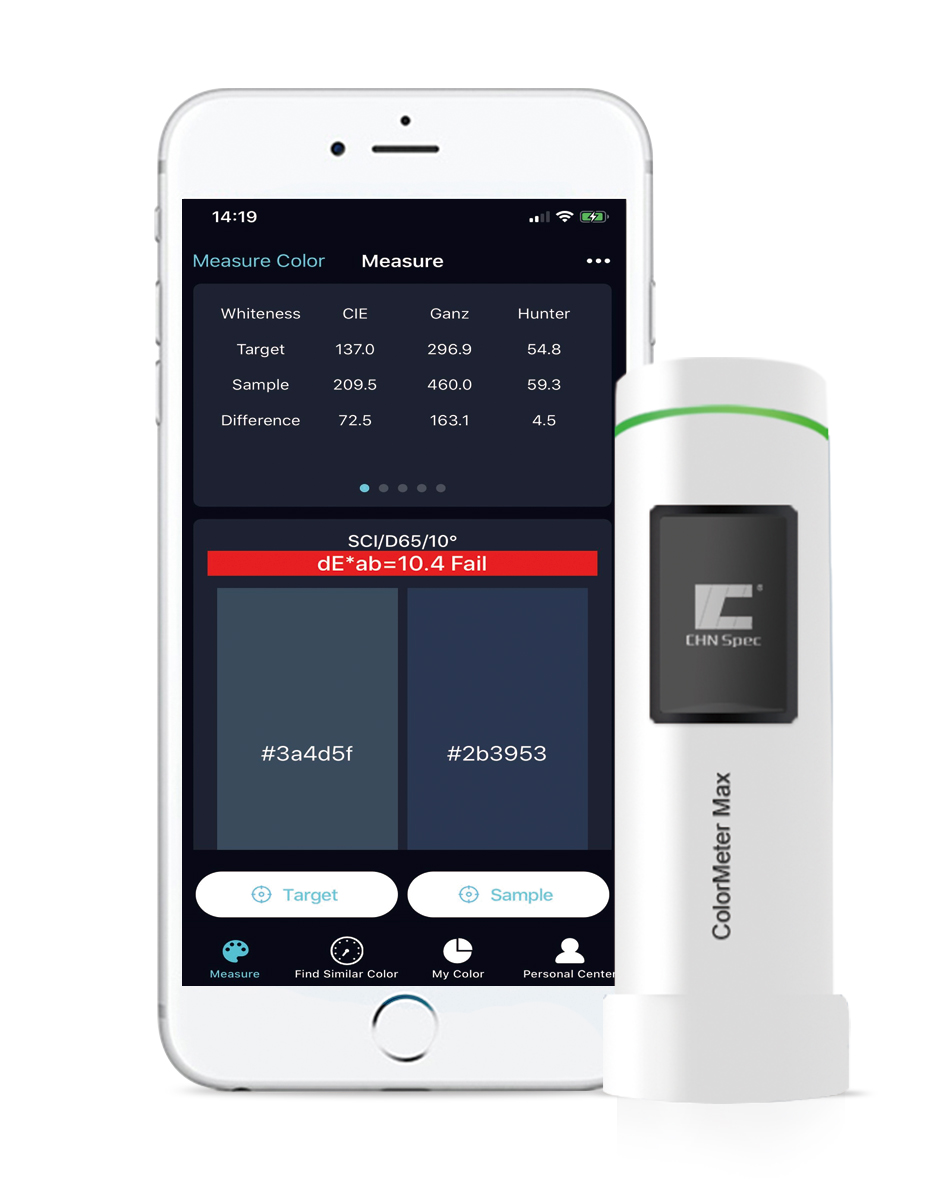

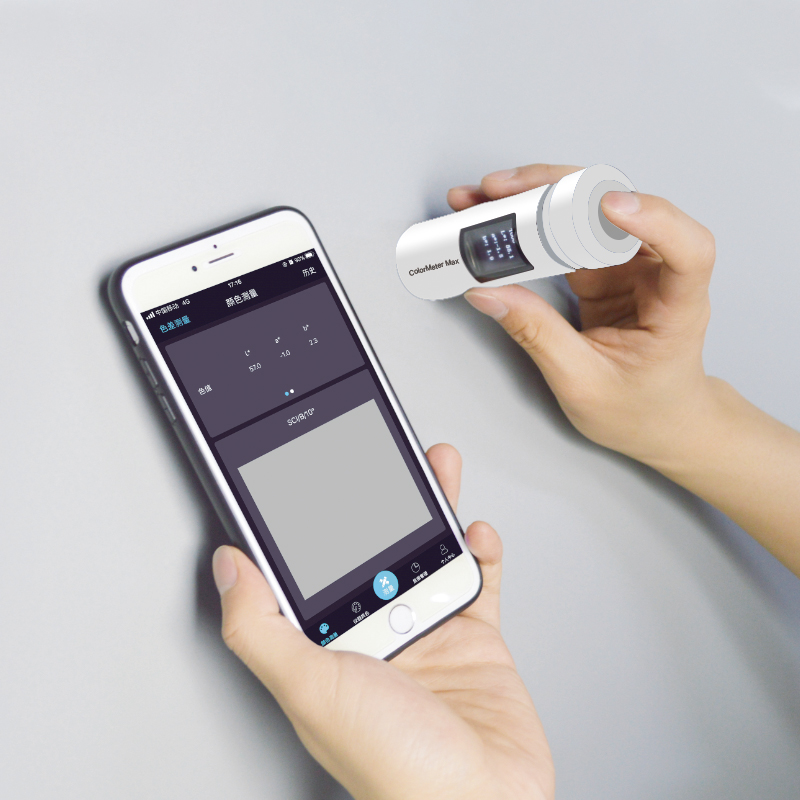

2. Portable and Massive Color Card DatabaseIt supports connecting with mobile phone APP to create database to upload the color shades from printing, paint, textile color cards No need to carry big and heavy color card, we can find color card database from Colormeter Max APP and find the closed/similar color easier and faster.

3. Artificial Intelligence for Accurately Measure Color

• AI-based color search engine for accurately measure color;

• Color can be collected anywhere and anytime.

4. Innovation Design for Auto Black and White Calibration

• Auto instrument calibration for easier and correct color test

• APP will remind for calibration if instrument works for long time

• From APP we can do manual calibration and set calibration interval

• Only 1s to see the test result which greatly improves working efficiency

5. Single Instrument for Test and Save Test Value

• 1.14 inches IPS display screen to show color information.

• Data can be saved on instrument and instrument data can be synced into APP.

•


6. Cloud database, more convenient to view and upload

Official color card databases are available;Personal users can update color information to cloud and share between different instruments which make color management much easier.Enterprise users can create and manage their own color card library and formula information in the cloud and share the information to their customers and suppliers through the unique invitation code.

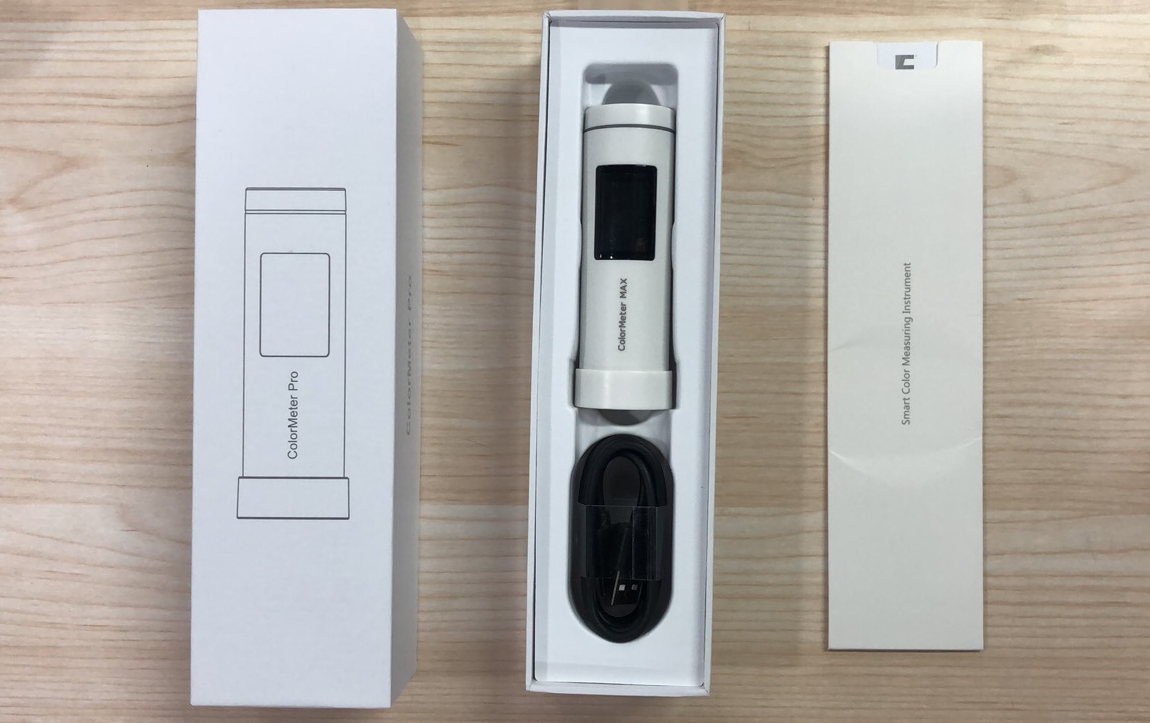

Part 2. Packing List

Part 3. Technical Data

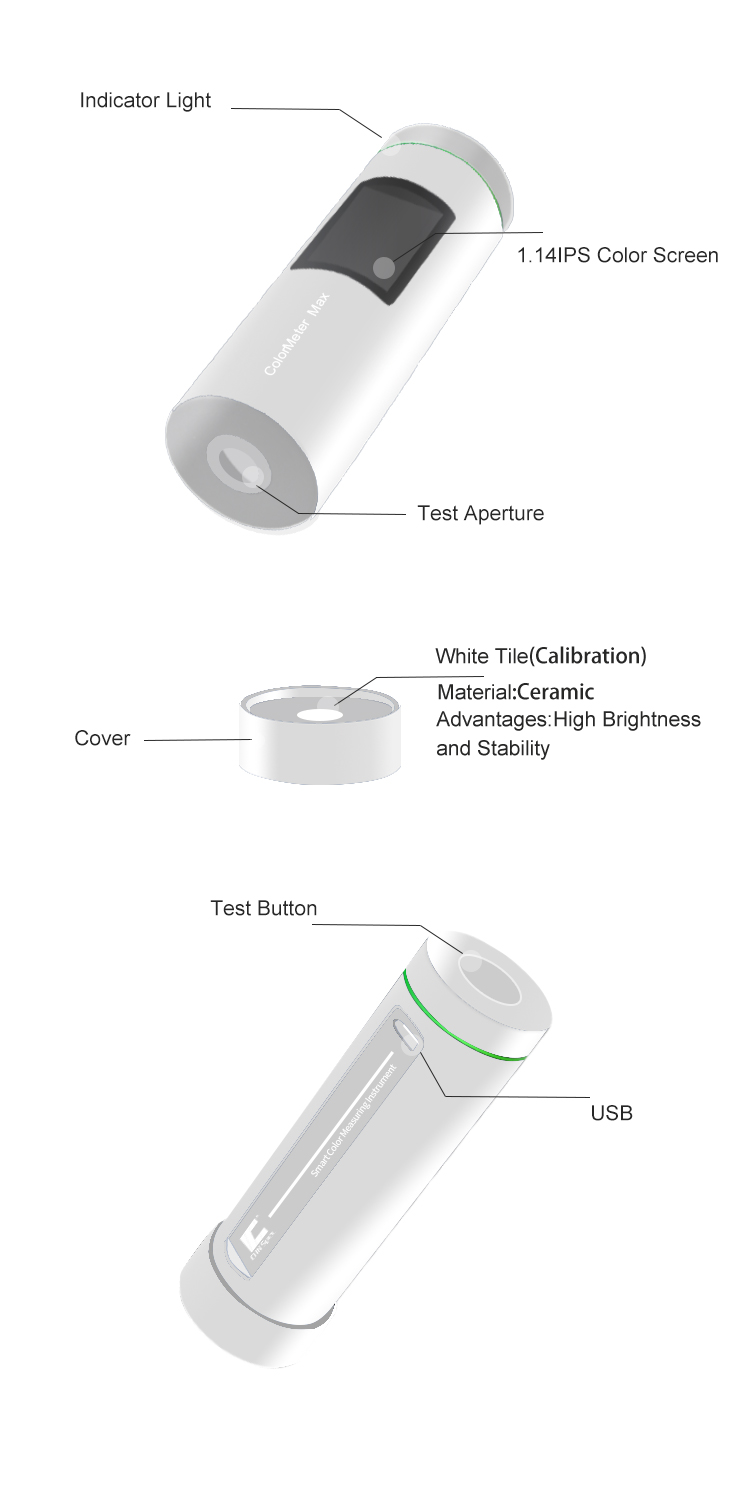

Part 4. Detail Pictures
