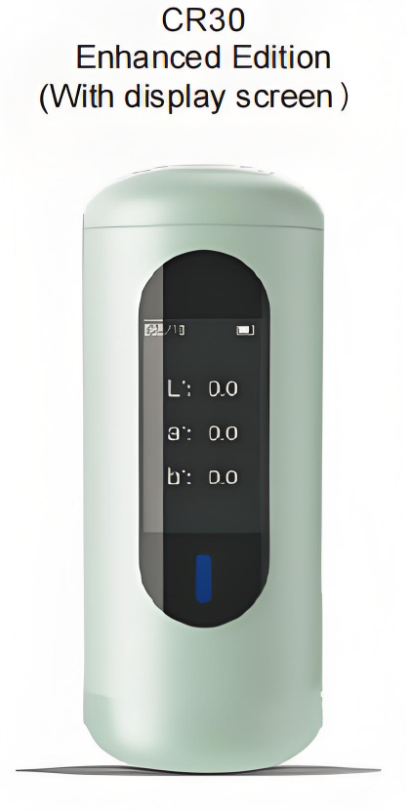

Spectral Colorimeter CR 30
CHNSpec CR30 Spectrophotometer features an advanced optical platform and AI algorithms, offering triple apertures (Φ10mm/Φ6mm/Φ4mm) and automatic UV adjustment with 0.08dE ultra-high accuracy. Designed for automotive, metallic coatings, and premium plastics, it includes temperature adaptation and cloud data management for stringent color quality control and digitalized workflows.
DetailSupports
Spectral Colorimeter CR series
Adopt 45°/0 geometry that is more in line with the color evaluationby the human eye
Magnetic calibration box
Lipstick-size, more convenient to carry
Can be used standalone or connect to App
Automatic calibration, one-key measurement, get results in 1s
Software supported: Android, iOS, Windows QC software
| Model | CR30 |
| Geometry | 45/0 |
| Measureindex | RGB,Hex,Lab,LCh,HSB,LRV,Spectral reflectance,HunterLab,CIE-Luv,XYZ,Yxy,Color Difference (ΔE*ab,ΔE*cmc,ΔE*94,ΔE*00),Whiteness(ASTM E313-00,ASTM E313-73,CIE,ISO2470/R457,AATCC,Hunter,Taube Berger Stensby),Yellowness(ASTM D1925,ASTM E313-00,ASTM E313-73),Blackness（My,dM）,Staining Fastness,Color Fastness,Tint(ASTM E313-00),Color Density CMYK(A,T,E,M),Metamerism IndexMilm,Munsell,Opacity,Color Strength |
| Light Source | LED (Full Wavelength Balanced LED Light Source) |
| Measure Aperture | 4mm |
| Wavelength Interval | 10nm |
| Wavelength Range | 400nm-700nm |
| Repeatability | ΔE*00≤0.05 |
| Inter-instrument agreemen | ΔE*00＜0.4 |
| Measurement Accuracy | 0.01 |
| Interface | 1.0s |
| Illuminants | USB，Bluetooth |
| Observer | 2°，10° |
| Display Screen | IPS Full Color Screen（135*240,1.14inch） |
| Battery | Rechargeable,10,000 continuous tests |
| Language | Chinese ,English |
| Calibration | Automatic Calibration |
| Software supported | Andriod,IOS,Windows |
| Weight | About 75g |
| Size | Diameter：33mm，Height：84mm |
| Storage | APP mass storage |
