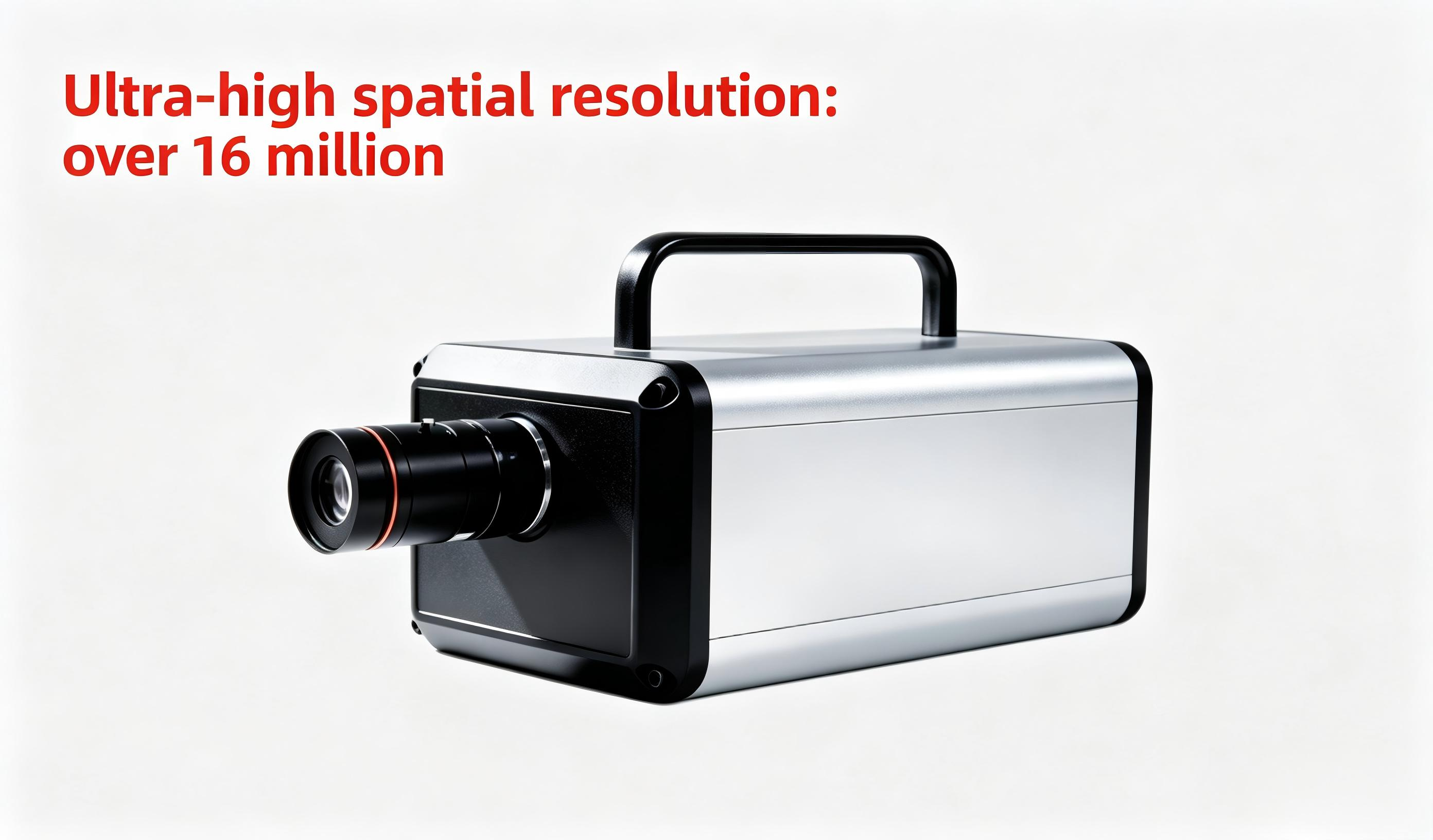

FS‑23‑H Imaging Hyperspectral Camera | High‑Resolution Area‑Array VNIR Imager for Spectral Inspection
FS‑23‑H Imaging Hyperspectral Camera | High‑Resolution Area‑Array VNIR Imager for Spectral Inspection
CHNSpec FS‑23‑H imaging hyperspectral camera adopts high‑diffraction‑efficiency transmissive grating and high‑resolution CMOS area‑array sensor. It offers 400‑1000nm spectral range and 2.5nm spectral resolution. Equipped with built‑in scanning mechanism and auxiliary viewfinder camera, it eliminates the need for external push‑scan devices. Ideal for screen inspection, fruit‑vegetable sorting and plant pest‑disease detection, it supports USB3.0 data transmission and C‑Mount lens mounting with built‑in battery power supply.
$0.00
DetailSupports
The FigSpec® series imaging hyperspectral cameras use a high-diffraction- efficiency transmissive grating module along with a high-sensitivity area array camera. Combined with built-in scanning imaging and auxiliary camera technology, they solvethe common problems of traditional hyperspectral cameras that require external push-scan mechanisms and complex focusing, making them easier to use. They can bedirectly integrated with standard C-mount imaging lenses for fast spectral imageacquisition.
Spectral range: 400-1000nm
The spectral channels can reach up to 1984
Spectral resolution better than 2.5nm
The image resolution can reach 4096*4096
Typical applications
Technical Specs
| Model | FS-23-H |
| Spectroscopy Method | Grating |
| Image Resolution | 4096*4096 |
| Dynamic Range | 12 bits |
| Imaging Speed | ≤35 s |
| Number of Spectral Channels | 1984 |
| Spectral Range | 400-1000nm |
| Spectral Resolution (FWHM) | 2.5nm |
| Slit Width | 25um |
| Transmission Efficiency | 60% |
| Stray Light | 0.5% |
| Pixel Size | 3.45 um * 3.45 um |
| Detector | CMOS |
| Sensor Imaging Area | 14.1 mm × 10.3 mm |
| Standard Lens Focal Length | 25 mm |
| Working Distance | 100 mm~∞ |
| Field of View | 31° |
| Minimum Exposure Time | 20 us |
| Maximum Exposure Time | 10 s |
| Signal-to-Noise Ratio | 600/1 |
| Camera Output | USB3.0 |
| Camera Interface | C-Mount |
| Accessories | USB3.0 Transmission Cable |
| Imaging Function | ROI function available for single region ROI |
| Auxiliary Imaging Function | Auxiliary viewfinder camera for monitoring the shooting area |
| Power Supply | Built-in battery power supply |
