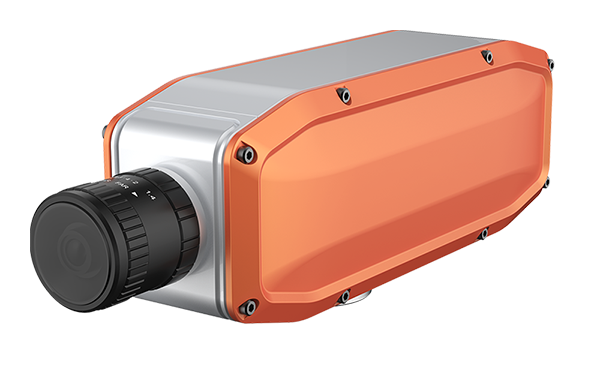

FS1X Series Hyperspectral camera (line scanning)

WeChat
copy Link
Facebook
X
LinkedIn
Pinterest
FigSpec®FS1X series hyperspectral camera contains 4 spectral regions: visible (400-700nm), visible near infrared (400-1000nm), short-wave near infrared (900-1700nm), short-wave near infrared (1400-2500nm), which are widely used in the printing, textile, and other industrial products, surface color texture detection (color measurement). Single pixel repeatability up to dE*ab<0.1), component identification, material identification, machine vision, agricultural quality and other fields.
DetailSupports
ModelFS-10FS-12FS-13FS-14FS-15FS-17FS-18FS-1A

Spectroscopic   mode

Transmission grating

Transmission grating

Transmission grating

Transmission grating

Transmission grating

Transmission grating

Transmission grating

Transmission grating

Spectral range

400-700nm400-1000nm400-1000nm400-1700nm900-1700nm900-1700nm900-1700nm1400-2500nm

Spectral   band

600120012006802541024512210

Spectral   FWHM

2.5nm2.5nm2.5nm13nm8nm6nm6nm12nm
Slit width25um25um25um25um25um25um25um25um

Transmission
efficiency

＞50%＞60%＞60%＞60%＞60%＞60%＞60%＞60%
Stray light＜0.5%＜0.5%＜0.5%＜1%＜0.5%＜0.5%＜0.5%＜0.5%

Number of
spatial pixels

19201920192012803201280640320
Pixel size5.86um5.86um5.86um5um*5um30um5um15um20*20um

Imaging speed

Full band

41Hz,

390Hz after

ROI

Full band

41Hz,

390Hz after

ROI

Full band

128Hz,

3300Hz after

ROI

100fps200Hz

8bit/1024 bands 132fps,
12bit/1024 bands70fps,
8bit/512 bands 253fps,
up to 1800fps after ROI

724fps509fps
DetectorCMOSCMOSCMOSInGaAsInGaAsInGaAsInGaAsInGaAs
SNR(Peak)500/1600/1600/1600/1600/1600/1600/1300/1

Camera output

USB3.0USB3.0USB3.0USB3.0Gigabit EthernetUSB3.0CameralinkUSB3.1

Camera   interface

C-MountC-MountC-MountC-MountC-MountC-MountC-MountC-Mount
Parts

USB3.0 transmission
cable

USB3.0 transmission
cable

USB3.0 transmission
cable

Lens, USB cable,
power supply

Gigabit Ethernet
   transmission line

Lens, USB cable,
power supply

Lens, data cable
, power supply ,
data acquisition card

Lens, USB cable, power
supply

ROISingle areaSingle areaMultiple regionsMultiple regionsSingle areaMultiple regionsSingle area/
