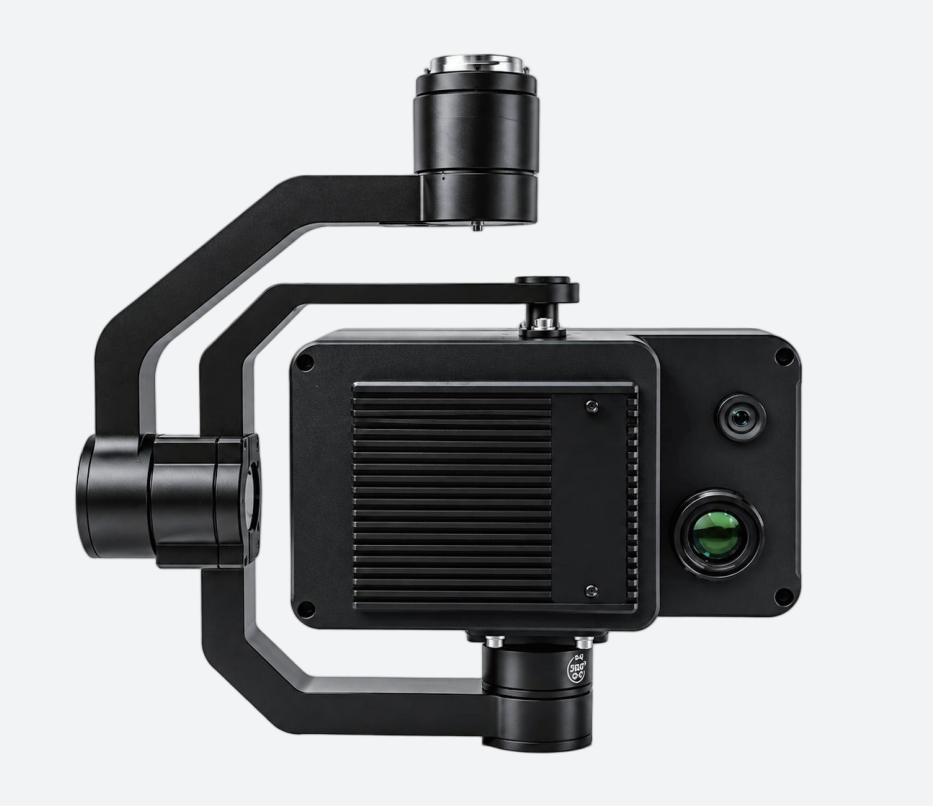

FS60‑CX Hover‑Built‑In Push‑Broom UAV Hyperspectral Camera 400‑1000nm Remote‑Sensing

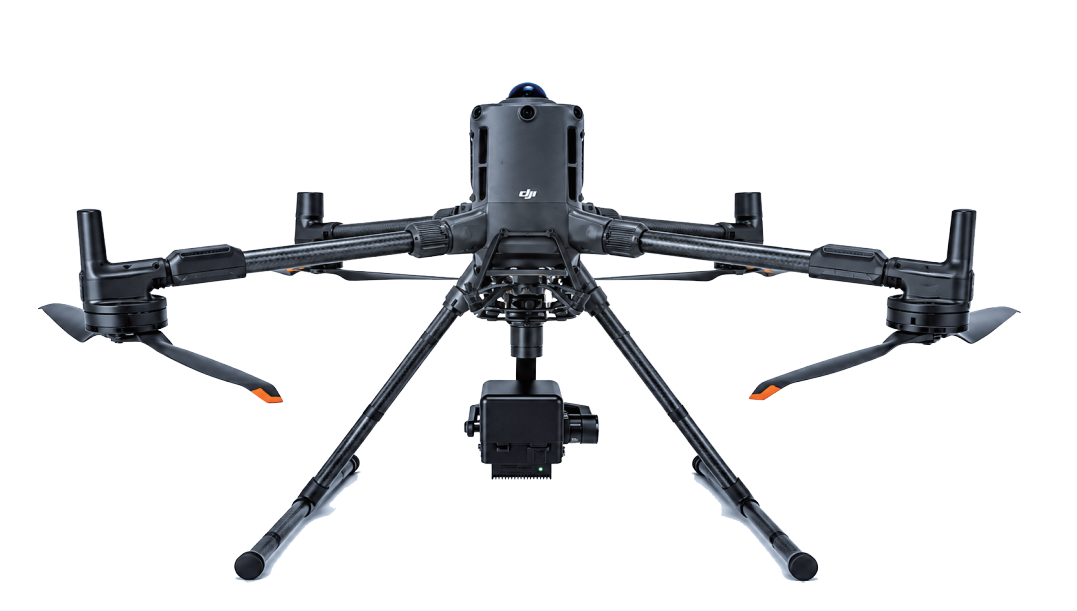

The FS60-CX drone's hovering built-in pushbroom hyperspectral camera uses transmissive grating spectral technology, supporting both area scan and line scan modes. Its spectral range covers 400–1000nm, with a spectral resolution better than 2.5nm, featuring 1200 spectral channels and 1920 spatial channels. The system is mounted on the DJI M400 flight platform, allowing real-time observation of sampling locations and hyperspectral images through the ground station. It also comes with waypoint planning, image stitching, and hyperspectral analysis software, enabling integrated operations from flight collection and data calibration to image analysis.
Spectral range: 400–1000nm
Spectral resolution: better than 2.5nm
Spectral channels: 1200
Spatial channels: 1920
Technical Specifications
Model | FS60-CX |
Scanning Mode | Area scanning / Line scanning |
Spectroscopic Method | Transmission grating spectroscopy |
Spectral Range | 400-1000nm |
Number of Spectral Channels | 1200 |
Spectral Resolution | 2.5nm |
Slit Width | 25μm |
Transmission Efficiency | 60% |
Stray Light | 0.50% |
Number of Spatial Channels | 1920 |
Pixel Size | 5.86μm*5.86μm |
Imaging Speed | 128 fps for full spectrum |
Detector | CMOS |
SNR (Peak) | 600:1 |
Camera Output Interface | USB3.0 |
Camera Lens Mount | C-Mount |
Heat Dissipation | Internal air cooling |
Camera Dimensions | 172mm*100mm*120mm |
Camera Weight | 1964.4g |
Accessories | USB flash drive, miniature cross reticle, M3 hex key, small optical cleaning cloth, warranty card, certificate of conformity, packing list, self-sealing bag, small cross screwdriver |
Optional Accessories | Reflectance calibration plate, diffuse reflection cloth, leveling plate, extended tripod, circular plate |
Lens Focal Length | 25mm |
Field of View | >25° |
Flight Platform | DJI M400/M350 |
Operation | Easy operation, no professional UAV pilot required, single-person operable |
Observation Method | Real-time monitoring of sampling points, hyperspectral images and spectral data via ground station |
Calibration Method | Reflectance calibration, regional calibration with batch processing support |
Data Format | Compatible with spe format, hdr format |
Application Software | FIGSPEC Merge stitching software, FIGSPEC Studio image analysis software, waypoint planning software |
