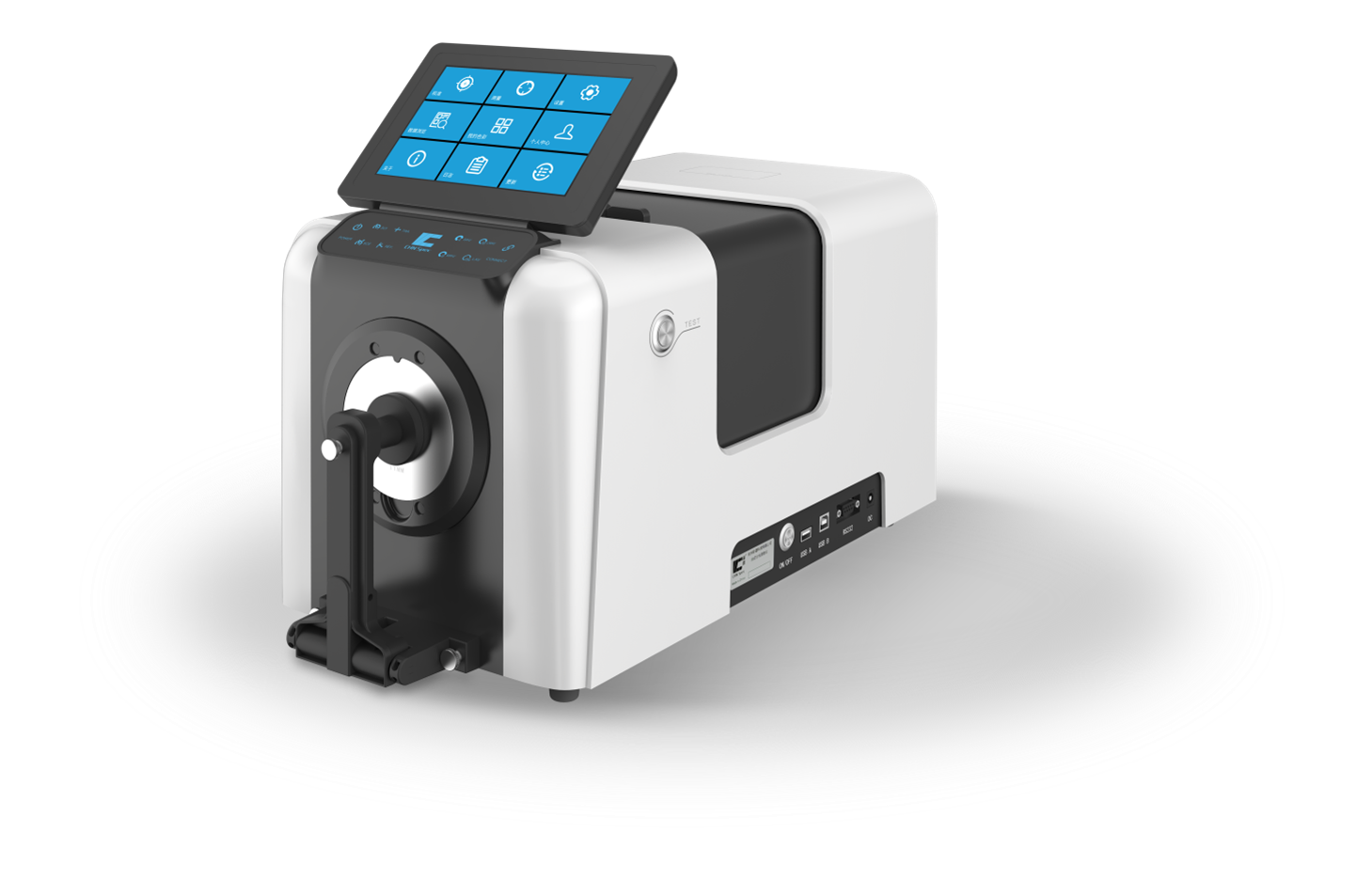

Benchtop spectrophotometer DS-37D
DS-37D：Repeatability 0.005，Inter-InstrumentAgreement 0.12
Equippedwith two types of lighting sources: pulse xenon lamp and LED
37standard light sources, 40+measurement indicators
Automaticrecognition of four apertures switching
Temperatureand humidity calculation compensation function
7-inchtouch screen, Android operating system
Provide powerful ColorExpert computer data management software
Can save data to the cloud and follow the account to prevent loss
Support PC end export or printing of data test reports
Support color matching software to provide more formula inspiration and improve color matching efficienc
Differential spectrum engine improves overall measurement performance
The light input of the sensor is increased by 50%, thespectral resolution is increased by 30%, the signal-to-noise ratio is higher,the repeatability, the difference between the instrument, and the data ishighly consistent with the data of the standard instrument, theinter-instrument agreement can reach to 0.12, and the repeatability can reachto 0.005. The relevant technologies are protected by Chinese invention patents.
Doubleoptical path design improves repeatability accuracy
repeatability accuracy dE*ab≤0.005
The dual optical path design monitors the energyfluctuation of the light source while measuring the sample signal, reducesinterference during measurement, obtains higher measurement stability, andimproves the measurement repeatability index of the instrument to dE*ab≤0.005. The high standard of measurement speed, accuracy, stabilityand inter-station difference is guaranteed. The relevant technologies areprotected by Chinese invention patents and American invention patents.
Innovative 1nm resolution grating spectroscopy technology
Innovation is the soul of CHNSpec. After nearly 10 years of dedicated research, the grating combined array sensor made by the innovative MEMS process makes the color measurement more accurate on the basis of 1nm spectral resolution, once again leading the industry innovation direction and greatly improving the technical performance of the product. The relevant technologies are protected by Chinese invention patents.
Excellentinter-instrument agreement：dE*ab≤0.12，
Highrepeatability accuracy：dE*ab≤0.005，ensure accurate data transfer between factories
Self-developedfluorescence calibration technique
Automatically adjust the UV intensity, and ensure that the instrumentvalue is highly consistent with the reference value when measuring thefluorescent material.
High precision automatic calibration
Advanced automatic calibration technology greatly improves long-termrepeatability of instruments. Under constant temperature, the dE*ab of day 1and day 30 can still reach 0.01. At any temperature change from 0℃ to 40℃, dE*ab can reach lessthan 0.1.
Long-termrepeatability curve at constant temperature
Repeatability curve of temperaturechange from 0 ℃ to 40 ℃
Easily measure samples of many shapes with a variety of measuring apertures
Four test calibers, free to switch
Support measurement in reflection mode: solid, powder, non-transparent liquid
Support measurement in transmission mode: glass, film, transparent liquid
Configure high-definitionpreview camera
The clarity of the camera has been significantly upgraded, from the original 400dpi to 1400dpi. When observing the sample, the clarity has been improved by 350% and brightness calibration algorithm has been used to truly restore the color of the ultra dark sample.
Previous generation clarity（The color is slightly dark and blurry）
DS-36D clarity（Bright and high-definition color）
Support for simultaneously saving sample data and imagesRecording image information while measuring dataObtain more sample related information
Technical Parameter
| Benchtopspectrophotometer | |
| Model | DS-37D |
| Lighting/measuring conditions | Reflection: d/8 (diffuse illumination, 8° direction reception) |
| SCI（Contains specular reflected light）/ SCE（not contain specular reflected light）measure at same time. Compliance standards: CIE No.15, GB/T 3978, GB 2893, GB/T 18833, ISO7724/1, DIN5033 Teil7, JIS Z8722 Condition C, ASTM E1164, ASTM-D1003-07 | |
| Transmission: d/0 (diffuseillumination, vertical reception) | |
| Sensor | Differential spectrum engine |
| Spectroscopic method | Concave grating |
| Integrating sphere diameter | 152mm |
| Wavelength range | 360nm-780nm |
| Wavelength interval | 10nm |
| Half-wave width | 1.6nm |
| Reflectance measurement range | 0-200%，resolution0.01% |
| Lighting source | Pulsed xenon lamps and LED |
| Ultraviolet measurement | Includes UV, 400nm cutoff,420nm cutoff, 460nm cutoff |
| Measuring time | Singlemode <2s |
| Lighting/measuring calibers | Reflection: XLAV Φ25.4mm/Φ30mm；LAVΦ15mm/Φ18mm；MAVΦ8mm/Φ11mm；SAVΦ3mm/Φ6mm Users can customize the calibre, and the calibre switch is automatically recognized Transmission：Φ17mm/Φ25mm |
| Transmission measurementspecification | Sample height and thickness: height is not limited, thickness ≤50mm |
| Long-term repeatability | XLAV chroma value: standard deviation ΔE*ab within 0.1 (0℃-40℃ arbitrary temperature change) XLAV chroma value:standard deviation ΔE*ab0.01 or less (under constant temperature conditions, the white correction plateis measured every hour within 24 hours) |
| Repeatability | ΔE*ab≤0.005， Spectralreflection/transmittance ≤0.1% |
| Inter-Instrument Agreement** | XLAVΔE*ab 0.12 |
| Standard observer | 2° and 10° |
| Viewing light source | A,B,C,D50,D55,D65,D75,F1,F2,F3,F4,F5,F6,F7,F8,F9,F10,F11,F12,CWF,U30,U35,DLF,NBF,TL83,TL84,ID50,ID65,LED-B1,LED-B2,LED-B3,LED-B4,LED-B5,LED-BH1,LED-RGB1,LED-V1,LED-V2 |
| Language | Simplified Chinese, English, Traditional Chinese, Russian, Spanish, Portuguese, Japanese, Thai, Korean, German, French, Polish |
| Display content | Spectraldata, Spectrogram, chromaticity data, chromaticity Data, chromaticity map,Pass/Fail judgment, Simulation color, Color evaluation, fog, liquidchromaticity, Color bias |
| Color space | CIE LAB,CIE LUV,LCh,Hunter Lab,Yxy,XYZ,Musell,s-RGB,βxy |
| Chroma index | WI(ASTM E313-20,ASTM E313-73,CIE,ISO2470/R457,AATCC,Hunter,Taube,Berger Stensby),YI(ASTM D1925,ASTM E313-20,ASTM E313-73),Tint(ASTM E313-20),Isochromatic index Milm, color fastness, color changing fastness,ISO brightness,R457,A density,T density,E density,M density,APHA/Hazen/Pt-Co(platinum-cobalt index),Gardner(Gardner Index),Saybolt(Seibert Index),Astm color, fog, total transmittance, covering power, force, intensity |
| Color difference formula | ΔE*ab,ΔE*CH,ΔE*uv,ΔE*cmc,ΔE*94,ΔE*00,ΔEab(Hunter),555color tone classification |
| Storage | 8GB |
| Screen size | 7-inch capacitive touch screen |
| Audit Trail | Yes (according to FDA and CFDArequirements) |
| Operating system | Android |
| Power source | Dcregulated power supply |
| Operating temperature andhumidity | 5 ~ 40°C, relative humidity 80%(35°C)below no condensation |
| Storage temperature andhumidity | -20 ~ 45°C, relative humidity 80%(35°C)below no condensation |
| Accessories | Poweradapter, USB cable, transmission fixture, software U disk, black cavity, whiteboard, green board,30mm aperture, 18mm aperture ,11mm aperture, 6mm aperture,support table,cuvette, |
| Optional accessories | Heatingtransmission jig (including control circuit), vertical bracket, pneumaticjacking rod (including control circuit), small sample holding accessories,reflection cupping plate (non-removable), fiber test box, film jig, microtransmission jig, rod box, European standard plug, American standard plug |
| Port | RS-232、USB、USB-B、Bluetooth |
| Camera positioning | Ultra HD camera（1400dpi） |
| Automatic calibration | √（Can greatly improve the long-term repeatability of theinstrument） |
| Fluorescence calibration | √（Can automatically adjust the UV intensity, and ensure that the value of the instrument is highly consistent with that of other imported instruments when measuring materials containing fluorescence） |
| Brightness calibration | √（Through the brightness calibration algorithm, the real color of ultra-dark samples is restored） |

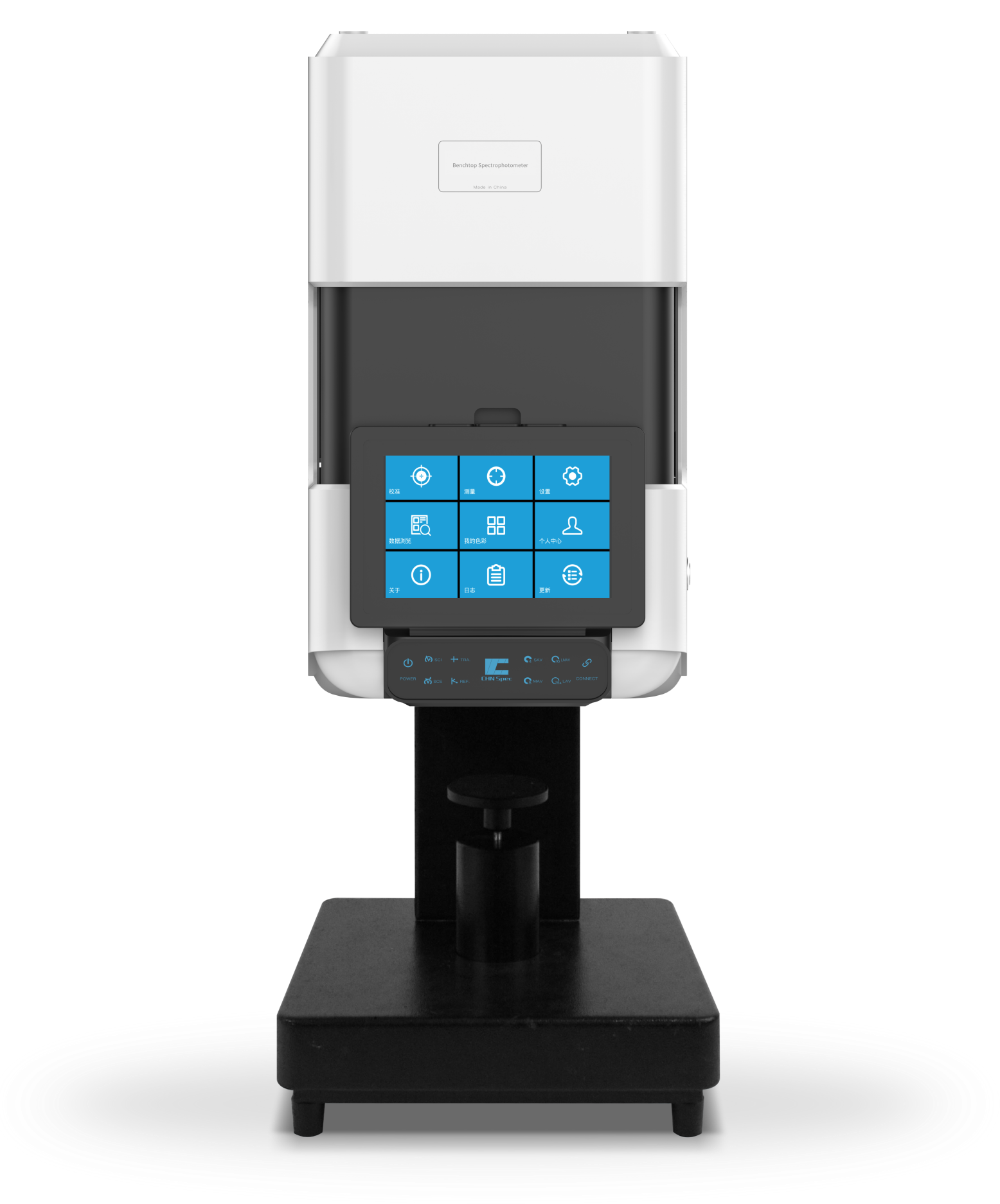

| Others | The instrument can be measuredsideways, up and down (using accessories); Automatic temperature and humiditycompensation function; PC side software save sample image function |
After instrument calibration, the white correction plate was measured 30 times at5-second intervals to measure the standard deviation of the result in XLAVcaliber Based on 23°C, the average value of XLAV aperture measurement of 12 swatches ofBCRA Series is measured
