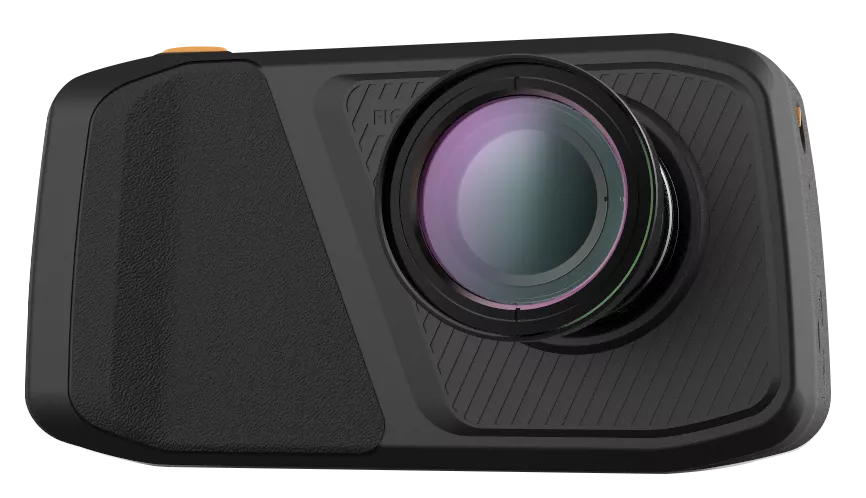

FS-IQ-VIS Portable hyperspectral camera
Main function
Working mode High precision imaging measurement mode
PC control mode
Line scan mode
User adjustment Users can flexibly set and adjust the exposure time, merge method, ROI area
Data format Data format compatible with multiple formats (including envi)
Data export USB Type-C is available
Working hours 100 measurements can be made on a single charge
Parameters
| Model Number | FS-IQ-VIS |
Spectroscopic method | Transmission grating spectroscopy |
Image resolution | 1920*1920 |
Dynamic range | 12 bits |
Imaging speed | 5s |
Spectral channel number | 500 |
Spectral range | 400-700nm |
Optical harmonic resolution | 2.5nm |
Slit width | 25um |
Transmission efficiency | ≥60% |
Stray light level | ≤0.5% |
Pixel size | 5.86um*5.86um |
Detector type | CMOS |
Standard lens focal length | 25mm |
Minimum working distance | 100mm |
Field Angle | 25° |
Minimum exposure time | 21us |
Maximum exposure time | 10s |
Signal-to-noise ratio | 600/1 |
Data interface | USB3.0 |
Camera lens interface | C |
attachment | USB3.0 transmission line |
| Auxiliary imaging function | The auxiliary view cameramonitors the shooting area |
