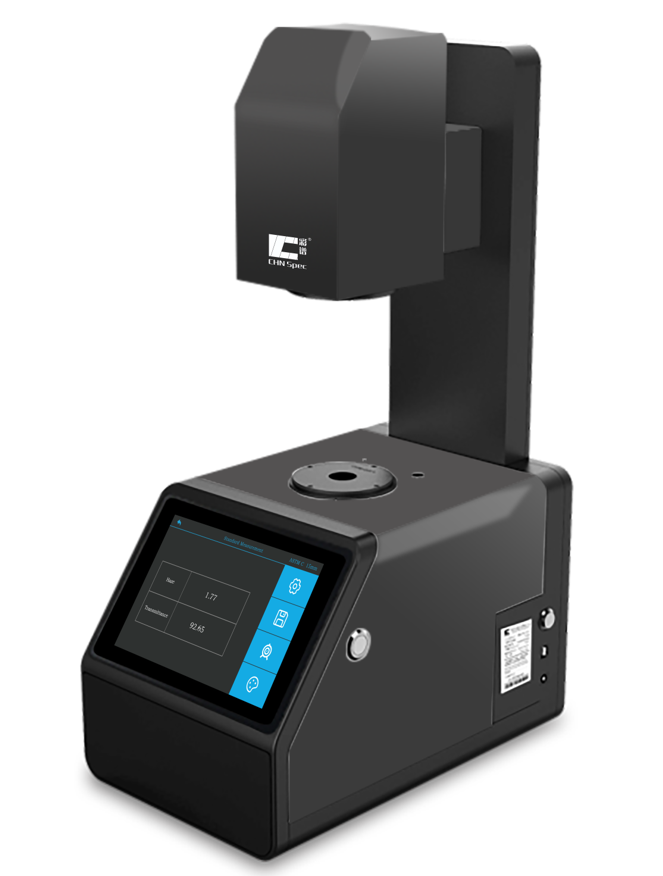

TH-05 Haze Meter

WeChat

copy Link

Facebook

CHNSpec TH-05 Haze Meter features a high-precision optical system designed for measuring haze, transmittance, and clarity of transparent/translucent materials. Compliant with ASTM/ISO standards, it comes with a 5.7-inch touchscreen and auto-calibration function. Widely used for quality control and R&D testing in plastics, glass, film, and related industries.

DetailSupports

1.Product Features

Standard 0/d Optical Structure: More accurate test data

Measurement parameters: Haze,Transmittance under ASTM standard

Long Life: Light source lasts 5 years or 5 million times

Precise Measurement: Resolution of 0.1, repeatability of 0.1

Massive Storage: Can store 10,000 data sets

Touchscreen Operation: Capacitive touchscreen for smoother operation

Clear Display: 7-inch IPS full-angle screen

Data Management: Comes with PC software that supports data export and report printing

2.Technical Parameters

Product Model	TH-05
Product Model	TH-05
Light Source	CIE-A, CIE-C
Standards Compliance	ASTM D1003/D1044, ISO13468/ISO14782, JIS K 7105, JIS K 7361, JIS K 7136, GB/T 2410-08
Measurement Parameters	Haze, Transmittance under ASTM standards
Spectral Response	CIE Spectral Function V/V(λ)
Optical Path Structure	0/d
Measurement Aperture	21mm
Measurement Range	0-100%
Resolution	0.1%
Repeatability	0.1
Sample Size	Thickness ≤ 145mm
Display	7-inch IPS full-angle LCD
Touch	Capacitive Touchscreen
Data Storage	10,000 values
Light Source Lifetime	5 years or 5 million times
Interface	USB Interface
Power Supply	DC 12V/3A
Working Temperature	5~40°C, relative humidity ≤80% (at 35°C), no condensation
Storage Temperature	-20~45°C, relative humidity ≤80% (at 35°C), no condensation
Dimensions	Length x Width x Height: 310mm x 215mm x 540mm
Weight	6kg
Standard Accessories	PC management software (HAZE QC)
Optional Accessories	Measurement fixtures, haze standard plates, custom aperture plates
