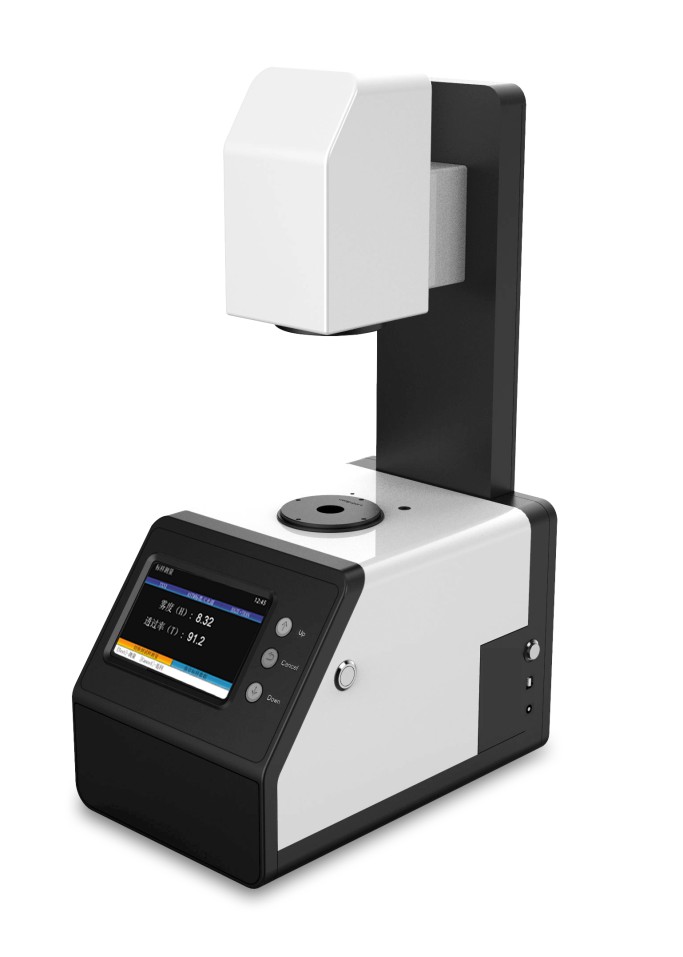

Haze Meter TH-100

WeChat

copy Link

Facebook

CHNSpec TH-100 Haze Meter features a high-performance integrated optical system that accurately measures haze, total transmittance, and scattered transmittance of transparent materials. Compliant with ASTM/ISO standards, it comes with a 7-inch HD touchscreen and user-friendly interface. Ideal for quality control and R&D in plastics, glass, film, display screen industries.

DetailSupports

Part 1. InstrumentAdvantages

1).It conforms to bothASTM and ISO internationalstandards ASTM D 1003,ISO 13468,ISO 14782, JIS K 7361 and JIS K 7136.

2). Instrumentis with a calibration certification from a third party laboratory.

3). No needto do warm-up, after instrument is calibrated, it can be used. And measurementtime is only 1.5seconds.

4). Threekinds of illuminants A,Cand D65 for haze and total transmittance measurement.

5). 21mm testaperture.

6). Openmeasurement area, no limit on sample size.

7). It canrealize both horizontal and vertical measurement to measure different kinds ofmaterials such assheets, film, liquid, etc.

8). Itadopts LED light source whose lifetime can reach 10 years.

Part2. Technical Data

Model	Professional Edition Haze Meter
Character	ASTM D1003/D1044 and ISO13468/ISO14782 standard for haze measurement and light transmittance measurement. Open measurement area and samples can be tested vertically and horizontally. Application: glass, plastic, film, display screen, packaging and other industries.
Illuminants	D65,A,C
Standards	ASTM D1003/D1044, ISO13468/ISO14782, GB/T 2410,JJF 1303-2011, CIE 15.2, GB/T 3978, ASTM E308, JIS K7105, JIS K7361, JIS K 7136
Test Parameter	ASTM and ISO (HAZE),Transmittance (T)
Test Aperture	21mm
Instrument Screen	5 inches color LCD screen
Haze Repeatability	Φ21mm aperture, Standard Deviation: within 0.08(when a haze standard with value 40 is measured 30 times at 5-second interval after calibration)
Transmittance Repeatability	≤0.1 unit
Geometry	Transmittance 0/D (0 degree illumination, diffused receiving)
Integrating Sphere Size	Φ154mm
Light Source	400~700nm full spectrum LED light source
Test Range	0-100%
Haze Resolution	0.01 unit
Transmittance Resolution	0.01 unit
Sample Size	Open space, no size limit
Data Storage	20,000 pcs of samples
Interface	USB
Power Supply	DC12V (110-240V)
Working Temperature	+10 – 40 °C (+50 – 104 °F)
Storage Temperture	0 – 50 °C (+32 – 122 °F)
Size	L x W x H: 310mmX215mmX540mm
